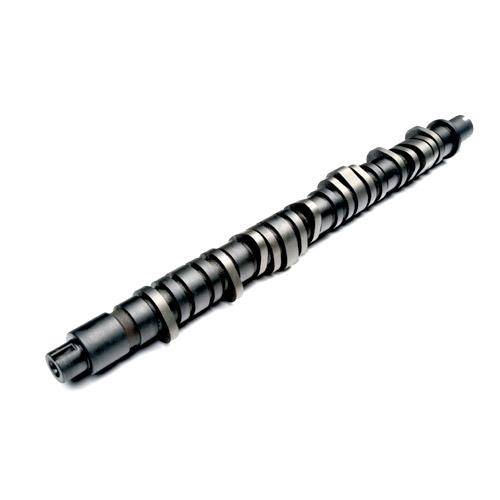

BLOX Racing 96-00 D-Series Camshaft Stage 1 IN .405in Lift / Ex .383in Lift Upgr. Valvetrain Req.

BXCM-20103-Y1
Not Available
Availability: Item usually ships within 24 hours
Was: $401.00
Sale: $320.80
Save: 20%
Save: $80.20

Description

Camshaft Stage 1 - 96-00 SOHC VTEC - In .405: lift / Ex .383" lift

BLOX Racing camshafts are designed and manufactured using OEM-spec, chill-cast camshaft cores. BLOX Racing manufactures camshaft cores specifically tailored to the D16Z6 and D16Y8 engines. MAY BE USED WITH Z6 WHEN USING BLOX CAM GEAR

Stage 1 Camshafts:
Ideal for stock to mild engine builds.
Upgraded valvetrain is not necessary but is always recommended.

Stage 2 Camshafts:
Ideal for mild to highly modified engine builds.
Upgraded valvetrain is required. Head porting is HIGHLY recommended.

Stage 3 Camshafts:
Ideal for highly modified to full race engine builds.
Upgraded valvetrain, cylinder head machining + porting, high compression pistons, and ECU tuning are ALL required.
Stage 1 Cam Specs @ 0.050"

  • INTAKE: 232� / 0.253� (Gross lift: 0.405")
  • EXHAUST: 211� / 0.213� (Gross lift: 0.383")
  • Stage 1 Spec Sheet


    • Stage 2 Cam Specs @ 0.050"
  • INTAKE: 242� / 0.268� (Gross lift: 0.429")
  • EXHAUST: 217� / 0.242� (Gross lift: 0.436")
  • Stage 2 Spec Sheet


    • Stage 3 Cam Specs @ 0.050"
  • INTAKE: 247� / 0.276� (Gross lift: 0.442")
  • EXHAUST: 230� / 0.255� (Gross lift: 0.459")
  • Stage 3 Spec Sheet

    • ADDITIONAL INFORMATION

    BLOX Racing 96-00 D-Series Camshaft Stage 1 IN .405in Lift / Ex .383in Lift Upgr. Valvetrain Req.

    Not CARB legal: Not for sale or street use in CA & CARB states.

    FITMENT NOTES

    None
