PRL Honda / Acura K24Z RSX Type-S PRB Oil Filter Block-Off Plate

When building the K24Z motors like the 9th Gen Civic Si and TSX to turn out big power and 8000+ rpms the factory oiling system becomes inefficient and problematic due to the balance shafts the OEM oil pump uses.

The most common and cost-effective solution to this is swapping in the Acura RSX Type-S PRB oil pump to eliminate the balance shafts and better supply oil.

This kit is required to block-off the factory oil filter housing location at the bottom of the K24Z block when doing the a PRB/Type-S oil pump swap and relocates the filter location to the top of the block like the rest of the K-Series motors.

Note: The Factory K24Z Style Oil PUmp Must Be Swapped to a PRB Style Oil Pump when using this block off Plate. Not doing so will result in the loss of all oil pressure

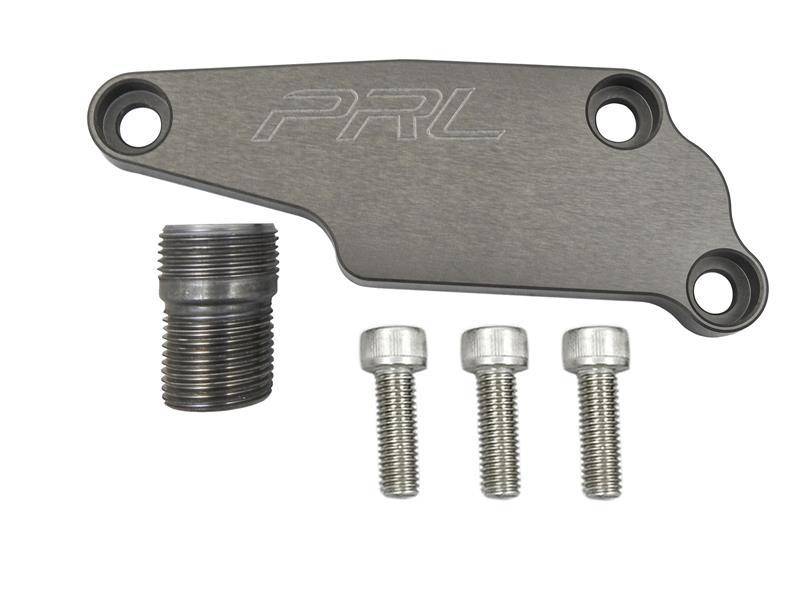

Kit Includes:

• Oil Pump Block-Off Plate
• 2 OEM Honda O-Rings
• 3 Stainless Steel Socket Head Cap Screw Bolts
• OEM Honda Oil Filter Holder

ADDITIONAL INFORMATION

title: Honda / Acura K24Z RSX Type-S PRB Oil Filter Block-Off Plate PRL Motorsports
filter_type:
liter:
eo_number:
finish_l:
material_l:
sold_as: Each
warranty:
vehicle_type: Car
offset:
universal: No
prop_65_warning: CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
country_of_origin: USA
color_l:
wheel_size:
bolt_pattern:
hub_bore_diameter:
shape:
location:

FITMENT NOTES

None
