CSF Porsche 955/957 Cayenne / Audi Q7 / VW Touareg Heavy-Duty Performance Radiator

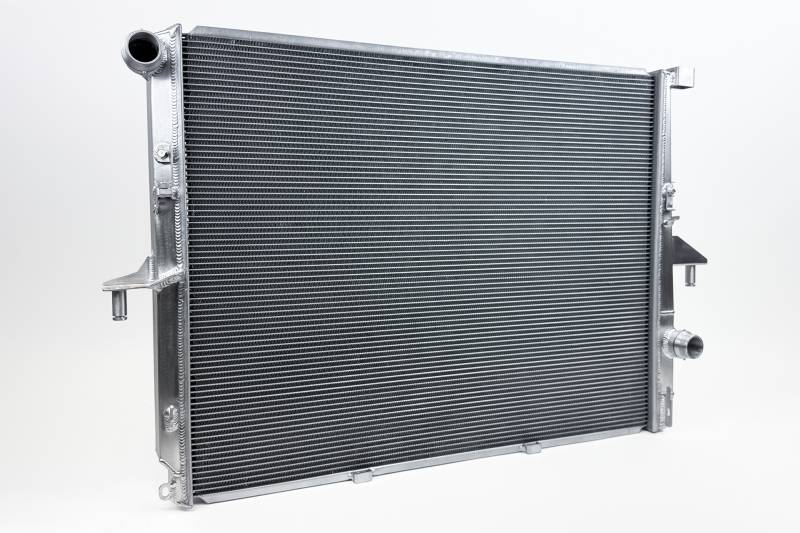

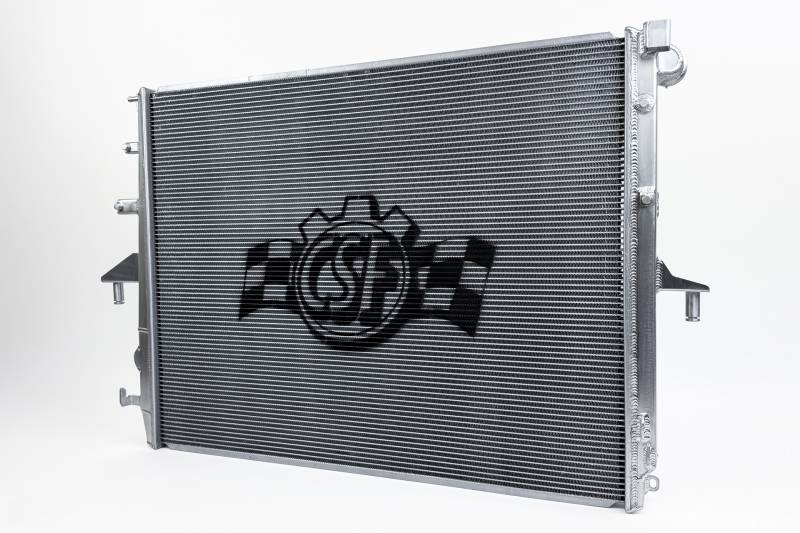

Porsche 955/957 Cayenne High-Performance All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your Cayenne. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

CSF has a long and successful track record with Porsche cooling systems. From Intercoolers and Radiators for newer water-cooled models to Oil Coolers for the Air-Cooled classics CSF does it all. CSF also produces the most popular and widely used Performance Radiators for a variety of Off-Road applications. Therefore you can be confident that you will be getting the best radiator possible. In addition this new 955/957 Cayenne Radiator features CSF's latest Ultra-Efficient 5mm fin cooling technology. The new fin technology increases the heat transfer area over a traditional radiator by 20-25%.; The original OE radiator from Porsche is a plastic tank radiator with a single row aluminum core design. While this is generally accepted as good quality and durable it just isn't enough for the Cayenne. The 955/957 is notorious for having cooling issues. Just driving down the road on a hot day can overheat the engine and off-roading and towing/hauling is much harder on the cooling system. On top of that these SUVs are 15-20 years old now. Those still running the original radiator have definitely lost some cooling efficiency due to bend/damaged fins and tube clogging. Needless to say CSF had a lot of issues to address while designing this new radiator.; The CSF radiator features the latest 5mm fin technology. The smaller fin height significantly increases the heat exchange surface area improving overall cooling efficiency and recovery. A larger 2-Row 42mm aluminum core increases the fluid capacity of the radiator and improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition the ultra-efficient multi-louvered fins maximize airflow through the core for the best possible performance.; The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF radiator mounts in the factory location and requires no modifications or cutting to install.; The main testing was performed at Loveland Pass just outside of Denver with two similarly setup 955 Cayennes. Similar miles same size tires and both equipped with winches lights and other exterior accessories. One was equipped with the CSF Radiator the other with the OE Radiator. Testing showed a steady 18-20 deg F differential between the CSF and OE Radiator equipped vehicles. Both started out at 186.8 deg F (86 deg C) with the OE Radiator ending at 212 deg F (100 deg C) and the CSF Radiator ending at 194 deg F (90 deg C). These are very impressive real world results on the earlier prototype model.

2-Row 42mm Ultra-High-Performance Core
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Cooling Tubes with CSF's Exclusive B-Tube Technology
New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
100% All Aluminum TIG-Welded Construction
Hand Brushed Satin Finish
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
Individually Leak and Pressure Tested
2-Year Limited Warranty

ADDITIONAL INFORMATION

Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 710mm
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 42mm
Core Width: 551mm
Down Flow Or Cross Flow Type: Cross Flow
Finish/Color: Satin
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Quick Connect
Inlet Diameter: 38.5mm
Inlet Location: Top Left
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Quick Connect
Outlet Diameter: 38.5mm
Outlet Location: Bottom Right
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No
Title: Porsche 955/957 Cayenne High-Performance All-Aluminum Radiator

Associated Comments: The CSF #7227 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2003-2010 Porsche Cayenne
2004-2010 Volkswagen Touareg
2007-2015 Audi Q7
