CSF 16-19 Ferrari 488 GTB/Spider 19-20 Pista High Performance Intercooler System - Raw

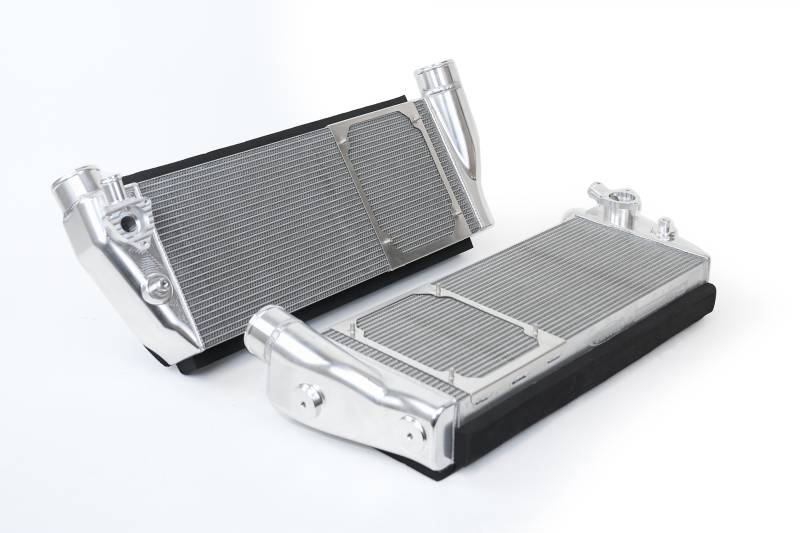

Ferrari 488 / Pista / F8 Twin Intercooler Set - Raw Billet

The CSF by PWR 488/F8 Twin Intercooler Set features Formula-1 grade cores which offer the greatest reduction in IATs and help eliminate heat soak. The Billet Aluminum construction offers the greatest strength and durability possible.

With multiple tunes available for the Ferrari 488/Pista/F8 there was an obvious demand for upgraded cooling systems. A big limiting factor in tuning has been high Intake Air Temperatures (IATs) produced by the turbos which already generate around 35 PSI of boost from the factory.; The Ferrari 488/Pista/F8 Intercoolers were carefully designed and engineered to fit exactly like the OEM units they replace. The installation uses all the factory mounting points shrouds and fans for a true "drop-in fitment". No cutting or other modifications are required. CSF pre-installs a high density foam to seal the area around the intercoolers just like the factory units. One of the challenges of designing a true drop-in system is the size limitations. While most aftermarket intercoolers achieve a good percentage of their improved efficiency with increased size the CSF by PWR Intercoolers rely on an ultra efficient core. PWR manufactures and uses these same cores on the intercoolers it supplies for the majority of Formula-1 race teams.; The intercooler cores are spec'd out by CSF and custom built by PWR. Featuring two rows of rolled cooling tubes with inner fins these cores make for the most efficient intercoolers available. Because of this they are able to eliminate heat soak and lower IATs much more efficiently than traditional Bar & Plate or Tube & Fin designs. This gives us maximum performance for extended periods of time under demanding driving conditions and for vehicles with increased power levels through modifications and tuning.; The CSF Intercoolers feature 100% TIG-welded machined billet aluminum end tanks. This feature is not only aesthetically pleasing but also offers improved longevity and durability. The CNC machined billet end tanks are ready to withstand increased boost pressures from higher performance tunes as well as upgraded turbochargers.; The CSF #8210 comes in a raw billet aluminum finish. Also available in Thermal Black Heat Dispersion (CSF #8210B).

Sold as a pair (Left & Right Intercoolers)
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
High density foam installed for OEM Fit & Finish
Integrated OEM Style Fan Shroud
True Plug-and-Play "Drop-in Fit" Installation - Requires Absolutely No Modifications
R&D and Performance Testing by Industry-Leading Tuning Companies M-Engineering World Motorsports and Voodoo Design
Eliminates Heat Soak and Lower Intake Air Temperatures (IATs) for Maximum Performance in High-Performance and Race Conditions
Formula-1 Performance Grade Cores by PWR (2-Row Cores features Rolled Tubes w/ Inner Fins)
100% TIG Welded CNC Machined Billet End Tanks for Maximum Strength & Durability
Made in the USA at PWR North America
OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components
Precision machined integrated BPV/BOV connection

ADDITIONAL INFORMATION

Color: Raw Billet Aluminum
Core Color: Raw Aluminum
Core Material: Aluminum
Core Row Quantity: 2
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Tank Material: Billet Aluminum
Installation Type: Drop-In Fit Installation
Mounting Hardware Included: No
Outlet Fitting Gender: Male
Prop 65 Yes/No: No
Title: Ferrari 488 / Pista / F8 Twin Intercooler Set - Raw Billet
Type: Air-to-Air
Universal Or Specific Fit: Specific

Associated Comments: The CSF #8210 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2016-2019 Ferrari 488 GTB
2016-2019 Ferrari 488 Spider
2019-2021 Ferrari 488 Pista
2019-2021 Ferrari 488 Pista Spider
2020-2022 Ferrari F8 Spider
2020-2022 Ferrari F8 Tributo
