CSF 84-88 Mercedes-Benz W201 190E 2.3L - 16 w/ A/C High Performance Aluminum Radiator

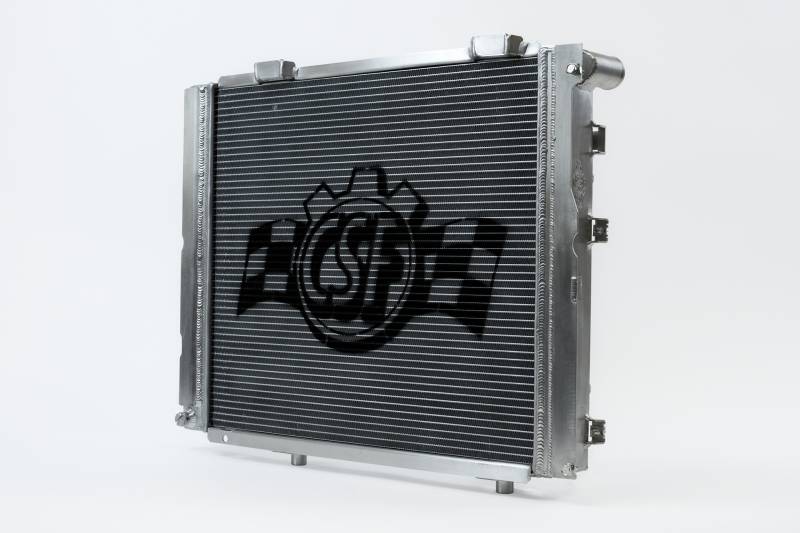

Mercedes 190E 2.3-16/2.5-16 Aluminum High-Performance Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your 190E. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

The Mercedes 190E 2.5-16 Evolution II brought Mercedes-Benz its first DTM title in 1992. This win cemented the 190E's place in automotive history and further fueled the Mercedes BMW rivalry. It is hard to say if the 190E is better than the E30 M3 but these days it is just as desirable. With more people seeking to restore these German classics the major roadblock can be the radiator which Mercedes no longer makes. CSF was able to procure one of the original radiators and design a new All-Aluminum OEM+ version. This new radiator from CSF is made with the exacting standards of purists seeking to restore their 190E. In addition the High-Performance core gives the cooling performance needed for enthusiasts who plan to use their 190E in motorsports or simply enjoy a lot of spirted driving.; The Mercedes 190E 2.3-16 / 2.5-16 (with factory equipped A/C) Radiator development began when a Mercedes specialty shop reached out to CSF. FlieBen had been looking for a quality radiator option since Mercedes discontinued the originals and naturally turned to "The Cooling Experts". CSF is also working with FlieBen on development of a radiator for the 190E 2.3-16 / 2.5-16 without factory equipped A/C.; The original OE radiator from Mercedes was a plastic tank with a single row aluminum core design. While this is generally accepted as good quality and durable heat exchanger technology has progressed significantly over the decades since these cars were released. Older high-performance vehicles require the best possible cooling systems and can greatly benefit from improved cooling efficiency. Anyone who has restored/updated a classic car knows the value of having updated parts that are as efficient as possible.; The CSF radiator features a 2-Row 42mm aluminum core that not only increases the fluid capacity of the radiator but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. With nearly double the number of cooling fins and tubes the CSF Radiator will outperform the OEM unit by a significant margin. In addition the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The radiator mounts in the factory location and requires no modifications or cutting. The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions.; The 190E 2.3-16 and 2.5-16 both originally came equipped with a clutch style mechanical fan. While these old school fans function just fine many owners like to upgrade to modern electrical fans. To make this conversion easier CSF includes mounting brackets that work with 16 inch SPAL fans. Both the low profile SPAL #30100400 and medium profile SPAL #30101516 will bolt onto the brackets. Please note you will need a fan controller (not included) to use an electric fan on the 190E.; For those interested in removing their factory AC condenser in favor of an oil cooler CSF added threaded bolt inserts (M8 x 1.25) for mounting an oil cooler. You'll need to fabricate your own brackets but we recommend using the CSF #8110 (Dual-Pass) or 8111 (Single-Pass) Universal Oil Cooler. This is mainly targeted towards track/race applications. However anyone who has already removed or plans to remove the factory AC system can benefit from a larger oil cooler.

2-Row 42mm Ultra-High-Performance Dual Pass Core
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.

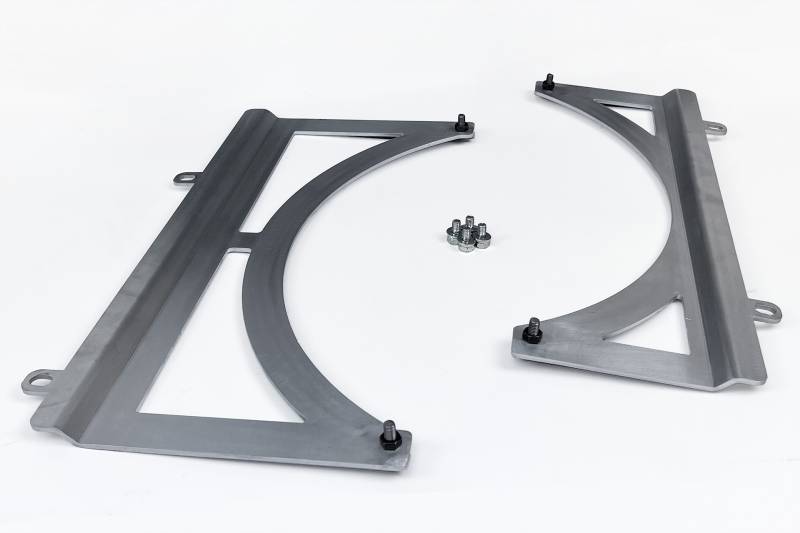

Includes CNC Cut Fan Mounting Brackets for a 16 inch SPAL Fan (Low Profile SPAL Fan PN: 30100400 - Medium Profile SPAL Fan PN: 30101516)
2-Year Limited Warranty
Cooling Tubes with CSF's Exclusive B-Tube Technology
6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
100% All Aluminum TIG-Welded Construction
Satin Finish
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
Individually Leak and Pressure Tested

ADDITIONAL INFORMATION

ADD-ON: 8111
Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 490mm
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 42mm
Core Width: 450mm
Down Flow Or Cross Flow Type: Cross Flow
Finish/Color: Satin
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 35mm
Inlet Location: Top Left
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 35mm
Outlet Location: Bottom Right
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No
Title: Mercedes 190E 2.3-16/2.5-16 Aluminum High-Performance Radiator

Associated Comments: The CSF #7220 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

1986-1987 Mercedes-Benz 190E
