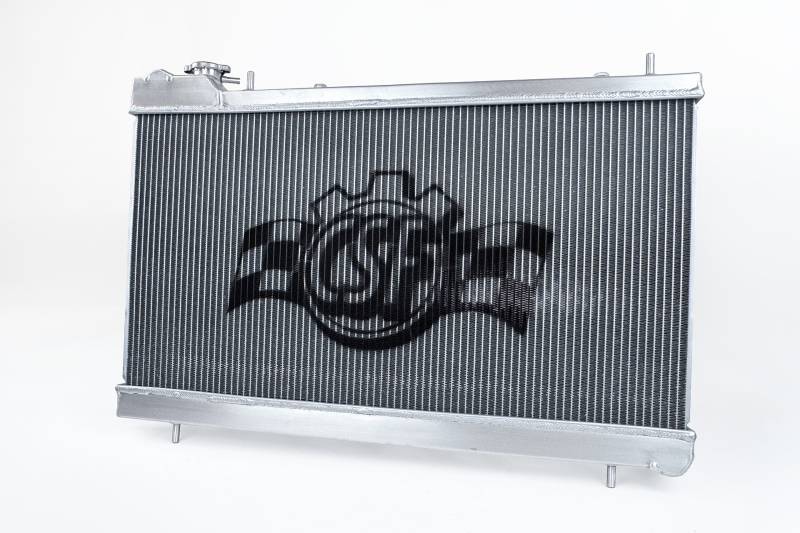

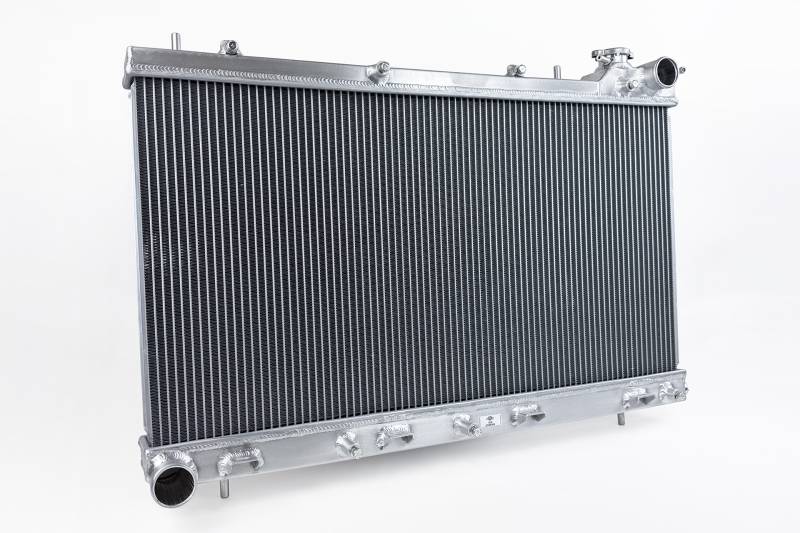

CSF 06-08 Subaru Forester XT Limited (MT Trans Only) High-Performance All-Aluminum Radiator

2nd Gen Subaru Forester XT (MT) High-Performance All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your Forester XT. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

CSF has long been one of the most popular manufacturers for High-Performance Subaru Radiators. This history includes making many private label oil coolers intercoolers and more for some of the most popular Subaru Tuning Companies. So whether you are racing on track rally racing in the dirt overlanding or just doing some spirited driving through country roads a high-performance radiator will help keep your Forester XT running at optimal temperatures.; Having a High-Performance Radiator also becomes very important when converting from a factory style top mount intercooler to a front mount intercooler system. Moving the intercooler in front of the radiator restricts airflow and increases the temperature of air flowing through it. These factors are often overlooked but you need to compensate for both air restriction and higher air temperatures flowing through the radiator. The best solution is to upgrade to a CSF High-Performance Radiator.; The original OE radiator from Subaru is a plastic tank with a single row aluminum core design. While this is generally accepted as good quality and durable it is not the best option for high horsepower builds or hard driving. Also Turbo cars get hot and the EJ25 engine is no exception. Anything you can do to help keep coolant temps in check will improve the longevity of your engine and help the car run smoothly.; The CSF 42mm 2-Row aluminum core is more than double the size of the OEM core. A thicker core second cooling row and increased fluid capacity drastically improves the amount of heat the system can absorb and dissipate. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition the super-efficient multi-louvered fins maximize airflow through the core for the best possible cooling performance.; The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF radiator mounts in the factory location and requires no modifications or cutting.

2-Row - 42mm Ultra-High-Performance Core
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
2-Year Limited Warranty
Cooling Tubes with CSF's Exclusive B-Tube Technology
6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
100% All Aluminum TIG-Welded Construction
Hand Brushed Satin Finish
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
1.4 Bar High Pressure Radiator Cap with CSF embossed logo
Individually Leak and Pressure Tested

ADDITIONAL INFORMATION

Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 362mm
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 42mm
Core Width: 686.5mm
Down Flow Or Cross Flow Type: Down Flow
Finish/Color: Satin
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 40mm
Inlet Location: Top Right
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 40mm
Outlet Location: Bottom Left
Prop 65 Yes/No: No
Radiator Cap Included: Yes
Tank Material: Aluminum
Thermostat Included: No
Title: 2nd Gen Subaru Forester XT (MT) High-Performance All-Aluminum Radiator

Associated Comments: The CSF #7235 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2006-2008 Subaru Forester
