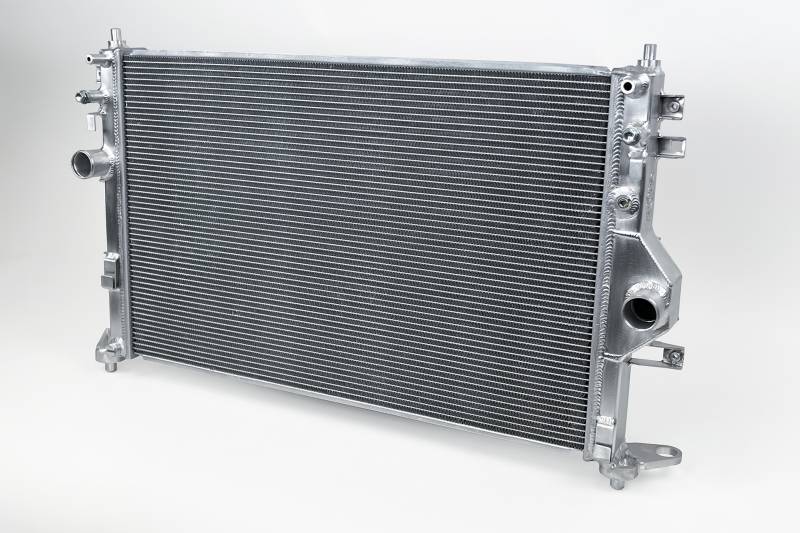

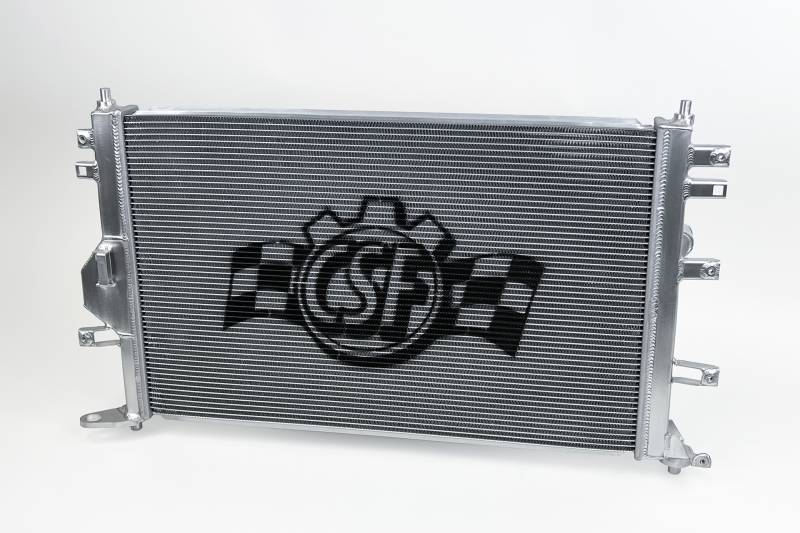

CSF 2023+ Toyota GR Corolla / 2020+ GR Yaris High-Performance Radiator

GR Corolla & GR Yaris High-Performance All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your GR Corolla & GR Yaris. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

CSF is well known for making the best Toyota cooling systems in the world. With years of feedback from Customers Race Teams and Development Partners CSF has the more experience with Toyota cooling systems than any other company in the world. With more and more people pushing the limits of the GR Corolla / GR Yaris the factory radiator has started showing its limitations. Bigger turbos cranking out more power create a lot more heat that needs to be dissipated. Furthermore the intercooler is mounted directly in front of the radiator so all the heat shed by that system runs through it. In racing applications this can be detrimental to engine coolant temperatures and risk sending your GR Corolla / GR Yaris into limp mode.; The original OE radiator from Toyota is a plastic tank with a single row aluminum core design. While this is generally accepted as good quality and durable there is always room for improvement. The 5mm fins on the OE radiator made the system fairly efficient for a factory unit. The core itself is one of the biggest limiting factors at only 27mm thick and a single cooling row.; With data collected by development partners and race teams CSF was able to design the ideal High-Performance replacement. The CSF radiator features the latest 5mm fin technology. These fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while still maintaining good airflow. The core is much larger than the factory featuring 2-Row 42mm aluminum core. This both increases the fluid capacity of the radiator and improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance.; The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The right side tank includes a pre-plugged 1/8th NPT temperature sensor port for those looking for more accurate coolant temperature readings. Pre-installed foam strips on top and bottom end plates improve sealing for better airflow over the radiator. The CSF radiator mounts in the factory location and requires no modifications or cutting.; Intercooler Clearance: The CSF x Jackson Racing Intercooler and some other aftermarket intercoolers utilize piping/hoses that are larger in diameter than the factory units. These larger intercooler pipes may have clearance issues with other aftermarket radiators. CSF carefully designed the end tanks on the #7233 with additional clearance for the CSF x Jackson Racing Intercooler while maintaining optimal volume and flow.; GR Corolla & GR Yaris Cross Compatibility: The engineering team at CSF spent extra time developing a radiator that could fit both the GR Corolla and GR Yaris. The factory radiator are very similar but not interchangeable. This cross compatibility is a huge advantage for Dealers and Distributors as they only have to stock one part for both applications.

2-Row 42mm Ultra-High-Performance Core
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Hand Brushed Satin Finish
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
Individually Leak and Pressure Tested
2-Year Limited Warranty
Cooling Tubes with CSF's Exclusive B-Tube Technology
New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
Pre-plugged 1/8th NPT temperature sensor port on right side tank
Pre-installed foam strips on top and bottom end plates for increased sealing
Recessed the lower
End tanks deigned with additional clearance for the CSF x Jackson Racing Intercooler or other aftermarket intercoolers with larger inlet and outlet pipes
100% All Aluminum TIG-Welded Construction

ADDITIONAL INFORMATION

ADD-ON: 8285
Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 624mm
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 42mm
Core Width: 388.5mm
Down Flow Or Cross Flow Type: Cross Flow
Finish/Color: Satin
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 35mm
Inlet Location: Middle Right
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 35mm
Outlet Location: Middle Left
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No
Title: GR Corolla & GR Yaris High-Performance All-Aluminum Radiator

Associated Comments: The CSF #7233 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2023-2024 Toyota GR Corolla
