CSF BMW E28 M5 (US and Euro) / E24 M635CSi / E24 M6 High-Performance Radiator

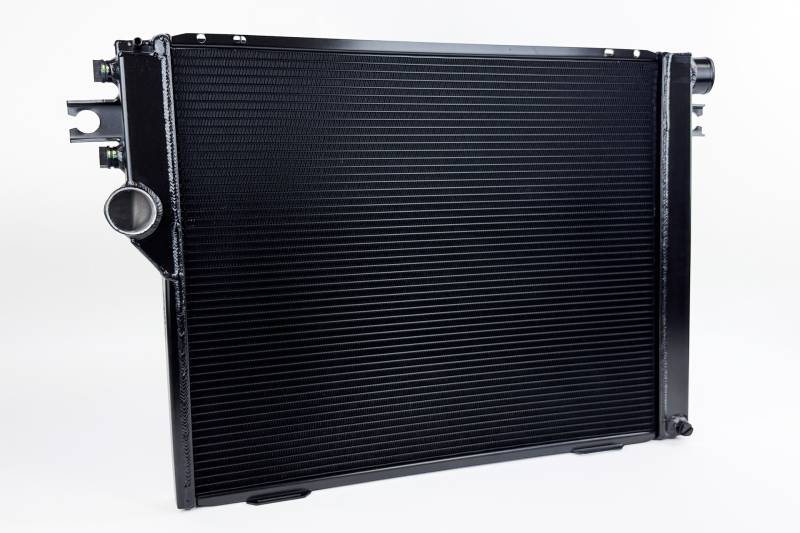

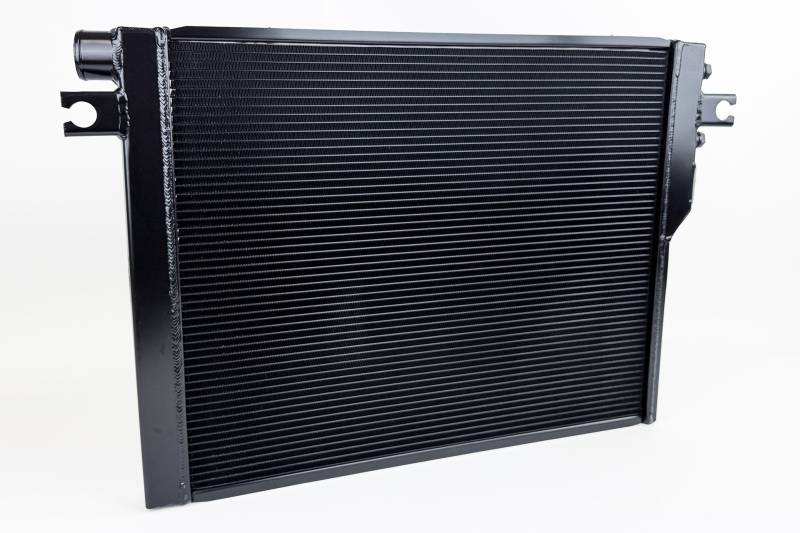

BMW E28 M5 / E24 M6/635CSi High-Performance All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your E28 M5 / E24 M6/635CSi. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

CSF teamed up with A/C Solutions to develop this new radiator. Their founder Austin Caccavo is a long time E28 enthusiast. He started the company after updating the A/C system on his own E28. The relationship began with CSF manufacturing A/C condensers for their upgrade and conversion kits which eventually led to Austin asking if CSF would make a High-Performance radiator for the E28 M5. Austin and his team worked closely with CSF's engineering team to develop this radiator for perfect fitment optimal performance and all the features E28/E24 owners could hope for.; The original OE radiator from BMW is an aluminum core with plastic tank design. While this is very common for OE radiators heat exchanger technology has progressed significantly over the decades since these cars were released. Older high-performance vehicles require the best possible cooling systems and can greatly benefit from improved cooling efficiency. Anyone who has restored/updated a classic car knows the value of having updated parts that are as efficient as possible.; The CSF radiator features a 1-Row 31mm aluminum core that improves heat dissipation. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. With 35% more cooling fins the CSF Radiator will outperform the OEM unit by a significant margin. In addition the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The radiator mounts in the factory location and requires no modifications or cutting.; The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions.; Those familiar with the radiator on the E28 M5 and E24 M6 know that the factory radiator does not come with a drain plug. While this isn't the end of the world it's definitely a nice thing to have if you're going to do a coolant flush pull the engine out etc.

1-Row 31mm Ultra-High-Performance Core
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
2-Year Limited Warranty
Cooling Tubes with CSF's Exclusive B-Tube Technology
6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
100% All Aluminum TIG-Welded Construction
Satin Black Finish for an OEM+ Look and Feel
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
Two M14x1.5 Temperature Sensor Ports on left side tank (Plugs Included)
Individually Leak and Pressure Tested

ADDITIONAL INFORMATION

Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 575mm
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness: 31mm
Core Width: 457mm
Down Flow Or Cross Flow Type: Cross Flow
Finish/Color: Black
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 44.5mm
Inlet Location: Top Right
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 44.5mm
Outlet Location: Center Left
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No
Title: BMW E28 M5 / E24 M6/635CSi High-Performance All-Aluminum Radiator

Associated Comments: The CSF #7232 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

None
