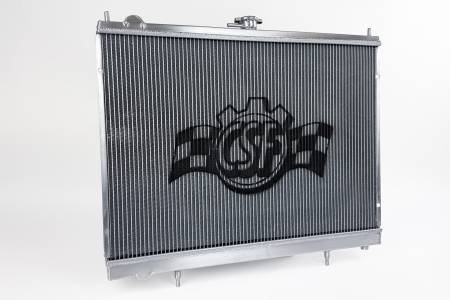

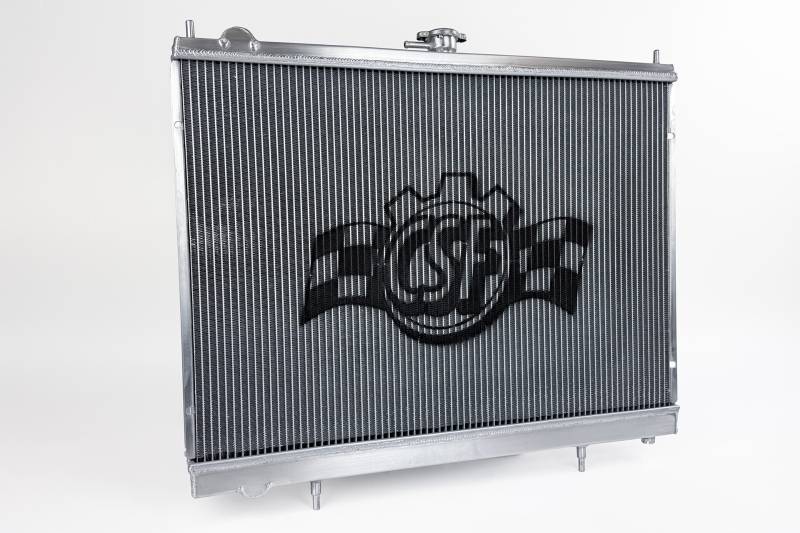

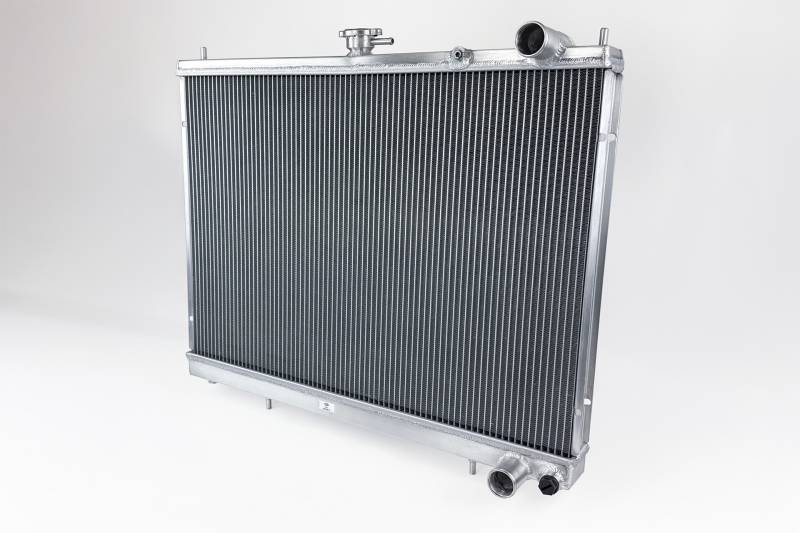

CSF 99-02 Nissan GT-R / GT R34 High-Performance All-Aluminum Radiator

R34 Skyline GT-R/GTS High-Performance All-Aluminum Radiator - Silver

CSF manufactures the most advanced and efficient radiator in the industry for your R34 Skyline. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

The inline 6 motors found in the R34 Skylines are quite robust. Whether you have a basic 2.0L RB20 or legendary RB26 you probably don't worry too much about engine reliability. The GT-R's RB26 is well known for making big power and being reliable while doing it. However power gains come at the cost of a lot of extra heat. While the factory radiator does a decent job keeping heat in check on stock setups it's always better to have more protection especially as you're making big power upgrades.; The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant's heat to dissipate from.; Each end tank is constructed from high-grade aluminum for strength and durability. The TIG-Welded construction further increases the overall strength. Each top end tank includes a pre-plugged 1/8th NPT and each bottom end tank includes M16x1.5P ports for temperature sensors. The CSF radiators mount in the factory location and require no modifications or cutting.; Each radiator includes a 1.4 bar high pressure cap with an embossed CSF logo. High pressure radiator caps raise the boiling point of coolant. This helps protect the system from boiling over at higher operating temperatures. While the radiator is designed to keep the system from reaching such temperatures it is always good to have extra protection for situations where the coolant gets too hot.

2-Row - 42mm Ultra-High-Performance Core
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Individually Leak and Pressure Tested
OE Location Fan Shroud Mounting Points
Hand Brushed Satin Finish
2-Year Limited Warranty
75 Cooling Tubes with CSF's Exclusive B-Tube Technology
6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Pins and OEM Style Inlet/Outlet
1/8th NPT Temp Sensor Port on Top End Tank
M16 x 1.5P temperature sensor port with pre-installed plug
100% All Aluminum TIG-Welded Construction
1.4 Bar High Pressure Radiator Cap with CSF embossed logo
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

ADDITIONAL INFORMATION

ADD-ON: 7231B
Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 450mm
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 42mm
Core Width: 644mm
Down Flow Or Cross Flow Type: Down Flow
Finish/Color: Satin
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 35mm
Inlet Location: Top Right
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 35mm
Outlet Location: Bottom Right
Prop 65 Yes/No: No
Radiator Cap Included: Yes
Tank Material: Aluminum
Thermostat Included: No
Title: R34 Skyline GT-R/GTS High-Performance All-Aluminum Radiator - Silver

Associated Comments: The CSF #7231 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

None
