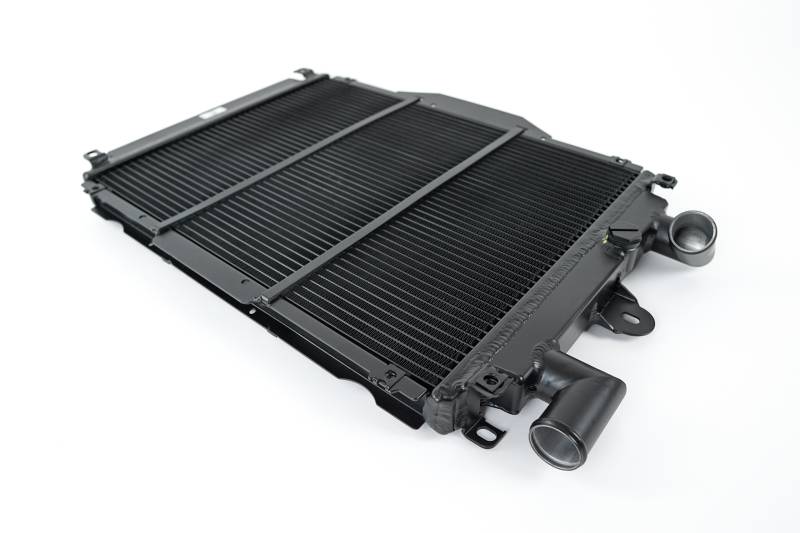

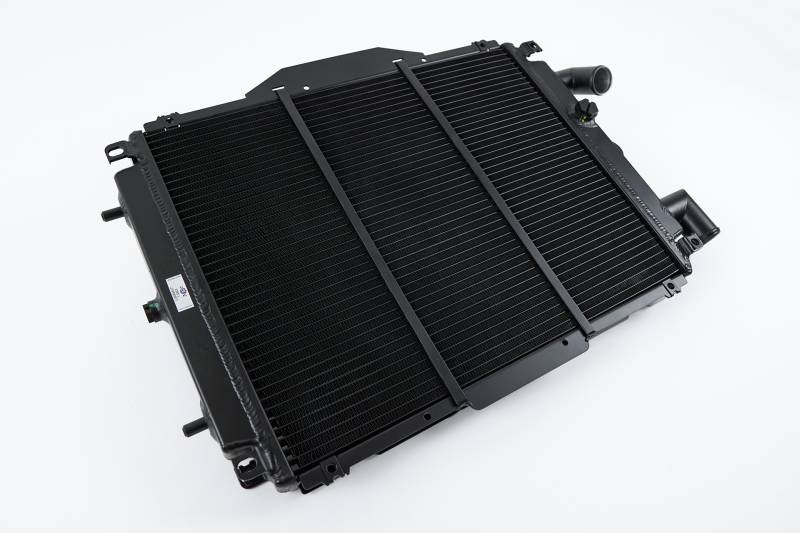

CSF Ferrari F355 High Performance All-Aluminum Radiator - Left

94-99 Ferrari F355 High-Performance All-Aluminum Radiator (LH)

CSF manufactures the most advanced and efficient radiator in the industry for your Ferrari F355. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

When initially designing these radiators there were several key features that CSF knew were important to the Ferrari community: OEM Fit & Finish Increased performance and improved reliability. The original F355 OE radiators from Ferrari feature aluminum cores crimped onto plastic end tanks. While generally accepted as good quality and durable this design is significantly weaker than the all-aluminum TIG welded design of the CSF Radiators. Anyone who has restored/updated a older car knows the value of having updated parts that are as efficient as possible.; The CSF radiator features a 1-Row 31mm aluminum core that not only increases the fluid capacity of the radiator but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. The 6.5mm super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. In addition CSF was able to fit 2 additional cooling tubes and rows of fins. The combination of TIG-Welded 100% All Aluminum construction and dual core straps increase the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. Additionally the satin black finish gives the radiator a clean OEM look and both radiators are a true Plug-and-Play "Drop-in Fit" application.

Single Row 31mm Ultra-High-Performance Dual Pass Core
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Individually Leak and Pressure Tested
OE Location Fan Shroud Mounting Points
2-Year Limited Warranty
Left Hand Side Radiator (CSF #7205 - Right Hand Side Radiator Sold Seperately)
Cooling Tubes with CSF's Exclusive B-Tube Technology
6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
100% All Aluminum TIG-Welded Construction
Satin Black Finish for OEM+ Look
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

ADDITIONAL INFORMATION

ADD-ON: 7205
Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 440mm
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness: 31mm
Core Width: 340mm
Down Flow Or Cross Flow Type: Down Flow
Finish/Color: Black
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 58mm
Inlet Location: Top Right
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 58mm
Outlet Location: Top Left
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No
Title: 94-99 Ferrari F355 (Left) High-Performance All-Aluminum Radiator

Associated Comments: The CSF #7206 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

1994-1996 Ferrari F355 Berlinetta
1994-1998 Ferrari F355 GTS
1996-2001 Ferrari F355 Spider
1998-1998 Ferrari F355 F1
1999-1999 Ferrari F355
