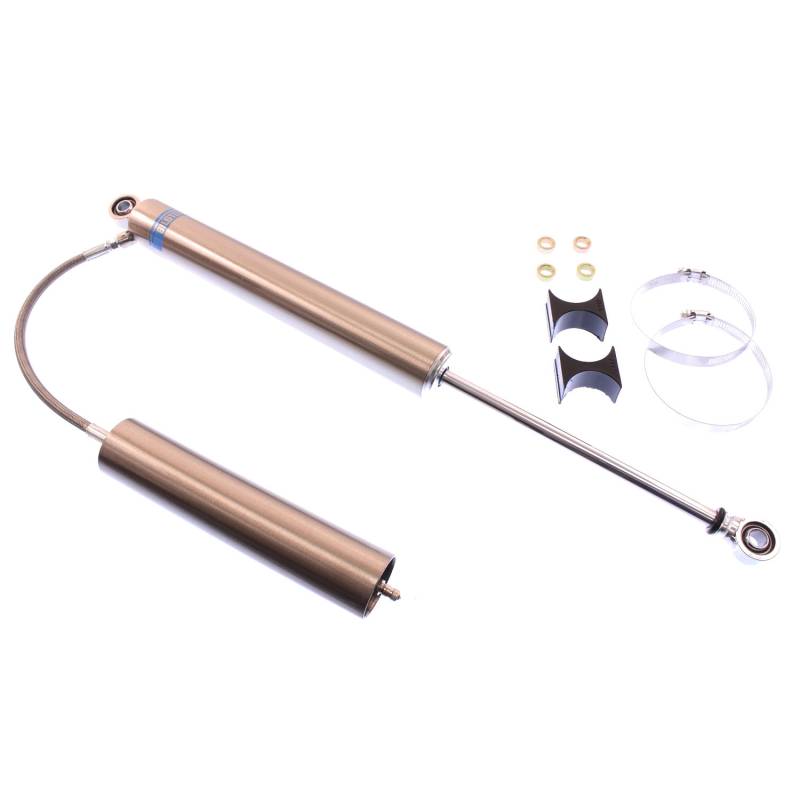

Bilstein Motorsport 14in. TRAVL RESVR SHK PTD 255/70 46mm Monotube Shock Absorber

Bilstein AK7114R04 M 7100 - Suspension Shock Absorber

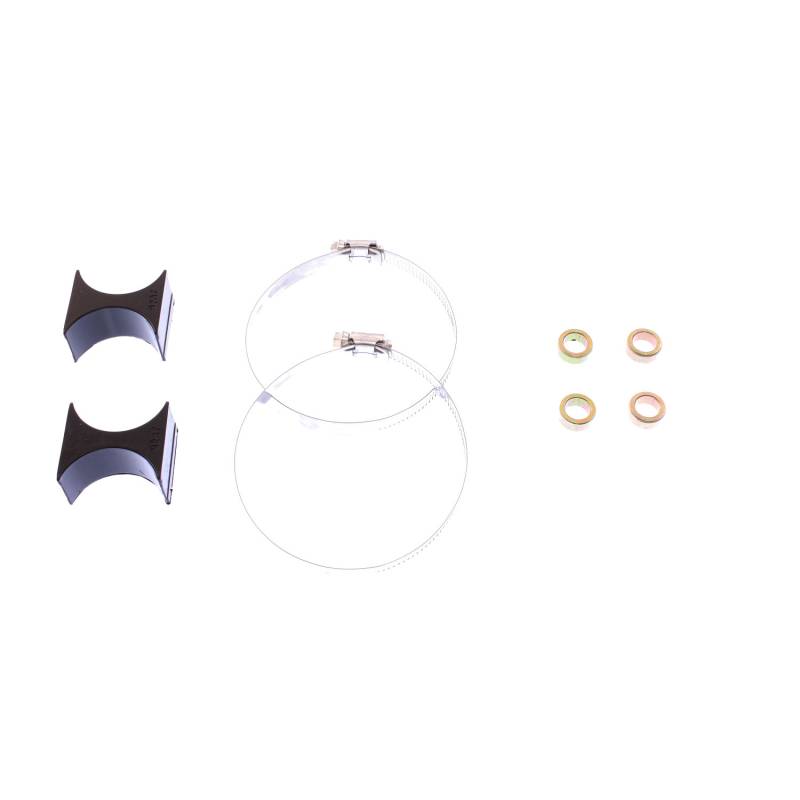

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with � inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

46mm monotube design ensures consistent fade-free performance in all conditions
Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
High-flow piston reduces harshness

ADDITIONAL INFORMATION

Bilstein Motorsport 14in. TRAVL RESVR SHK PTD 255/70 46mm Monotube Shock Absorber

Body Design: Smooth Body (Non-Coilover)
Body Diameter (ID): 46mm
California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN): 20.83
Collapsed Length (IN) Rounded: 21
Collapsed Length (MM): 529.1
Compression @0.52m/s: 700
Extended Length (IN): 35.22
Extended Length (IN) Rounded: 35
Extended Length (MM): 894.6
Finish: Nickel Plated with Clear Powder Coat
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Rebound @0.52m/s: 2550
Reservoir: Yes
Segment: Motorsports
Series: M 7100
Spring Seat Included: No
Title: Bilstein Shock Absorbers
Upper Mount Type: 1/2in Heim

FITMENT NOTES

No Applications
