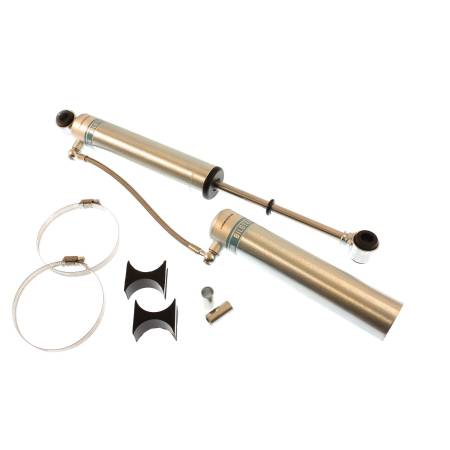

Bilstein 5160 Series 5165 Series 7.5in. Travel 170/60 46mm Monotube Shock Absorber

Bilstein 25-187861 B8 5165 Classic - Suspension Shock Absorber

Bilstein B8 5165 Classic remote reservoir shock absorbers are designed to be used on custom off-road vehicles in order to achieve the desired ride of your light truck or SUV. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom applications. All B8 5165 Classic shock absorbers come equipped with 5/8 inch eyelets with hour glass bushings on both ends. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting providing a clean low profile installation. B8 5165 Classic cremote reservoir shock absorbers will increase overall durability of your custom vehicle allowing you to conquer the harshest of off-road environments.

46mm monotube design ensures consistent fade-free performance in all conditions
Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Remote reservoir increases shock oil capacity for greater heat dissipation

ADDITIONAL INFORMATION

Bilstein 5160 Series 5165 Series 7.5in. Travel 170/60 46mm Monotube Shock Absorber

Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Body Diameter (ID): 46mm
Boot Included: No
California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN): 12.30
Collapsed Length (IN) Rounded: 12
Collapsed Length (MM): 312.4
Compression @0.52m/s: 575
Extended Length (IN): 19.72
Extended Length (IN) Rounded: 20
Extended Length (MM): 500.9
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 5/8in
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: 11-176015
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Rebound @0.52m/s: 1600
Reservoir: Yes
Segment: Light Truck
Series: B8 5165
Spring Seat Included: No
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 5/8in

FITMENT NOTES

No Applications
