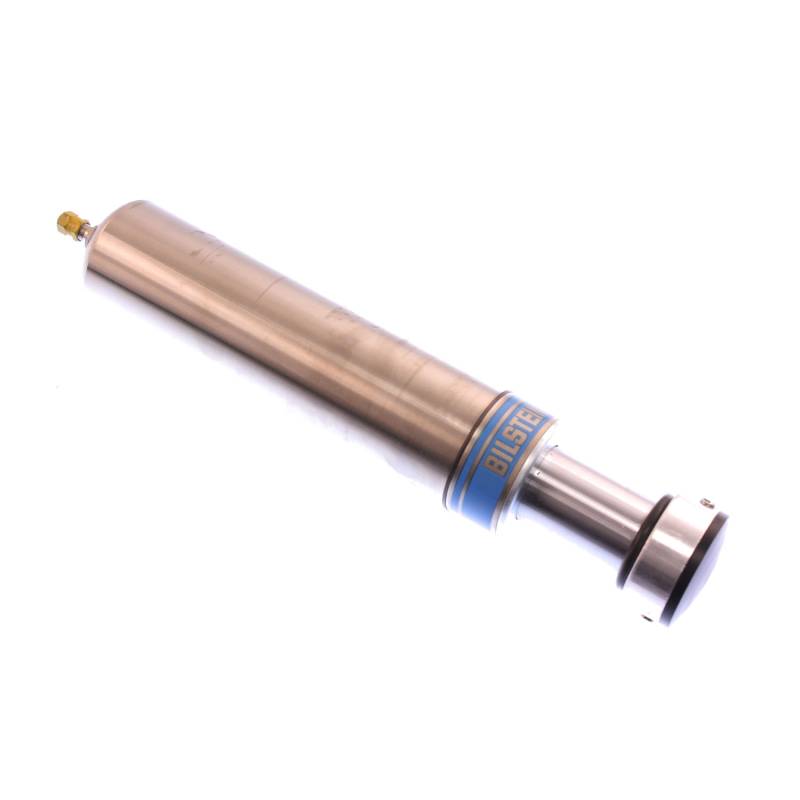

Bilstein 9100 Bump Stop Series 46mm Monotube Bump Stop

Bilstein F4-BE5-G722-M0 M 9100 (Bump Stop) - Suspension Bump Stop

Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.

Filled with technology perfected over 3 decades of off-road dominance
Monotube gas pressure design maximizes heat dissipation
Available for lifted truck custom truck rock crawling and off-road racing applications

ADDITIONAL INFORMATION

Bilstein 9100 Bump Stop Series 46mm Monotube Bump Stop

Body Design: Smooth Body (Non-Coilover)
Body Diameter (ID): 46mm
California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN): 9.61
Collapsed Length (IN) Rounded: 10
Collapsed Length (MM): 244.1
Compression @0.52m/s: Custom
Extended Length (IN): 11.47
Extended Length (IN) Rounded: 11
Extended Length (MM): 291.3
Finish: Nickel Plated
Internal Design: Monotube
Lower Mount Type: Special
Mount Type: Special
Optional Reservoir Clamp: N/A
PartType: Bump Stop
Prop 65 (Y/N): Y
Rebound @0.52m/s: Custom
Reservoir: No
Segment: Motorsports
Series: M 9100 (Bump Stop)
Spring Seat Included: No
Title: Bilstein Shock Absorbers
Upper Mount Type: Special

FITMENT NOTES

No Applications
