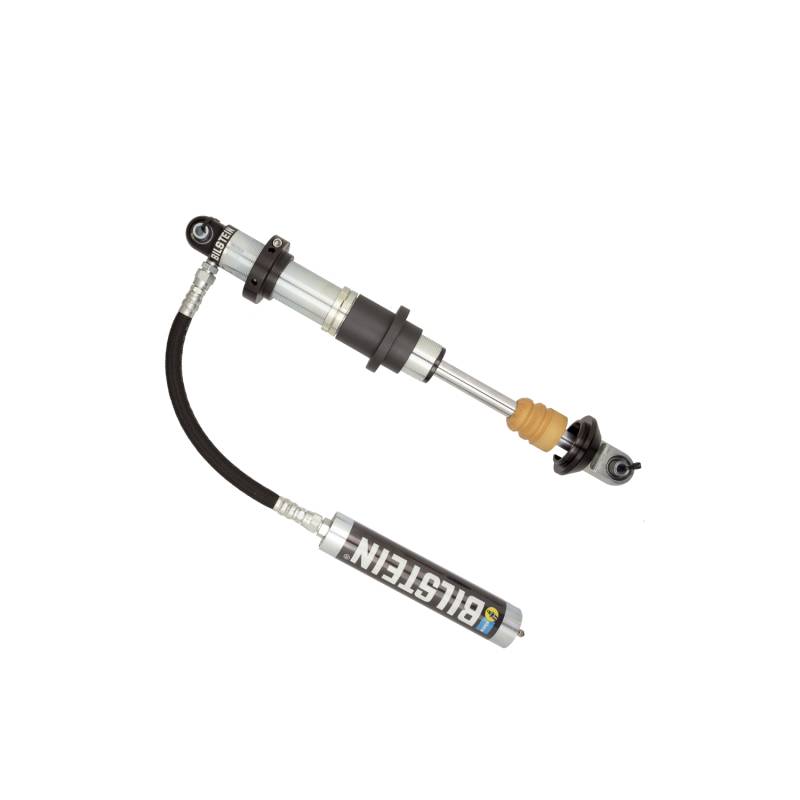

Bilstein 8125 Series 23in Extended Length 15in Collapsed Length 46mm Monotube Shock Absorber

Bilstein 33-225500 B8 8125 - Suspension Shock Absorber

Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths these performance coilovers are perfect for custom coilover suspension applications. Equipped with a competition designed 3-stage seal pack these coilovers withstand the harshest off-road environments. All B8 8125 coilovers include a 22mm hard chromed case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.

Available in 46mm and 60mm monotubes for consistent fade-free performance
Threaded body with dual-rate coilover hardware
Remote reservoir for greater resistance to heat and increased travel length

ADDITIONAL INFORMATION

Bilstein 8125 Series 23in Extended Length 15in Collapsed Length 46mm Monotube Shock Absorber

Body Design: Threaded Body Screw Top (Coilover)
Body Diameter (ID): 46mm
California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN): 15.00
Collapsed Length (IN) Rounded: 15
Collapsed Length (MM): 381.0
Compression @0.52m/s: 1000
Extended Length (IN): 23.00
Extended Length (IN) Rounded: 23
Extended Length (MM): 584.2
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye .5x1.5in
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: B4-KT1-Z315A00
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Rebound @0.52m/s: 2550
Reservoir: Yes
Segment: Motorsports
Series: B8 8125
Spring Seat Included: Yes
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye .5x1.5in

FITMENT NOTES

No Applications
