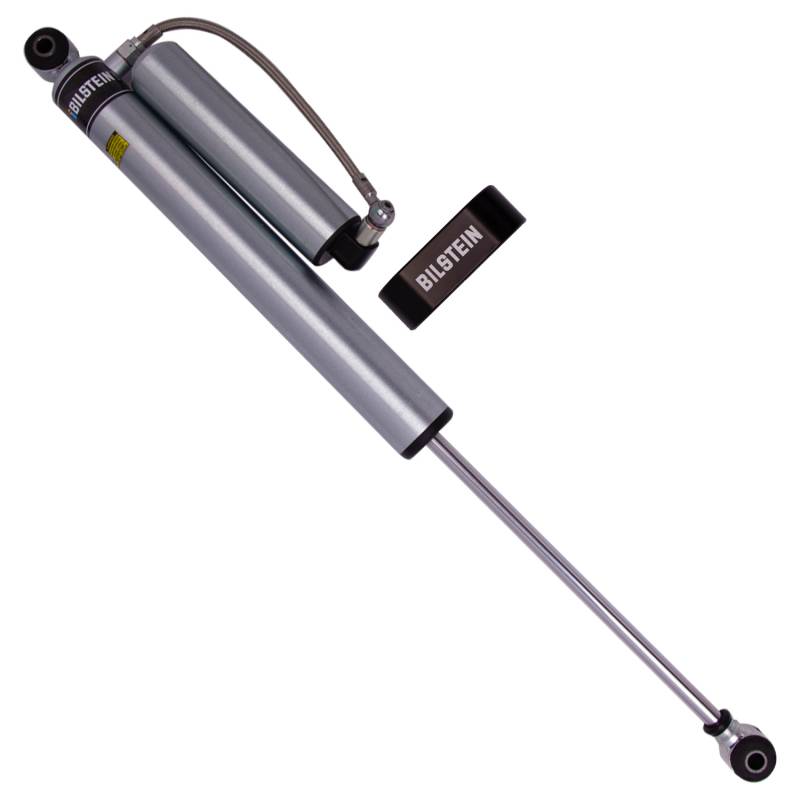

Bilstein 5160 Series 15-22 Ford F-150 4WD (0-2in Lift) Rear Shock Absorber

Bilstein 25-311372 B8 5160 - Suspension Shock Absorber

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

46mm monotube design ensures consistent fade-free performance in all conditions
Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Remote reservoir increases shock oil capacity for greater heat dissipation

ADDITIONAL INFORMATION

Bilstein 5160 Series 15-22 Ford F-150 4WD (0-2in Lift) Rear Shock Absorber

Adjustable Damping: Non-Adjustable

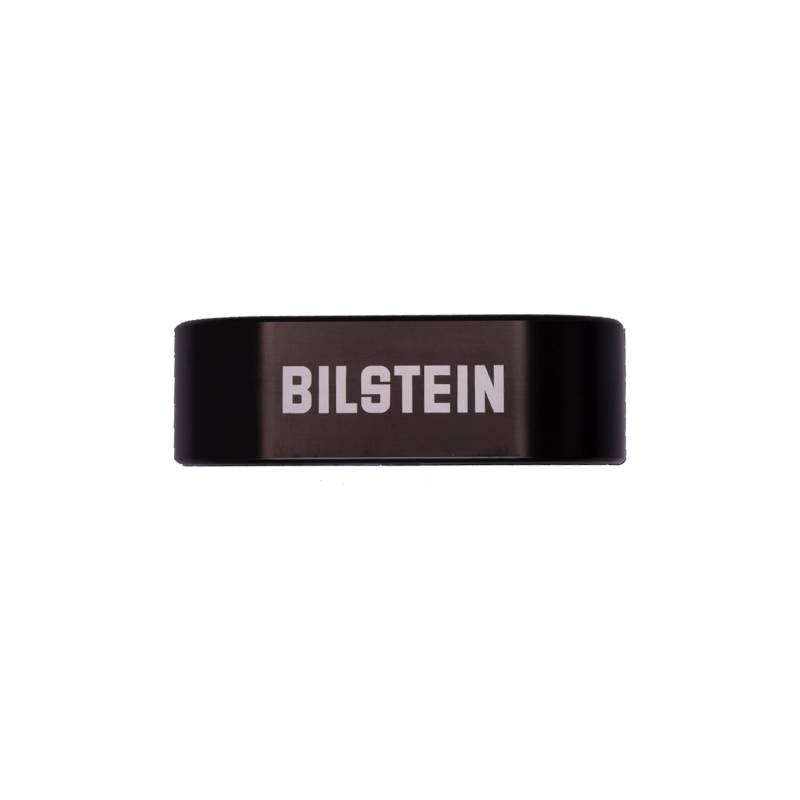

Billet Reservoir Clamp Included: Yes
Body Design: Smooth Body (Non-Coilover)
Body Diameter (ID): 46mm
Boot Included: No
California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN): 17.52
Collapsed Length (MM): 445.0
Extended Length (IN): 29.50
Extended Length (MM): 749.2
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 12mm
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Reservoir: Yes
Segment: Light Truck
Series: B8 5160
Spring Seat Included: No
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 12mm

FITMENT NOTES

Ford F-150 2024-2015
