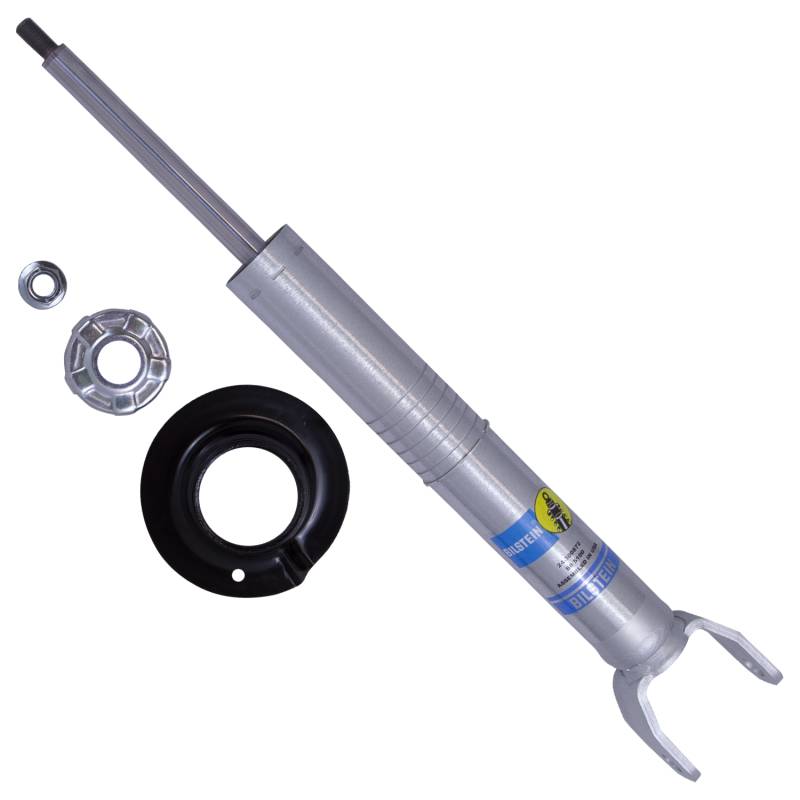

Bilstein 5100 Series 2019 Ram 1500 Front Shock Absorber

Bilstein 24-300872 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.� Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

46mm monotube design ensures consistent fade-free performance in all conditions
Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology
Adjustable spring seat offers 0-2.75in of lift depending on the application

ADDITIONAL INFORMATION

Bilstein 5100 Series 2019 Ram 1500 Front Shock Absorber

Adjustable Damping: Non-Adjustable
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter (ID): 46mm
Boot Included: No
California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN): 16.00
Collapsed Length (MM): 406.5
Extended Length (IN): 22.08
Extended Length (MM): 560.9
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Clevis
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Reservoir: No
Segment: Light Truck
Series: B8 5100 (Ride Height Adjustable)

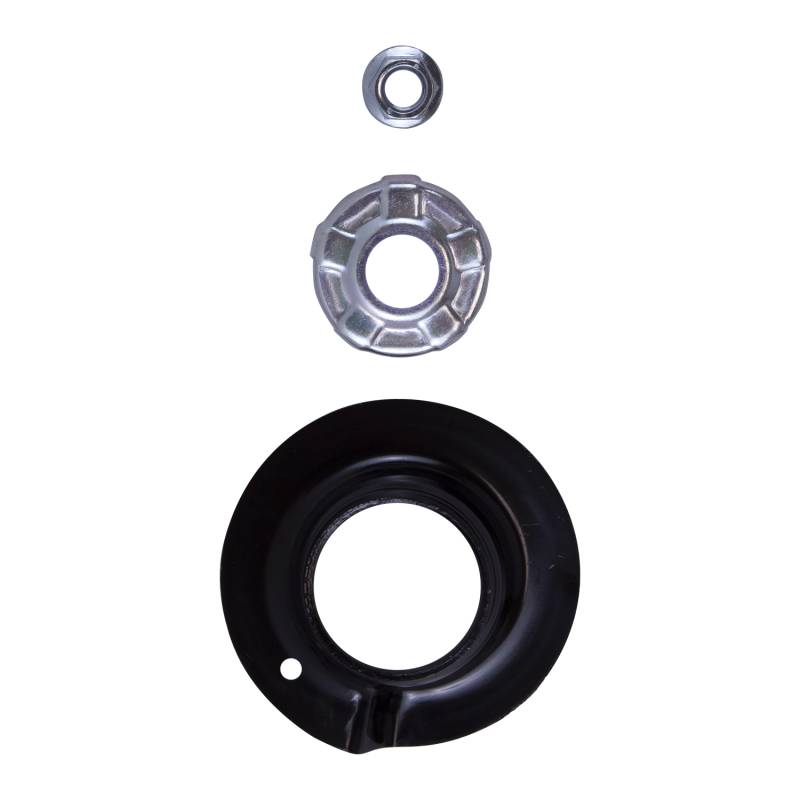

Spring Seat Included: Yes
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

FITMENT NOTES

Ram 1500 2024-2019
