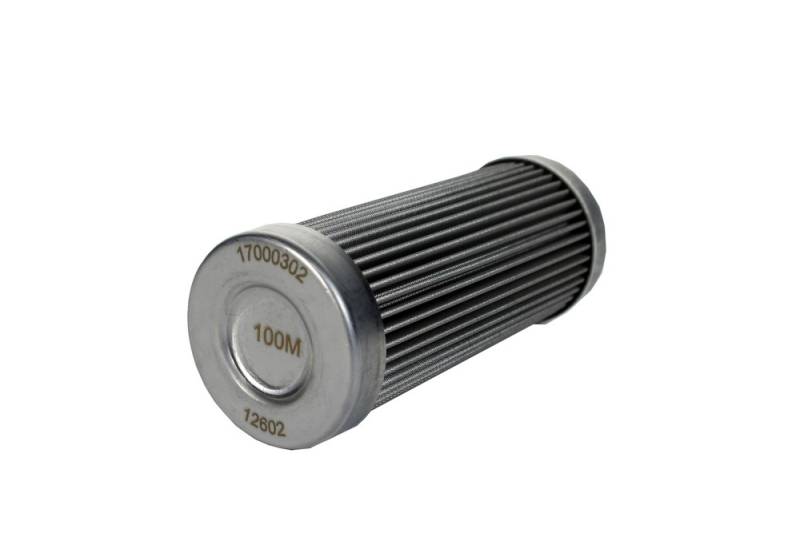

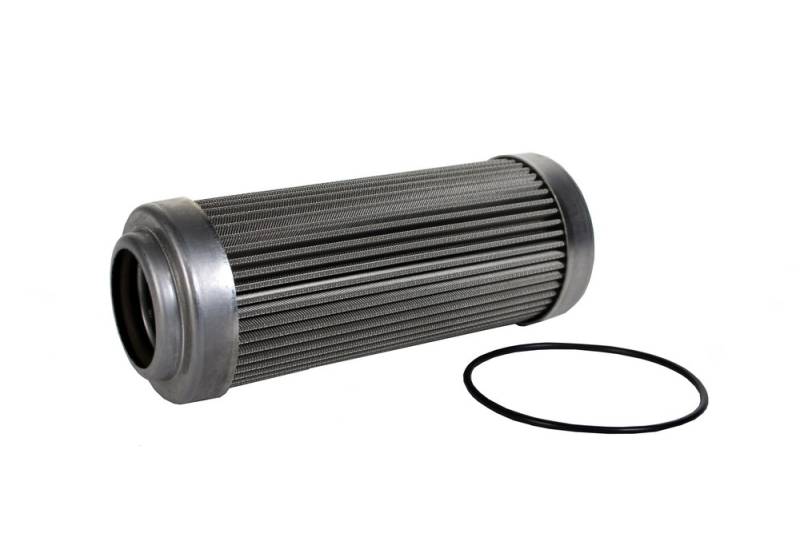

Aeromotive Replacement Pro-Series 100 Micron SS Element (for 12302 Filter Assembly)

Replacement Element, 100-m Stainless Mesh, for 12302/12309 Filter Assembly, Fits All 2-1/2" OD Filter Housings.

Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc. Approved for use in alcohol fuels including ethanol and methanol. Over 90-sq. inches of element surface area supports extreme flow while providing good service life. Cleanable 100-micron Stainless Steel mesh construction. Flow capacity of up to 1,600 GPH (26.6 GPM) with less than 1-PSI pressure drop. Supports up to 14,700 plus Flywheel HP, Forced Induction, on gasoline. Supports up to 10,600 Flywheel HP, Forced Induction on Ethanol. Supports up to 5,000 Flywheel HP, Forced Induction on Methanol. Ideal as a pre-pump filter with gasoline, ethanol and Methanol burning engines with medium to large Aeromotive fuel pumps from the Eliminator pump through the 6 Series Mechanical pump. Popular as a post pump filter with 12 Series (belt and hex driven) mechanical fuel pumps and Aeromotive Spur Gear Pumps up to 32 GPM.

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Material: Stainless Steel
Micron Rating: 100
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Title: Aeromotive 100-m Stainless Element: ORB-12 Filter Housings
Associated Comments: Pro Series 100-micron stainless steel replacement element. used for P/N 12302, 12332, 12309.

FITMENT NOTES

None
