AEM 340LPH 65mm Fuel Pump Kit w/ Mounting Hooks - Ethanol Compatible

65mm Body w/Hooks - Offset Inlet/340LPH@40psi/Not application specific

AEM's 340LPH E85-Compatible High Flow In-Tank Fuel Pumps feature robust internal construction that is designed to withstand the low lubricity characteristics of ethanol and methanol fuels, and are tested to work with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline.

The AEM 340LPH E85-Compatible High Flow In-Tank Fuel Pump is designed for in-tank mounting on high performance naturally aspirated and forced induction vehicles. It features a compact 39mm diameter that fits most applications and an offset inlet design that eases installation.

The 340LPH E85-Compatible High Flow In-Tank fuel pump includes a wiring harness, pre filter, end cap and rubber buffer sleeve. Every AEM 340LPH E85-Compatible Fuel Pump is tested to flow 340 lph at 40 PSI before it is packaged for sale.

TECHNICAL SPECS:

Weight: 12.5oz (354grams)

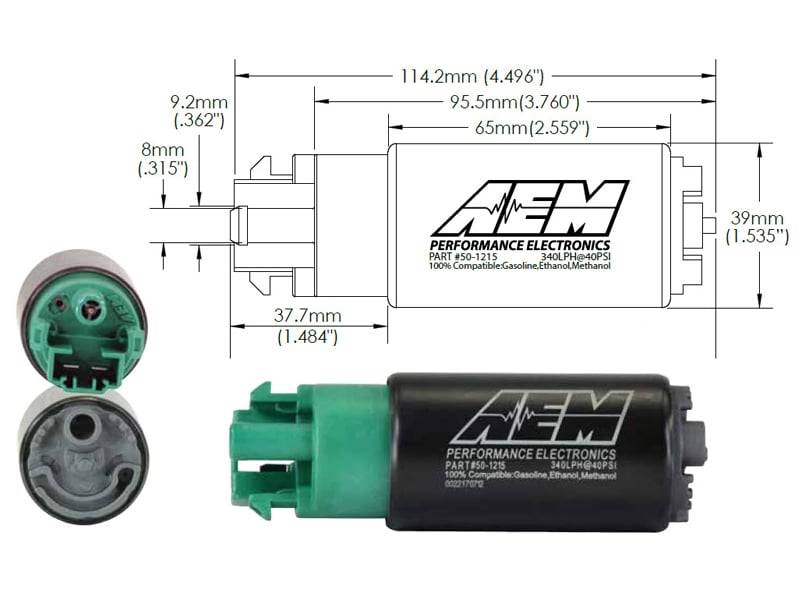

Outside Diameter: 39mm OD

External Materials: Black plated steel with laser etching

Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline

Outlet Fitting: 8 mm hose clamp. Offset

PRV Activation: 80 PSI

Impeller Design: Single Scroll Ceramic Turbine

VOLTAGE SPECS:

Connector Terminal: 6 mm Spade (pos/neg)

Min Voltage Input: 6 volts

Max Voltage Input: 18 volts

Current Draw (40 psi): 12 amps (13.5v)

Current Draw (80 psi): 15 amps (13.5v)

Fuse: 20 amps (13.5v)

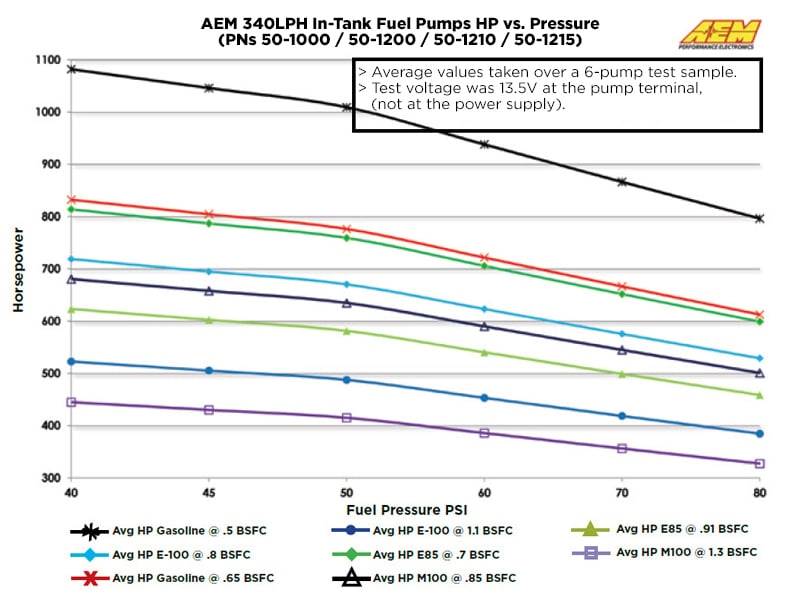

* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.

Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
Designed for high output naturally aspirated and forced induction EFI vehicles
Tested to flow 340 lph @ 40 PSI
39mm diameter fits most applications
Offset inlet design eases installation
Each pump individually tested

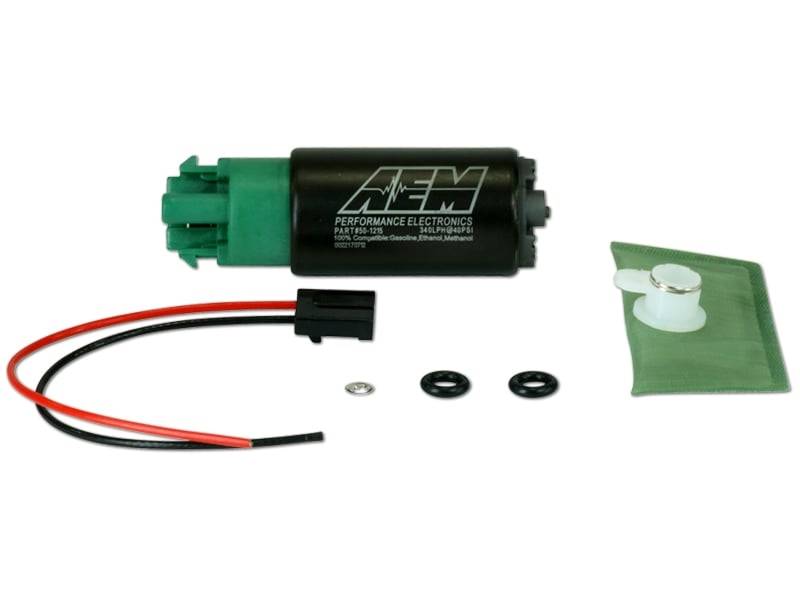

Kit includes fuel pump, rubber sleeve and end caps, pre filter and flying lead
In tank design

ADDITIONAL INFORMATION

AEM 340LPH 65mm Fuel Pump Kit w/ Mounting Hooks - Ethanol Compatible

Application: Universal
Brand: AEM
Category: Air and Fuel Delivery
Emission Code: 5
Free Flow GPH: 90
Free Flow LPH: 340
Fuel System: Carbureted, EFI
Fuel Type: E85, Gasoline, Methanol
Material: Steel
Product Type: Fuel Pump
Pump Body Color: Black
Sub Category: Fuel Pumps and Related Components
Warning: California Proposition 65
Warranty: 1 Year

AEM fuel pumps include a universal pre-filter which may not fit certain vehicle applications. Please refer to the OEM recommendations for filter replacement for your vehicle. Your vehicle's factory fuel pump wiring may not be adequate enough to handle the current draw of AEM's High Flow Fuel Pumps. Please refer to the Electrical Requirements section in the instructions document for proper wiring.
It is imperative to ensure that the polarity of the electrical plug in your tank is correct for your pump if you choose to use it. If it is not correct, you can either re-pin it or use the supplied plug.
Although AEM's High Flow Fuel Pumps are the same physical size as many OEM fuel pumps, they may not be appropriate for a specific application. You can consult the Vehicle Search function on our website to see whether a pump is recommended for your vehicle. The Vehicle Search function should be used as a reference only. It is imperative that you check the fuel pump sizing for your vehicle before purchasing an AEM High Flow Fuel Pump. AEM does not condone or approve of the modification of a tank to accommodate a High Flow Fuel Pump and cannot guarantee the pump's performance or operation if any modifications are made.

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

None
