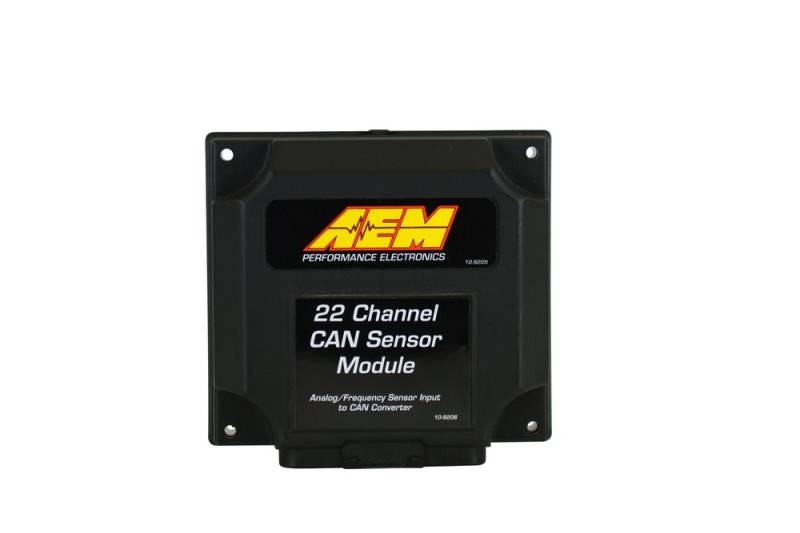

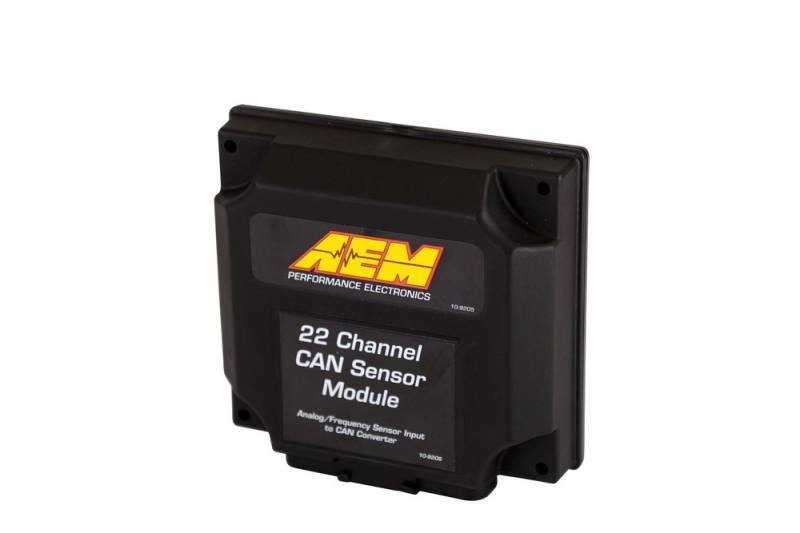

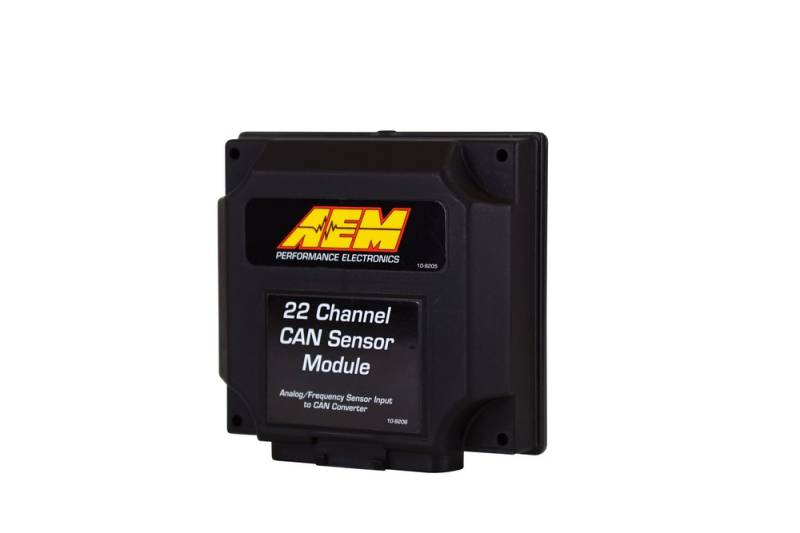

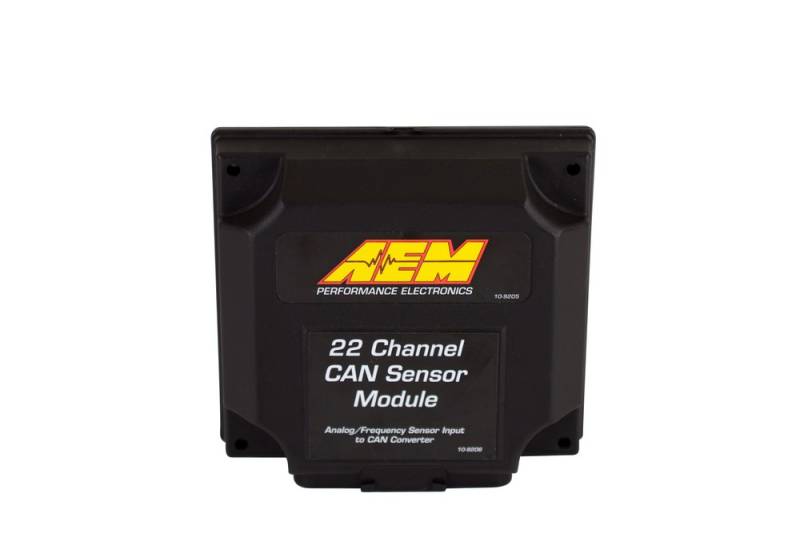

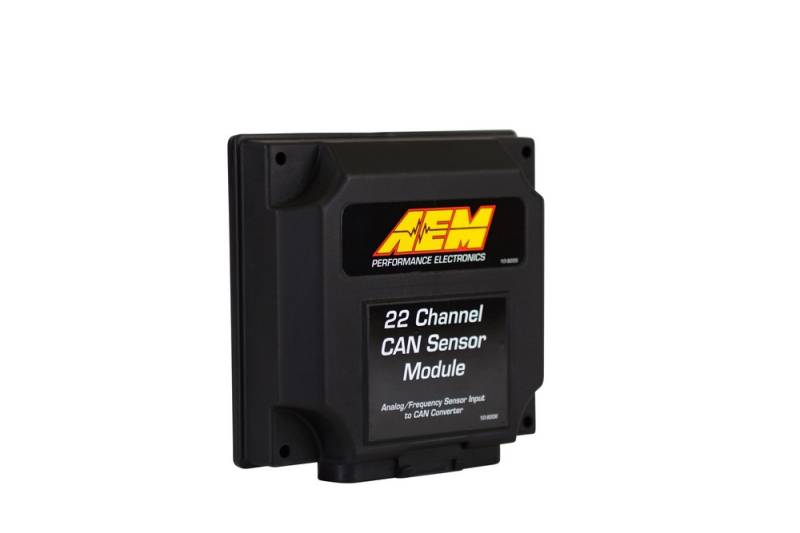

AEM 22 Channel CAN Expander Module

Multiple digital, analog, and frequency inputs

AEM's 22 Channel CAN Sensor Module (PN 30-2212) converts analog, digital and frequency inputs into an AEMnet CAN bus signal that can be transmitted to the CD-5 Carbon and CD-7 Digital Dashes. This expansion module provides a way for users with carbureted vehicles to add a CD Dash, and lets users with existing CAN-based devices add more channels to the display for viewing and/or data logging (data logging requires CD-5L Carbon or CD-7L logging Dashes). The 22-Channel CAN Sensor Module is compatible with the CD Dashes only; it will run in parallel with 3rd party CAN devices on the CD dashes but it is currently not compatible with AEM's AQ-1 Data Logger, Series 2 or Infinity ECUs, or 3rd party ECUs or loggers.

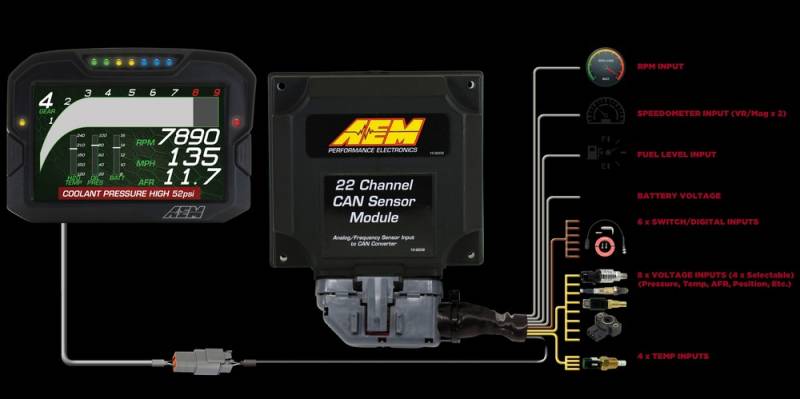

Convert analog, digital and frequency-based inputs to AEMnet CAN bus for display on CD-5 Carbon and CD-7 Dashes!
Perfect for users with carbureted vehicles who want to add a CD Dash display
Ideal for EFI users who want to add more channels to a CD Dash without purchasing multiple CAN-based devices
Daisy chain two Modules together for additional channels
IP65-rated enclosure is 'dust tight' and water resistant

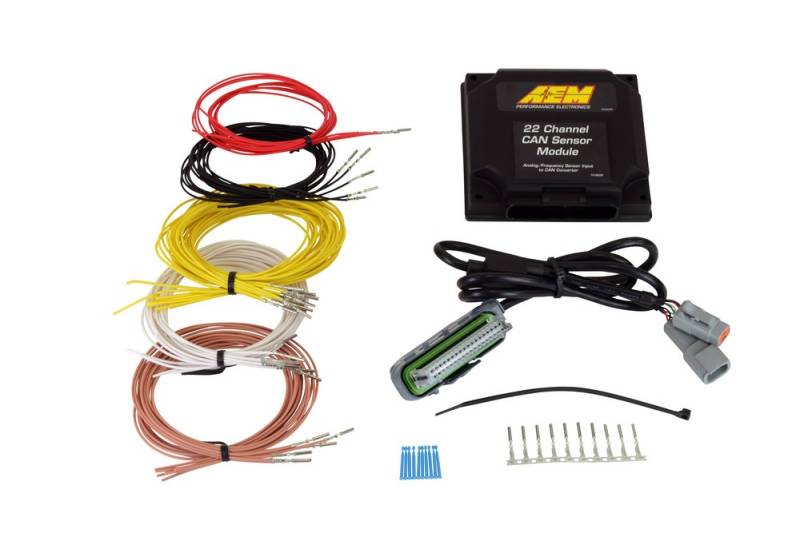

Wiring harness included with 36-inch flying leads and pre-wired CAN cable
Four Dedicated 0-5V analog inputs
Four Temperature (thermistor) inputs
Four User configurable analog inputs, (jumper selectable; 0-5v, thermistor, or RTD)
One dedicated fuel level input (0 to 250 ohm range)
Six Digital Inputs, active low, protected to ~18v, frequency, duty cycle or simple switch
One Tach Input
Two VR pair frequency inputs (crank, wheel or drive shaft speeds)
Jumper selectable CAN bus speeds, 250k,500k,1M
Jumper selectable terminating resistor
Jumper selectable header length, 11bit or 29 bit

ADDITIONAL INFORMATION

AEM 22 Channel CAN Expander Module

Brand: AEM
Category: Body
Connector Gender: Male Female
Emission Code: 5
part type: Data Acquisition Module
Product Type: Sensor
Sub Category: Control Modules
Terminal Gender: Male Female
Warning: California Proposition 65
Warranty: 1 Year

Not CARB legal: Not for sale or street use in CA & CARB states.
