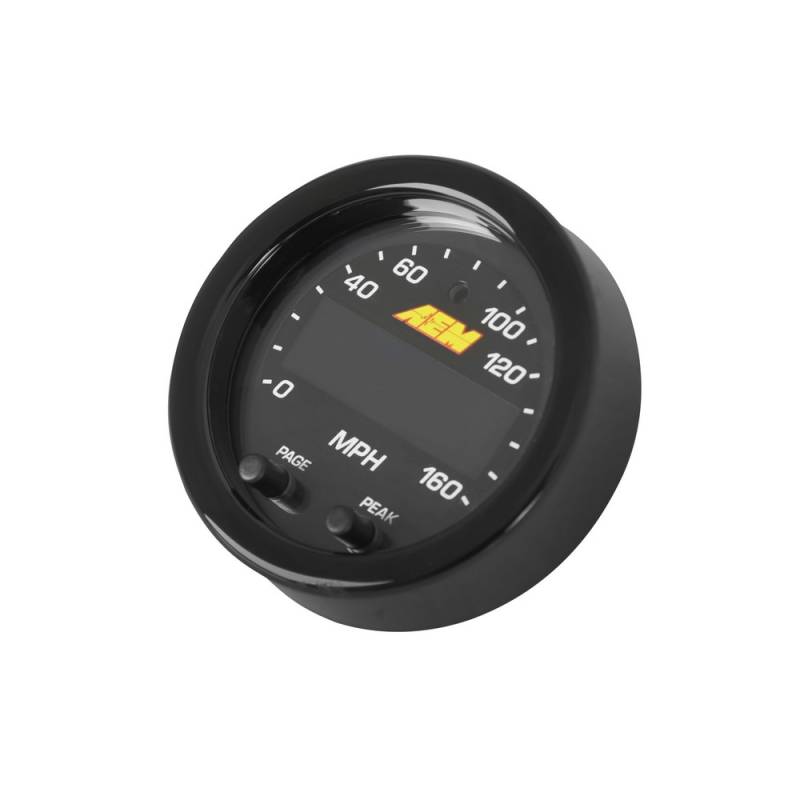

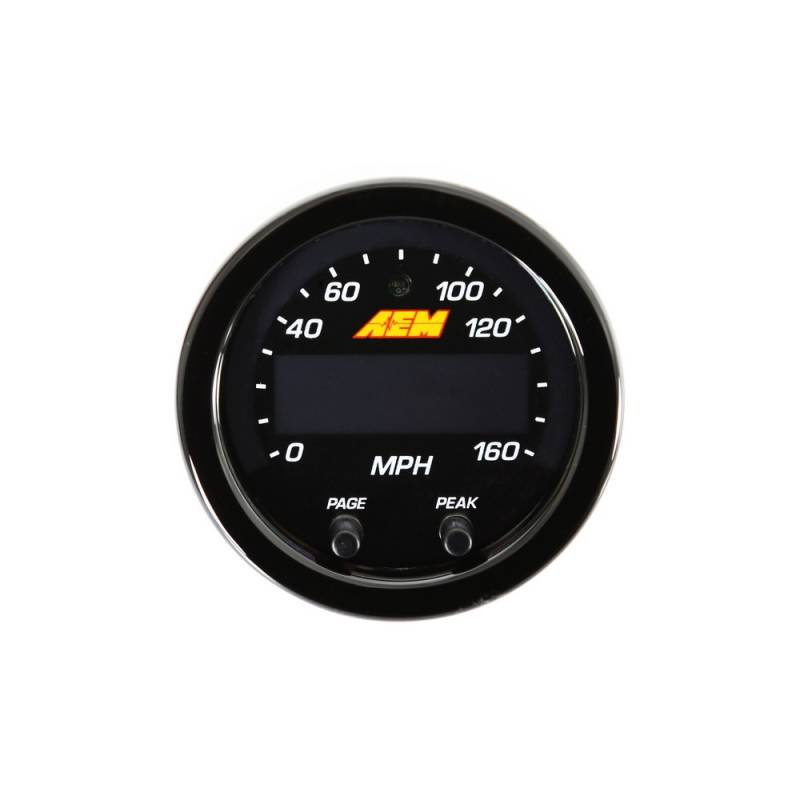

AEM X-Series 0-160 MPH Black Bezel w/ Black Face GPS Speedometer Gauge

0-160 MPH / 0-240 KPH

AEM's X-Series GPS Speedometer (PN 30-0313) display ground speed, course and altitude via an included 10Hz GPS receiver. Users can integrate the X-Series GPS Speedo into an Infinity ECU to add track mapping, and an included Vehicle Speed signal can be outputted to an existing speedometer to eliminate the need for a vehicle speed sensor.

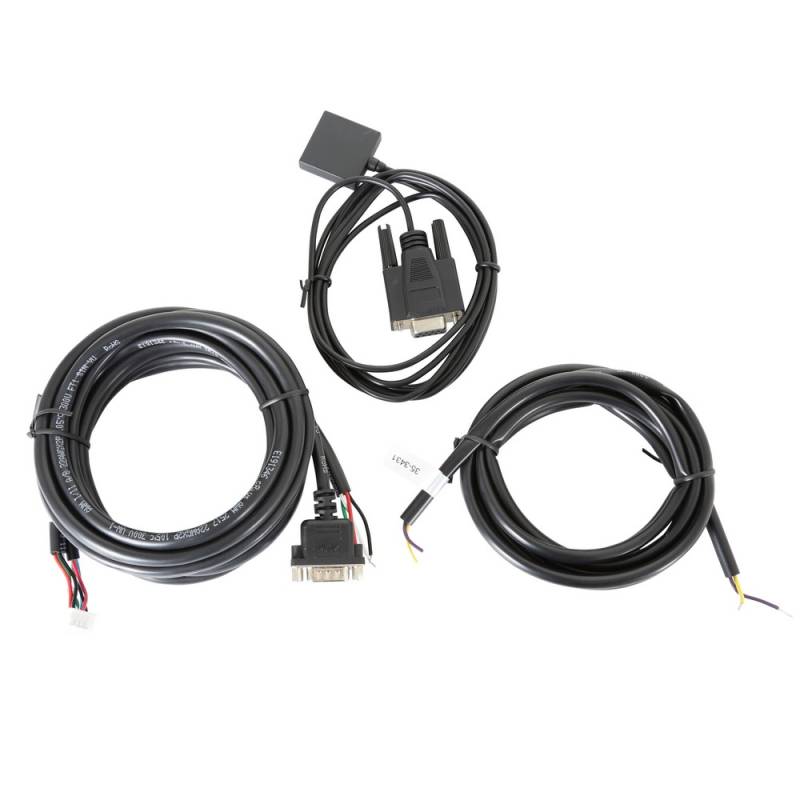

A 10Hz GPS receiver receives speed, heading and altitude data from multiple satellites at 10 samples/second providing excellent accuracy and reliability. The GPS receiver includes a magnet and adhesive bottom for exterior mounting on the vehicle.

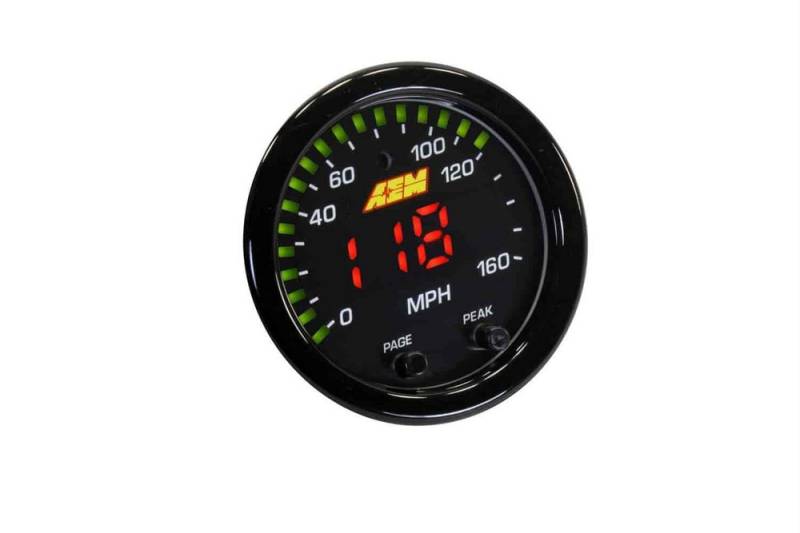

The X-Series GPS Speedometer Gauge has a bright four-digit LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping LED "needle" lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance. X-Series Gauges come with a black bezel and faceplate, and an optional silver bezel/white faceplate accessory kit is available (PN 30-0313-ACC, sold separately).

Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825", with a cup depth of only 0.200." This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.

Displays ground speed, heading and altitude!
Integrate with the Infinity ECU via AEMnet CAN bus to add track mapping!
Transmit vehicle speed to an existing speedometer without needing a VSS sensor
User selectable units of measurement (US or Metric)
2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
24 green outer LEDs for quick reference to engine parameter
Optional silver bezel with white faceplate accessory kit available (sold separately, PN 30-0313-ACC)
Auto dimming sensor delivers ideal display brightness

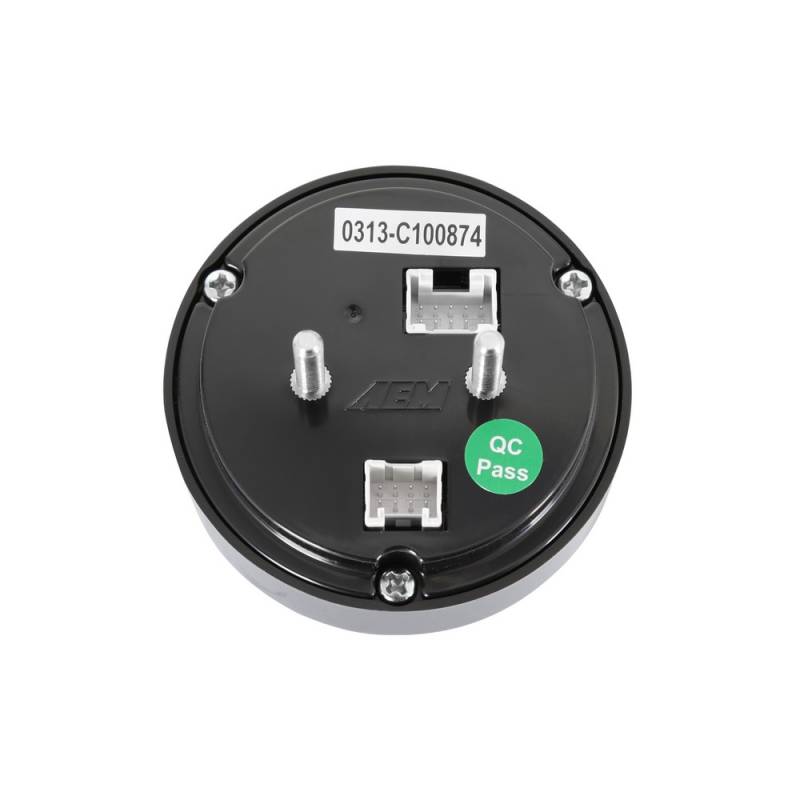

Positive locking connector provides secure connection
Compatible with 16v vehicle systems

ADDITIONAL INFORMATION

AEM X-Series 0-160 MPH Black Bezel w/ Black Face GPS Speedometer Gauge

Bezel Color: Black
Bezel Material: Plastic
Brand: AEM
Category: Body
Color Change Button: No
Dimmable: No
Display Format: Analog
Display Format: Digital
Emission Code: 5
Face Shape: Round
Illuminated: No
Illumination Color: Multiple Colors
Lens Color: Clear
Product Type: Speedometer
Sub Category: Instrument Panel
Warning: California Proposition 65
Warranty: 1 Year

FITMENT NOTES

None
