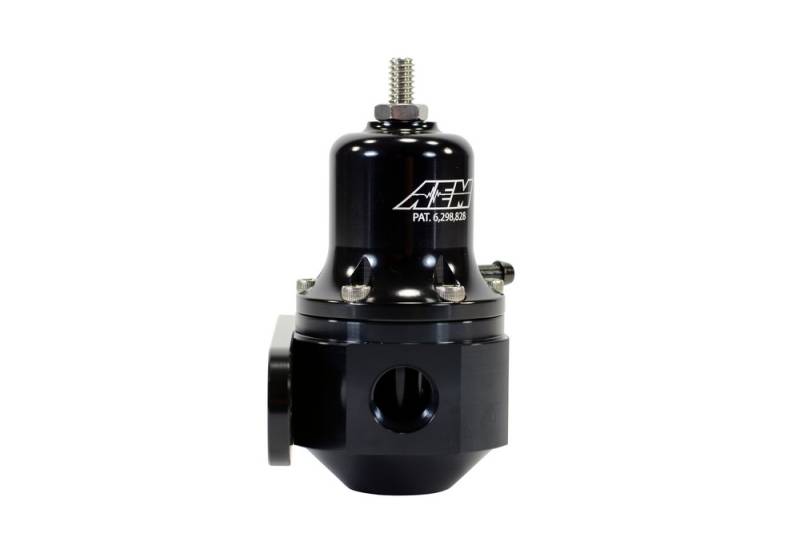

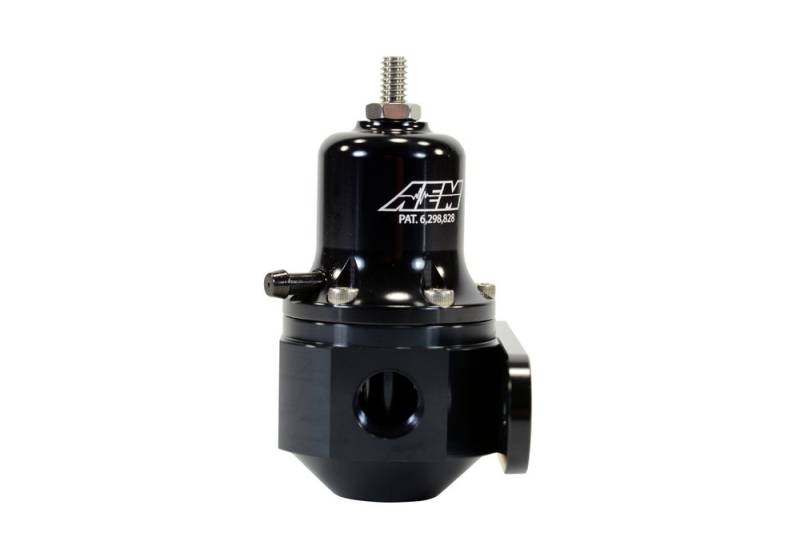

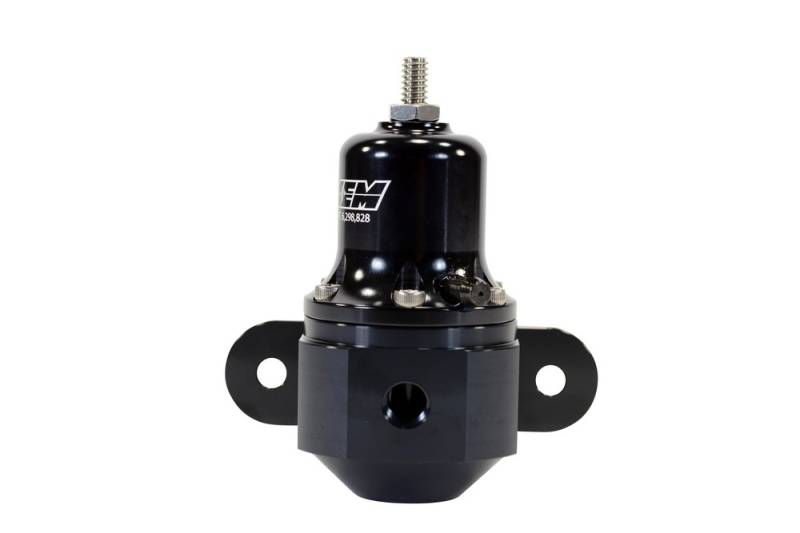

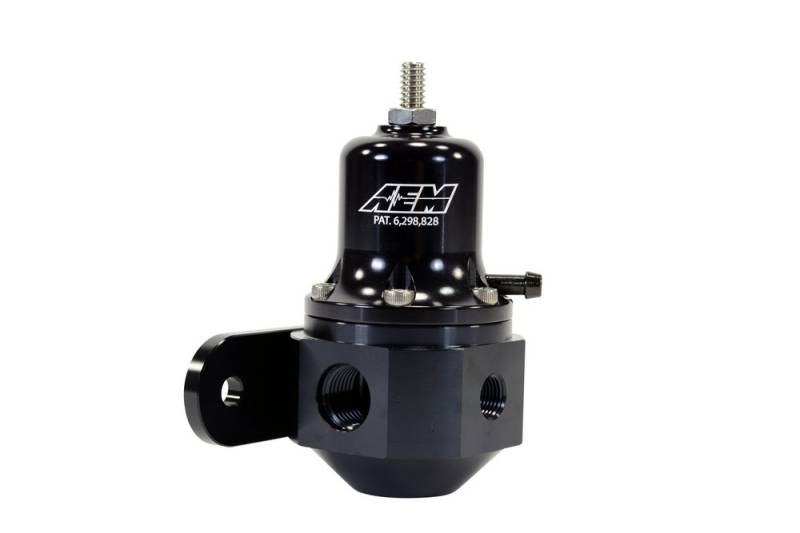

AEM High Capacity Universal Black Adjustable Fuel Pressure Regulator

25-305BK
Availability: Item usually ships within 24 hours
Was: $193.95
Sale: $171.95
Save: 11%
Save: $22.00
Qty:
Free Shipping!

Description

Inlet: 2 x -6AN (9/16-18) Outlet: -6AN - Gauge Port: 1/8 in. NPT - Black

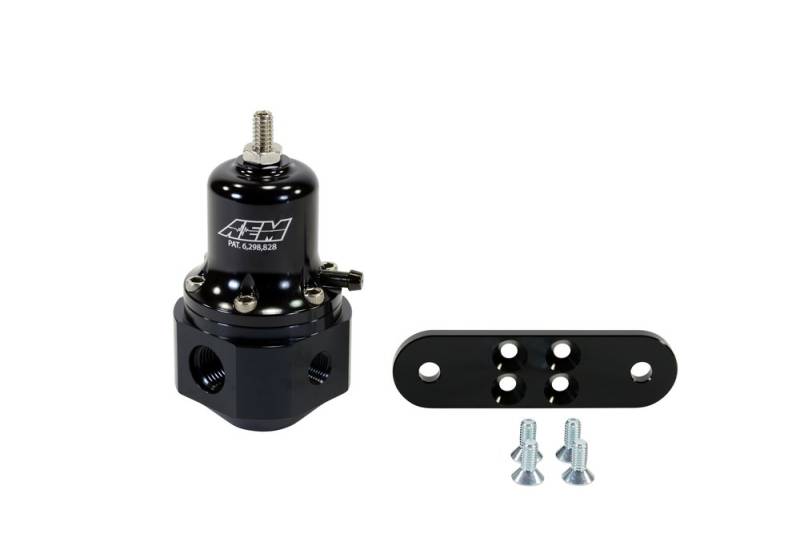

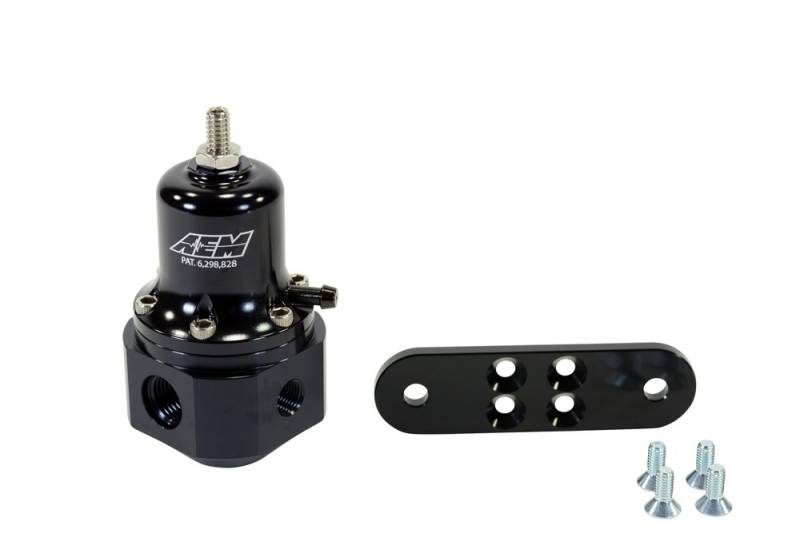

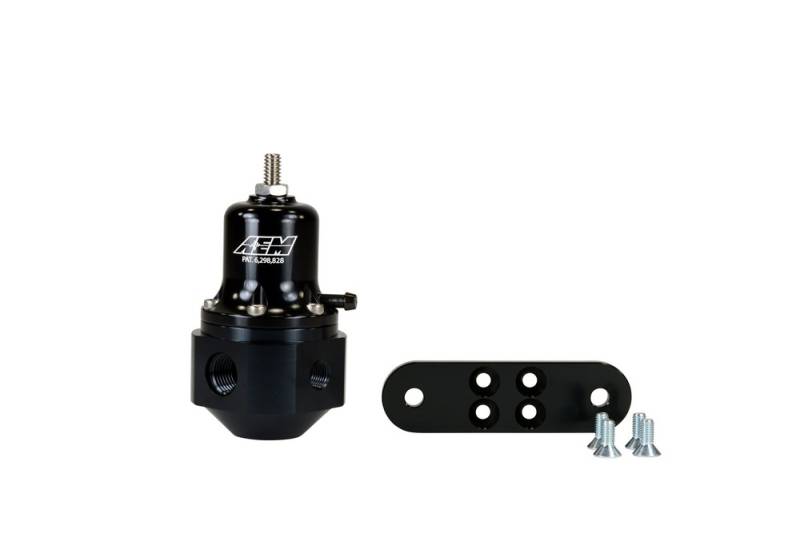

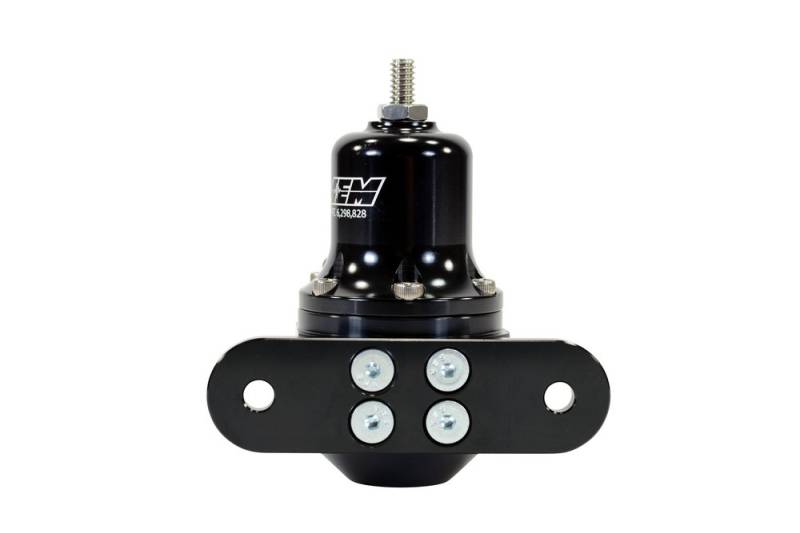

AEM High Capacity Universal Adjustable Fuel Pressure Regulator. Black Anodized. Inlet: 2 X -6 (9/16-18) Outlet: -6 (9/16"-18), Gauge Port: 1/8"NPT, Vacuum Hose: 5mm (3/16"), and Universal Mounting Bracket with Four (4) 10-32x1/2" Screws. Barb fitting for Outlet port sold separately PN 25-390.

AEM's High Cap Universal Adjustable Fuel Pressure Regulator (PN 25-305BK) is the perfect solution for racers who need reliable fuel pressure in high-boost vehicles and racecars that require a large volume of fuel delivery. A longer spring provides for a wider range of adjustment (from 40 to 130 PSI). An easy-to-adjust set screw stands up to repeated adjustments.

A single large return orifice is designed to handle high rate flow pumps. The regulator has a 1:1 rising pressure rate for boosted applications, and it is alcohol fuel and race fuel compatible. The High Cap Universal FPR is tapped to accept a 9/16"-18 O-Ring sealed fittings for inlet and return, and includes a 1/8 NPT port for a fuel pressure gauge or pressure sensor pick up.

Universal fuel pressure regulator adapts to virtually any vehicle
Longer spring for wider range of adjustment (40 - 130 PSI)
Three -6AN (9/16"-18) ORB O-ring style inlet ports (2 inlet, 1 return)
Boost dependent rising fuel pressure rate (1:1)
CNC-machined from 6061-T6 billet aluminum
Alcohol fuel and race gas compatible
Integrated 1/8" NPT gauge port
Patent # 6,298,828

ADDITIONAL INFORMATION

AEM High Capacity Universal Black Adjustable Fuel Pressure Regulator

Brand: AEM
Category: Air and Fuel Delivery
Color: Black
Emission Code: 5
Fuel System: EFI/Carb
Fuel Type: Gasoline
Inlet Size: 6 AN
Material: Aluminum
Outlet Size: 6 AN
Product Type: Fuel Pressure Regulator
Return Size: 6 AN
Style: Bypass
Sub Category: Carburetion
Warning: California Proposition 65
Warranty: 1 Year

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

None

Compatible Vehicles

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.0 lbs.
  • W4.4000” x H3.3000” x L4.6000”
