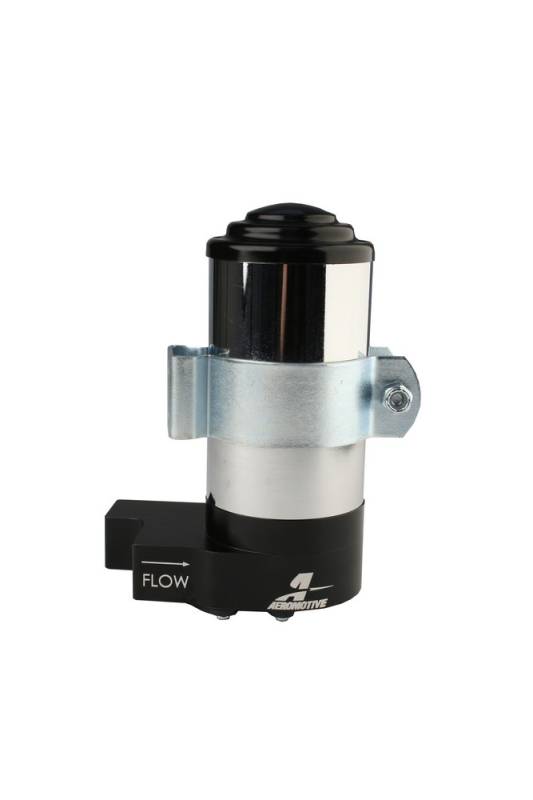

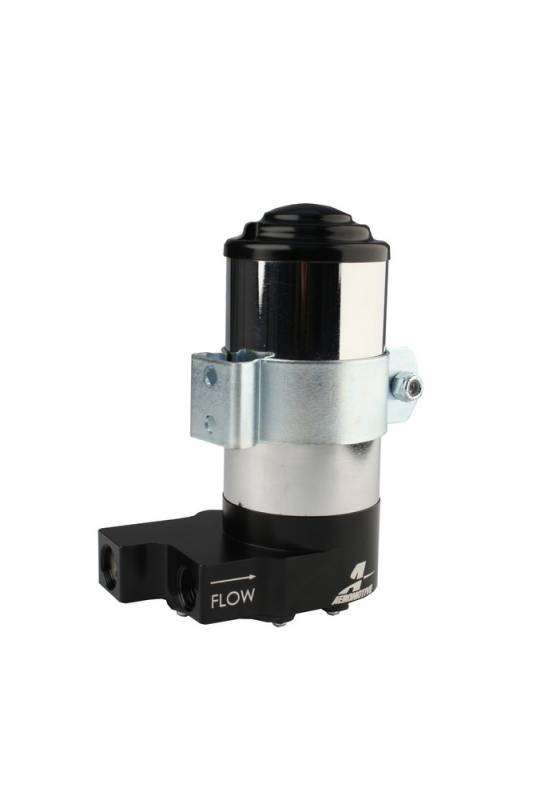

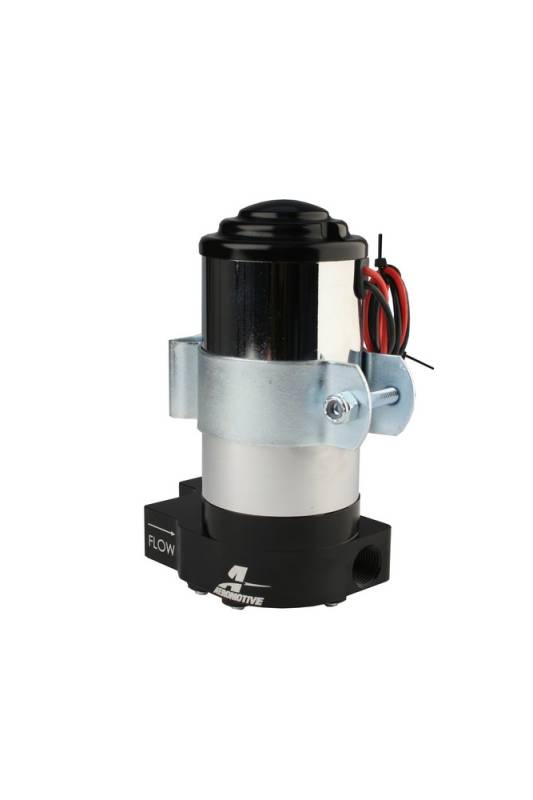

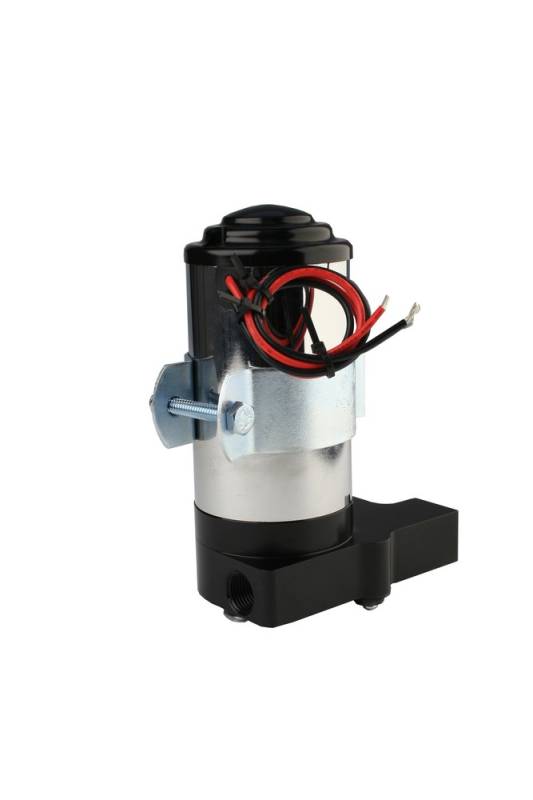

Aeromotive High Output (HO) (7 PSI) Billet Carbureted Fuel Pump - 3/8in NPT Ports

High Output (HO) (7 PSI) Billet Carbureted Fuel Pump (3/8 ? NPT) ports.

Ideal for carbureted power plants not using a separate fuel pressure regulator. The H/O Fuel Pump is designed for engines making 200-600 HP and is ideal for street cars and mild race cars alike. Similar to our SS Fuel Pump (P/N 11203), but internally regulated to 7 PSI. P/N 11209 features 3/8 NPT inlet and outlet ports. Durable billet construction. Fuel flow exceeds 90 GPH at 5 PSI and draws less than 5 amps. Internally regulated to 7 PSI, eliminating the need for a separate regulator on most carburetors. Rated for continuous duty, the pumping mechanism features a composite rotor, stainless steel vanes and heat treated steel top and bottom plates for durability.

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Carb HP on E85: 385
Carb HP on Gas: 550
Fuel Pump Inlet Type: 3/8" NPT
Inlet Outside Diameter: AN-08
Inlet Type: 3/8" NPT
Maximum Pressure: 7 PSI
Mounting Type: External
Outlet Outside Diameter: AN-06
Outlet Type: 3/8" NPT
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Regulator Included: No
Title: Aeromotive High Output for Carbureted Applications (up to 600 HP) - 3/8" NPT
Associated Comments: H/O carbureted fuel pump; supports up to 600 HP; continuous duty

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

None
