Aeromotive 14201 / 13214 Combo Kit

14201 / 13214 Combo Kit.

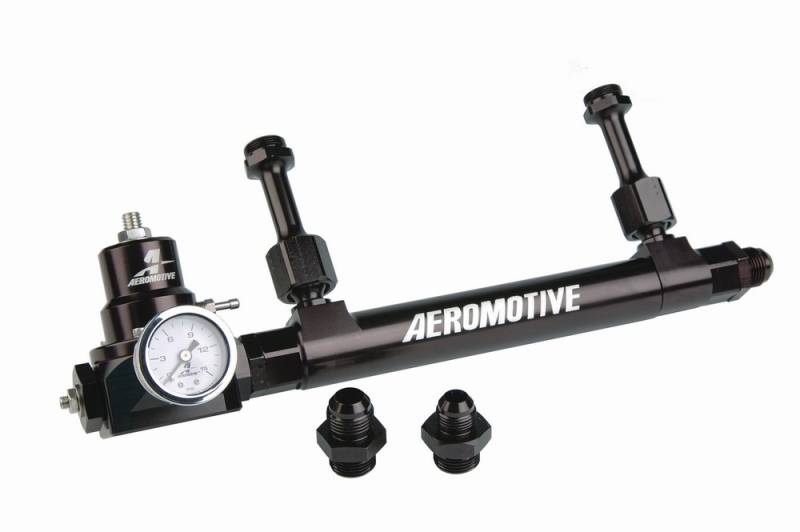

Includes 14201 Fuel Log, 13214 Double Adjustable Regulator, and 15632 Fuel Pressure Gauge. For 4150/4500 Holley Style Float Bowls. The new Aeromotive Fuel Log incorporates features never before available. Each carburetor inlet features a ball and socket assembly that swivels +/-20 degrees, allowing additional clearance for throttle stops, nitrous plates and other accessories; then locks in place at the desired position. The telescoping log will fit 4150 or 4500 Dominator (P/N 14201) and Demon (P/N 14202) carburetors. The ORB-10 inletand outlet ports will feed the hungriest big blocks, and adapt easily to Aeromotive P/N 13212 (A2000 Bypass gasoline) or P/N 13214(Double Adjustable Bypass alcohol) fuel pressure regulators. Carburetor inlets swivel + or 2 0 in all directions. Telescoping center line 7 .700 to 13.450. ORB-10 inlet and outlet ports. (2) 1/8 NPT ports for gauges or pressure transducers. 1.056 / .806 ID bore. Type II bright dip black anodized finish.

ADDITIONAL INFORMATION

Adjustable: Yes
California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Fitting Color: Black
Fitting Finish: Anodized
Fitting Material: Aluminum
Fuel Filter Included: No
Fuel Line Finish: Anodized
Fuel Line Inlet Size: ORB-10
Fuel Line Material: Aluminum
Fuel Line Type: Aluminum
Fuel Pressure Gauge Included: Yes
Gauge Port: Yes
Gauge Port Size: 1/8 in. NPT
Inlet Attachment: Male Threads
Inlet Fitting Thread Diameter: ORB -10
Inlet Quantity: 1
Maximum Center to Center Distance (in): 13.45 IN
Minimum Center to Center Distance (in): 7.7 IN
Outlet Attachment: Male Threads
Outlet Quantity: 2
Outlet Size: 7/8-20 Thread
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Quantity: Sold Individually
Title: Aeromotive Dual Action Adjustable Fuel Log Kit
Associated Comments: dual action adjustable fuel log kit; includes P/N 14201 fuel log, P/N 13214 double adjsutable bypass regulator.

FITMENT NOTES

None
