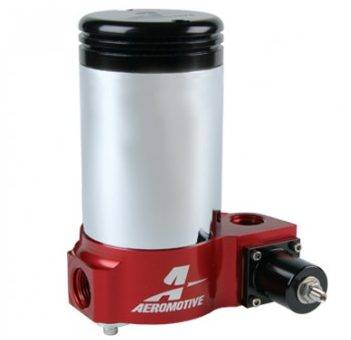

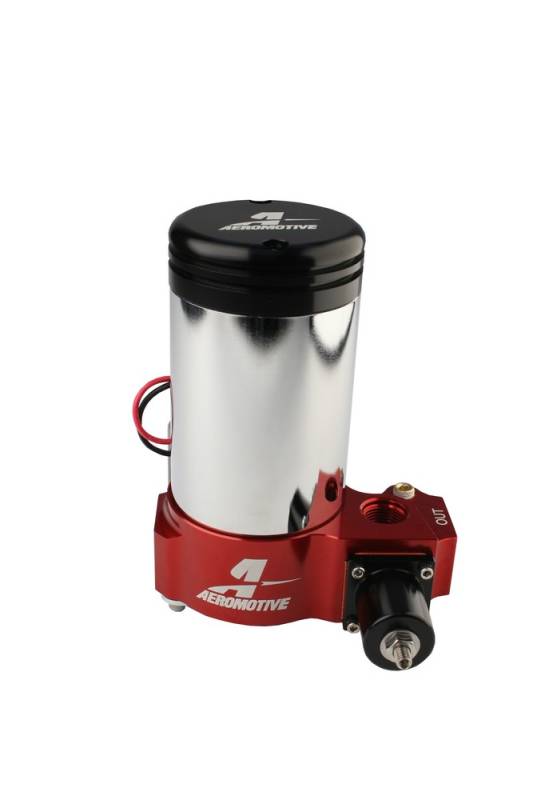

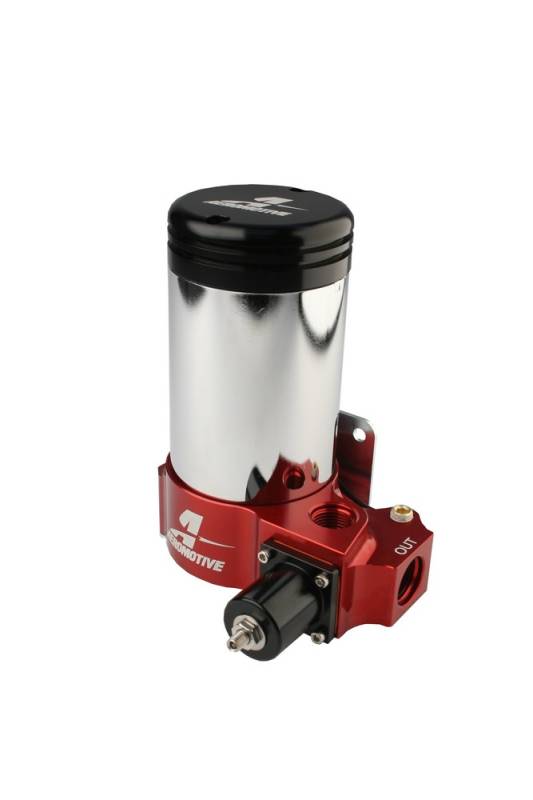

Aeromotive A2000 Drag Race Carbureted Fuel Pump

A2000 Drag Race Carbureted Fuel Pump.

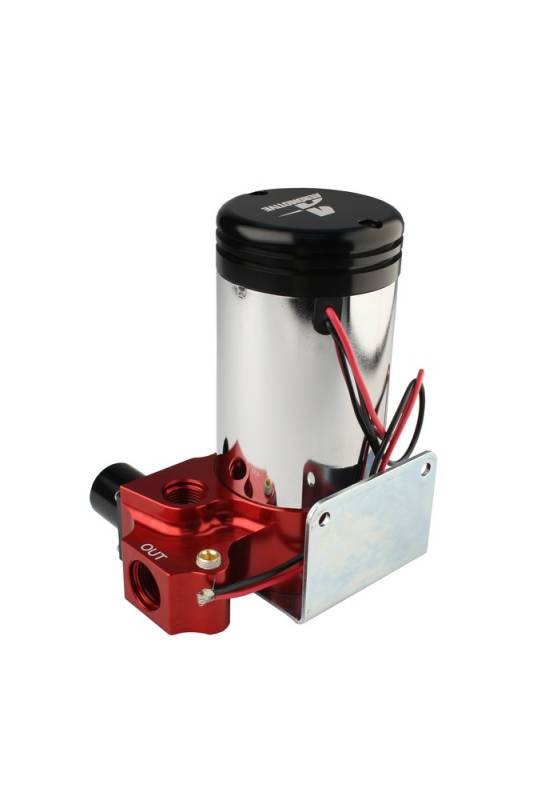

From Stock Eliminator to Pro Mod, the Aeromotive A2000 is a versatile force to reckoned with and stands alone as a 'big' carbureted fuel pump. The A2000 flows enough fuel to support the world's quickest nitrous Pro Mods on gasoline, and is the industry's only fuel pump that uses a true diaphragm controlled, adjustable bypass valve, integral to the pump. This design dampens pressure spikes, delivering smoother, more controlled flow and pressure, ensuring more consistent E.T.s and win lights. High torque, low RPM motor design delivers more than 350 GPH free flow, while developing less current draw than any other pump in its class. Adjustable diaphragm bypass valve outperforms ineffective poppet designs, minimizing flow loss and pressure fluctuation to the regulator and carburetor. ORB-10 inlet and outlet ports with ORB-8 return and 1/8' NPT gauge port. Proprietary seal design eliminates leakage. Alcohol compatible. Multiple bolt patterns on the bottom of the pump body fit many chassis mounting options.

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Carb HP on E85: 1820
Carb HP on Gas: 2600
Fuel Pump Inlet Type: 0.625
Inlet Outside Diameter: ORB -10
Inlet Type: 0.625 IN
Maximum Pressure: 18 PSI
Mounting Type: External
Outlet Outside Diameter: ORB - 08
Outlet Type: 0.625 IN
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Regulator Included: No
Title: Aeromotive A2000 Carbureted Fuel Pump
Associated Comments: A2000 carbureted fuel pump; most versatile "big" carbureted fuel pump; uses a diaphram-controlled, adjustable bypass valve; has many mounting options

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

None
