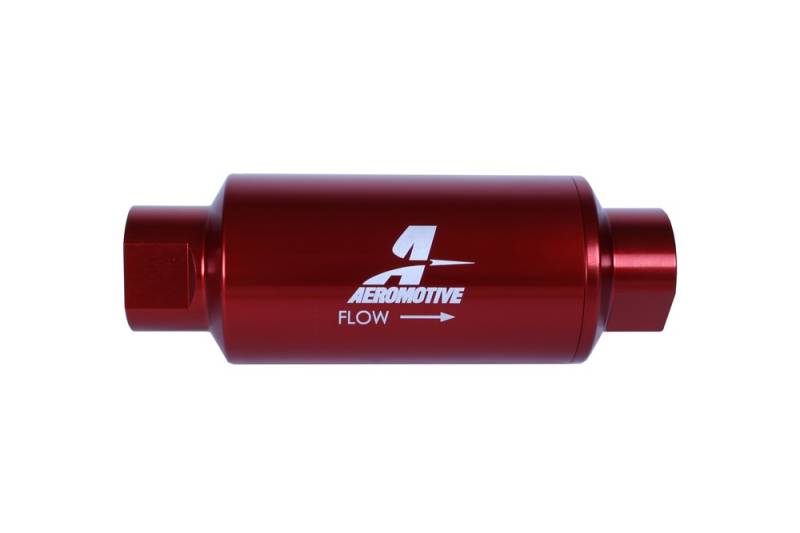

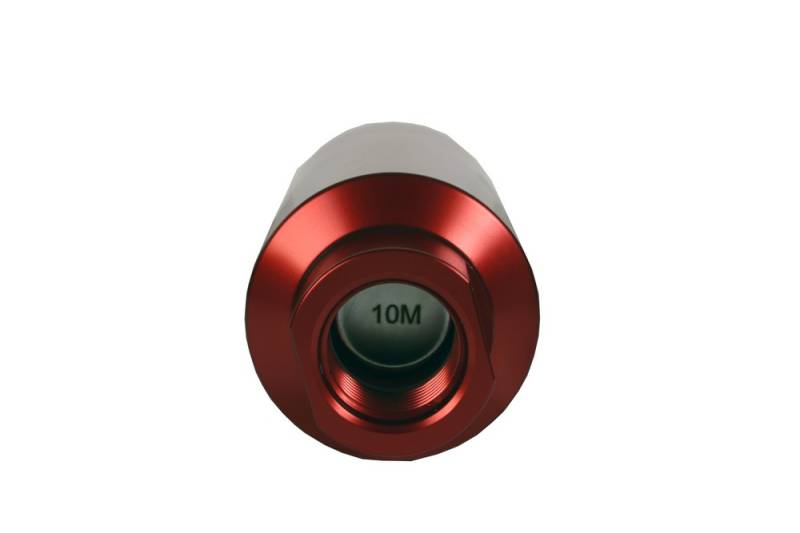

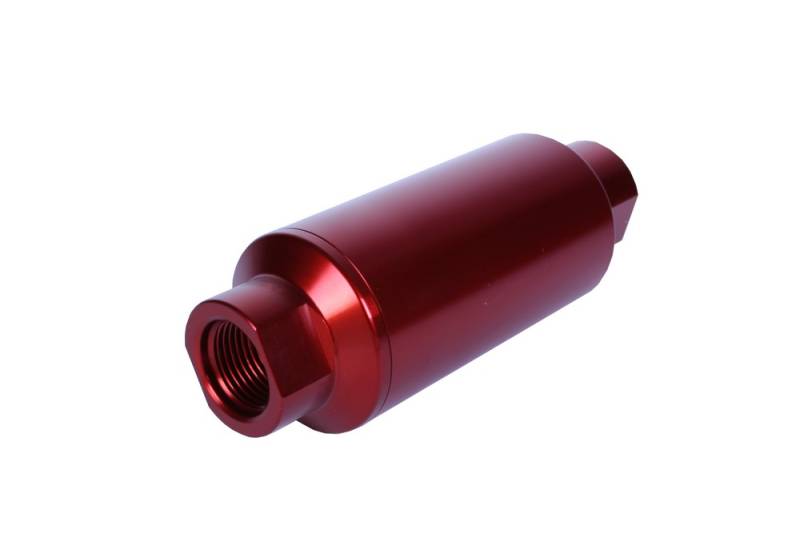

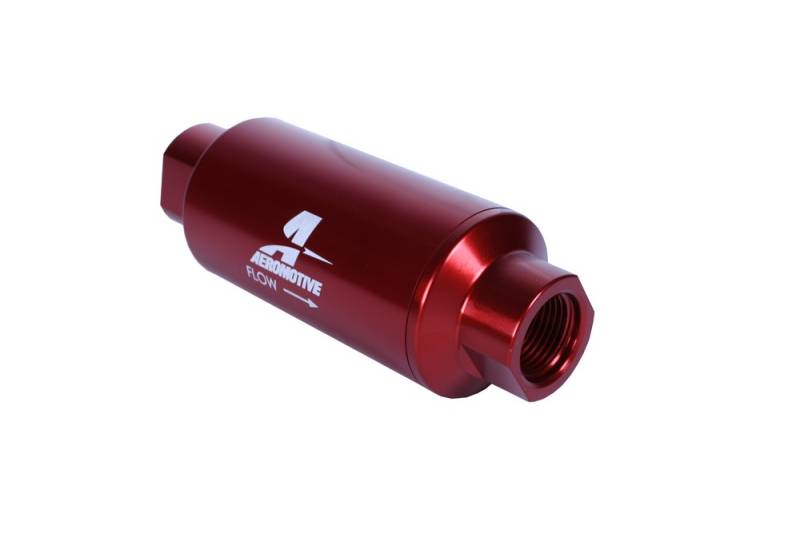

Aeromotive In-Line Filter - (AN-10) 10 Micron Microglass Element Red Anodize Finish

Filter, In-Line, 10-m Microglass Element, ORB-10 Port, Bright-Dip Red, 2" OD.

AN-10 10-micron microglass element, red anodize finish. Designed for use with gas and alcohol fuels. An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 3,000 plus horsepower applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, and the impeccable machining and finish you've come to expect from all Aeromotive components.

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Clamps Included: No
Color: Red
End 1 Gender: Female
End 2 Gender: Female
Filter Element Included: Yes
Filter Element Material: Microglass
Filter Housing Color: Red

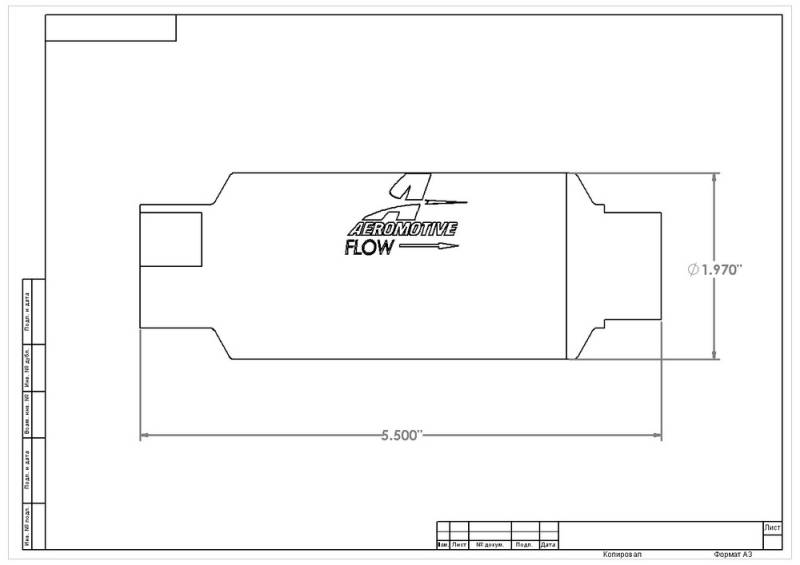

Filter Housing Diameter: 2.0 IN
Filter Housing Finish: Anodized
Filter Housing Length: 5.5 IN
Filter Housing Material: Billet Aluminum
Fitting Type: AN-10
Fittings Included: No
Flow Rate: 2000 4U
Fuel Filter Style: Inline
Fuel Type: E85/Alcohol
Fuel Type: All Fuels
Gasket Or Seal Included: Yes
Housing Material: Aluminum
Inlet Attachment: Female Thread
Inlet Outside Diameter: AN-10
Inlet Quantity: 1
Inlet Size: AN-10
Length: 5.5 IN
Maximum Fuel Pressure (psi): 70 PSI
Micron Rating: 10
Mounting Bracket Included: No
Mounting Type: External
Outlet Attachment: Female Thread
Outlet Outside Diameter: AN-10
Outlet Quantity: 1
Outlet Size: AN-10
Outside Diameter: 2.0 IN
Outside Diameter (In): 2.0 IN
Overall Length: 5.5 IN
Overall Length (In): 5.5 IN
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Quantity: Sold individually.
Shape: Straight
Smallest Particle Filtered: 10 microns
Title: Aeromotive 10m Microglass, ORB-10 Red
Universal Or Specific Fit: Universal
Associated Comments: In-Line filter; In-Line Filter, AN-10 size with a 10 micron microglass element and red anodize finish

FITMENT NOTES

None
