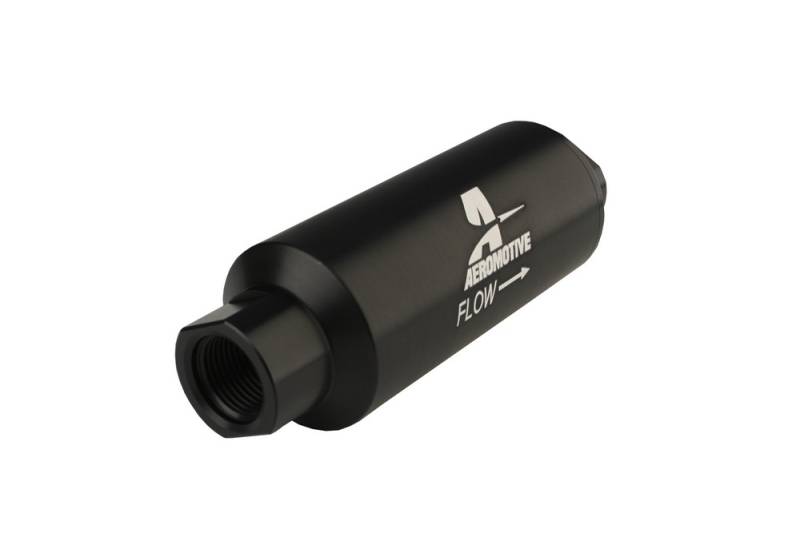

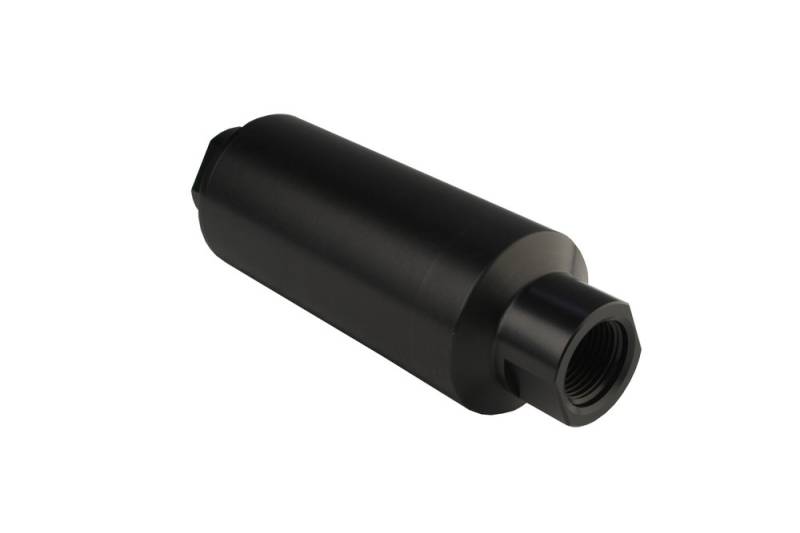

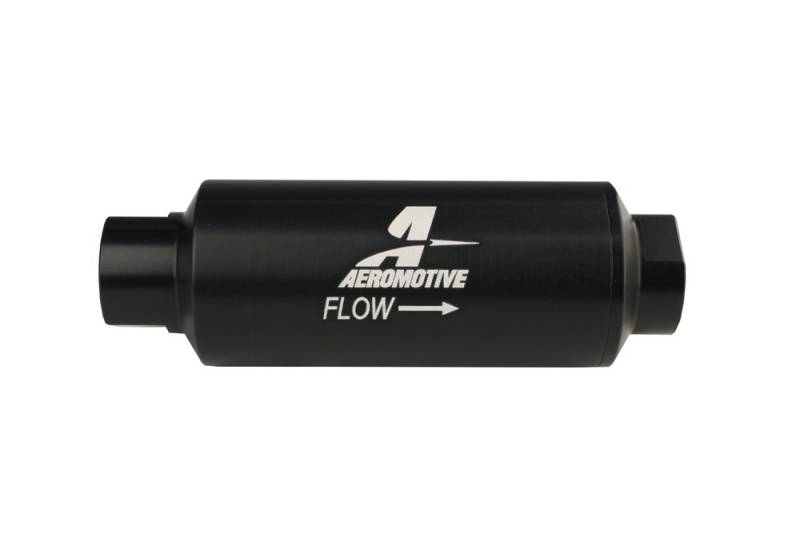

Aeromotive Marine AN-12 Fuel Filter - 100 Micron - SS Element

Filter, In-Line, 100-m Stainless Mesh Element, ORB-12 Port, Black Hard-Coat, Marine, 2-1/2" OD.

High-flow 100-micron stainless steel (coarse) cleanable element. Flows 2,000 lb/hr with a pressure drop of less than .15 PSI. ORB-12 ports. Fittings available to adapt these filters to AN-12 and -10 line sizes. 7" long x 2.5" diameter.

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Clamps Included: No
Color: Black
End 1 Gender: Female
End 2 Gender: Female
Filter Element Included: Yes
Filter Element Material: Stainless steel mesh
Filter Housing Color: Black
Filter Housing Diameter: 2.5 IN
Filter Housing Finish: Anodized
Filter Housing Length: 7 IN
Filter Housing Material: Billet Aluminum
Fitting Type: AN-12
Fittings Included: No
Flow Rate: 2000 4U
Fuel Filter Style: Inline
Fuel Type: All Fuels
Gasket Or Seal Included: Yes
Housing Material: Aluminum
Inlet Attachment: Female Thread
Inlet Outside Diameter: AN-12
Inlet Quantity: 1
Inlet Size: AN-12
Length: 7 IN
Maximum Fuel Pressure (psi): 70 PSI
Micron Rating: 100
Mounting Bracket Included: No
Mounting Type: External
Outlet Attachment: Female Thread
Outlet Outside Diameter: AN-12
Outlet Quantity: 1
Outlet Size: AN-12
Outside Diameter: 2.5 IN
Outside Diameter (In): 2.5 IN
Overall Length: 7 IN
Overall Length (In): 7 IN
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Quantity: Sold individually.
Shape: Straight
Smallest Particle Filtered: 100 microns
Title: Aeromotive Marine Inlet, ORB-12 Fuel Filter
Universal Or Specific Fit: Universal
Associated Comments: Pro Series fuel filter; marine line filter; indestructible electoless nickel finish

FITMENT NOTES

None
