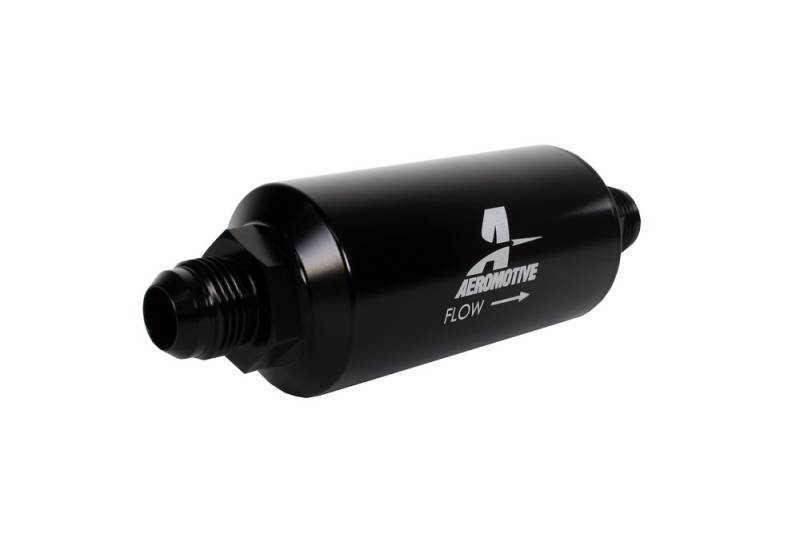

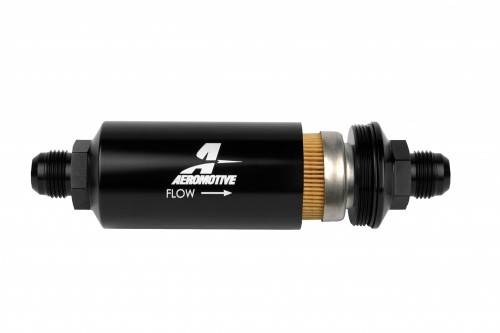

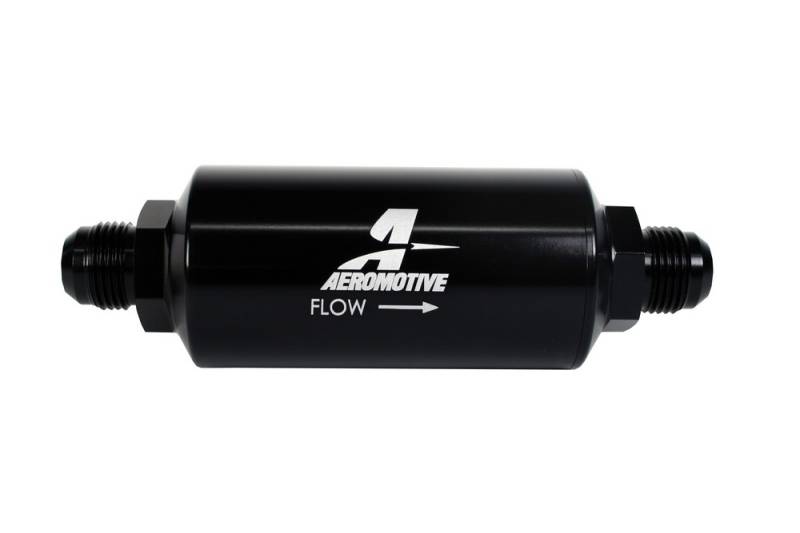

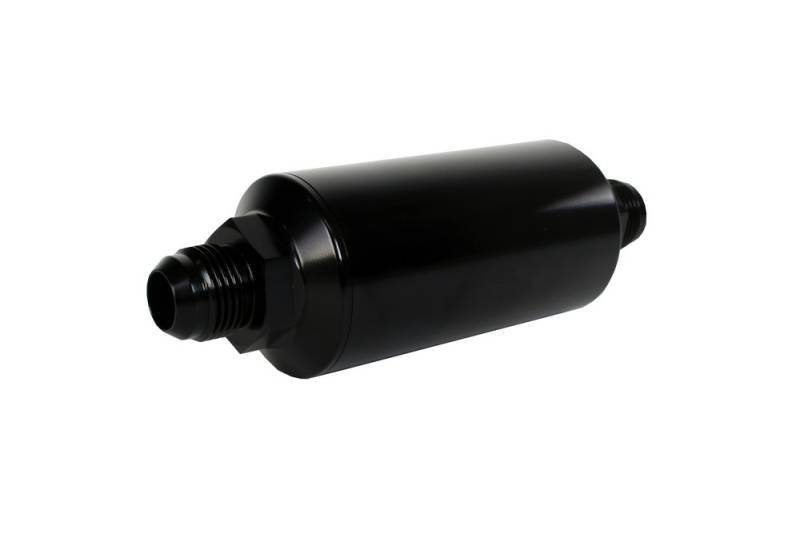

Aeromotive In-Line Filter - (AN -10 Male) 10 Micron Fabric Element Bright Dip Black Finish

Filter, In-Line, 10-m Fabric Element, AN-10 Male, Bright-Dip Black, 2" OD.

AN-10, 10 micron cellulose element, black anodize finish An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components. High-flow, 10-micron cellulose replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 1 PSI. Male AN-10. All filter assemblies feature an O-ring for positive sealing in high pressure applications. CNC-machined from 6061-T6 aircraft aluminum. Bright dip black anodized finish for a corrosion resistant, show car quality appearance.

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Clamps Included: No
Color: Black
End 1 Gender: Male
End 2 Gender: Male
Filter Element Included: Yes
Filter Element Material: Cellulose
Filter Housing Color: Black
Filter Housing Diameter: 2.0 IN
Filter Housing Finish: Anodized
Filter Housing Length: 5.5 IN
Filter Housing Material: Billet Aluminum
Fitting Type: AN-10
Fittings Included: No
Flow Rate: 2000 4U
Fuel Filter Style: Inline
Fuel Type: Gas / Diesel
Gasket Or Seal Included: Yes
Housing Material: Aluminum
Inlet Attachment: Male Thread
Inlet Outside Diameter: AN-10
Inlet Quantity: 1
Inlet Size: AN-10
Length: 5.5 IN
Maximum Fuel Pressure (psi): 70 PSI
Micron Rating: 10
Mounting Bracket Included: No
Mounting Type: External
Outlet Attachment: Male Thread
Outlet Outside Diameter: AN-10
Outlet Quantity: 1
Outlet Size: AN-10
Outside Diameter: 2.0 IN
Outside Diameter (In): 2.0 IN
Overall Length: 5.5 IN
Overall Length (In): 5.5 IN
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Quantity: Sold individually.
Shape: Straight
Smallest Particle Filtered: 10 microns
Title: Aeromotive Male AN-10 cellulose 10m Filter
Universal Or Specific Fit: Universal
Associated Comments: In-Line filter; In-Line Filter, AN-10 size with a 10 micron cellulose element and black anodize finish

FITMENT NOTES

None
