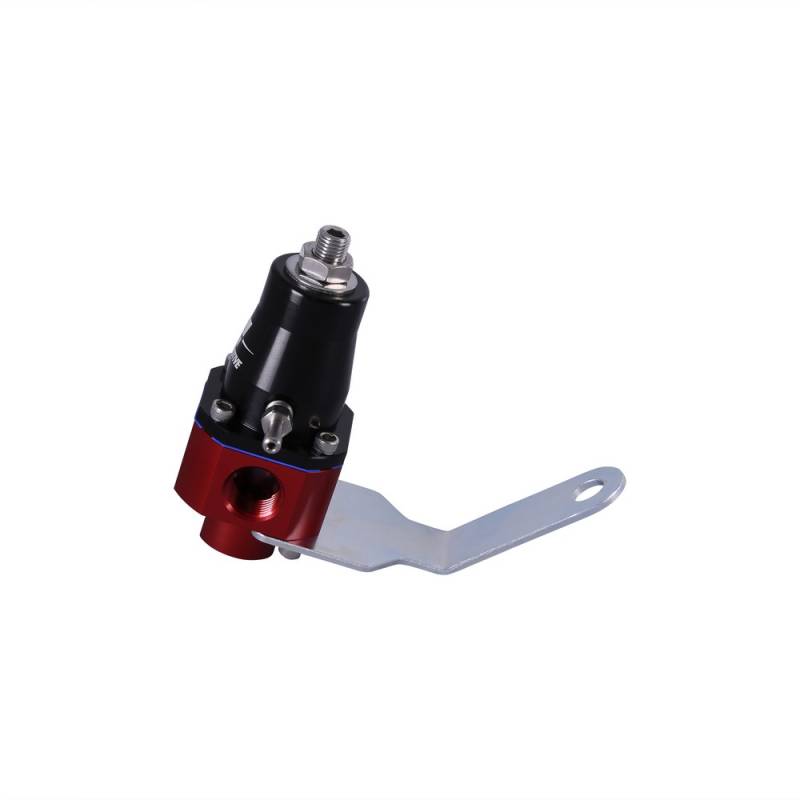

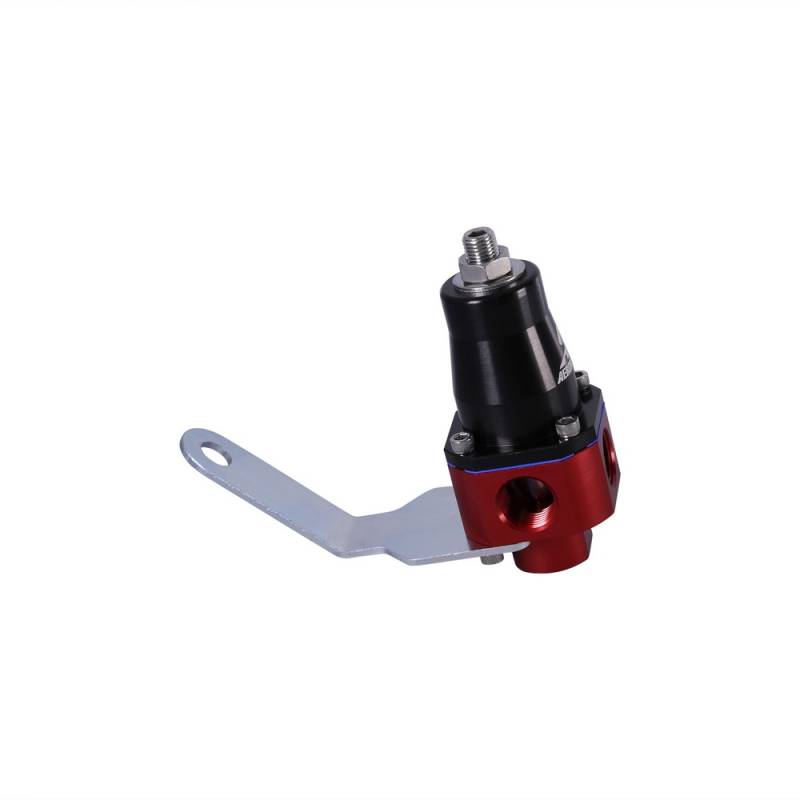

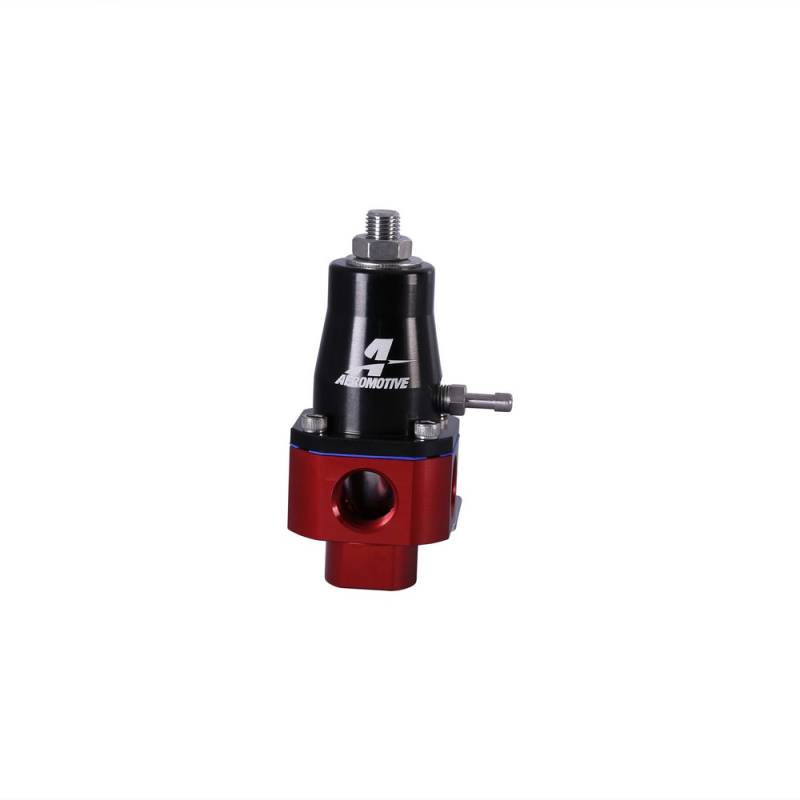

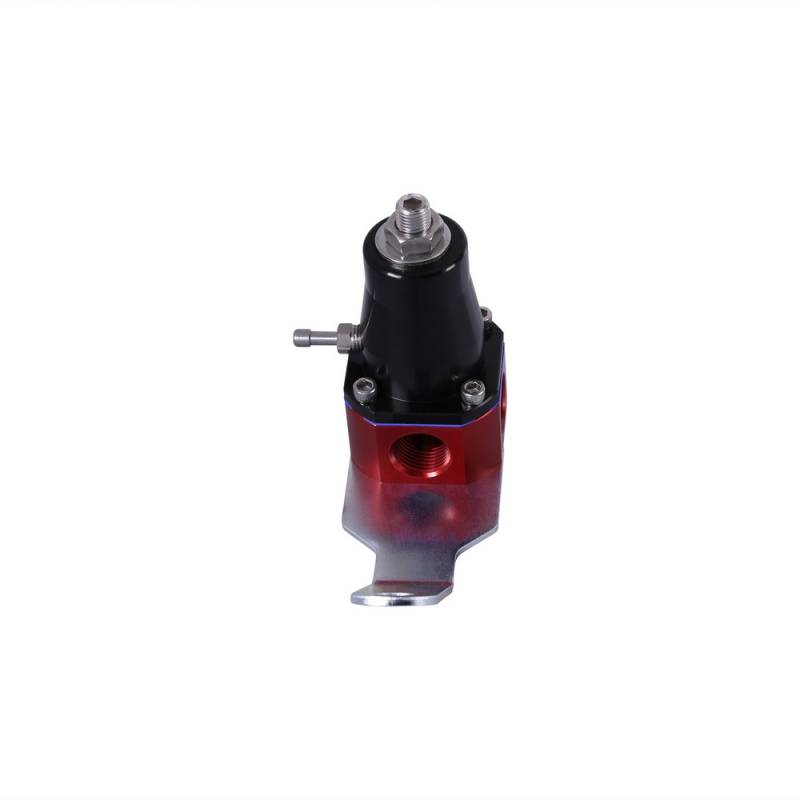

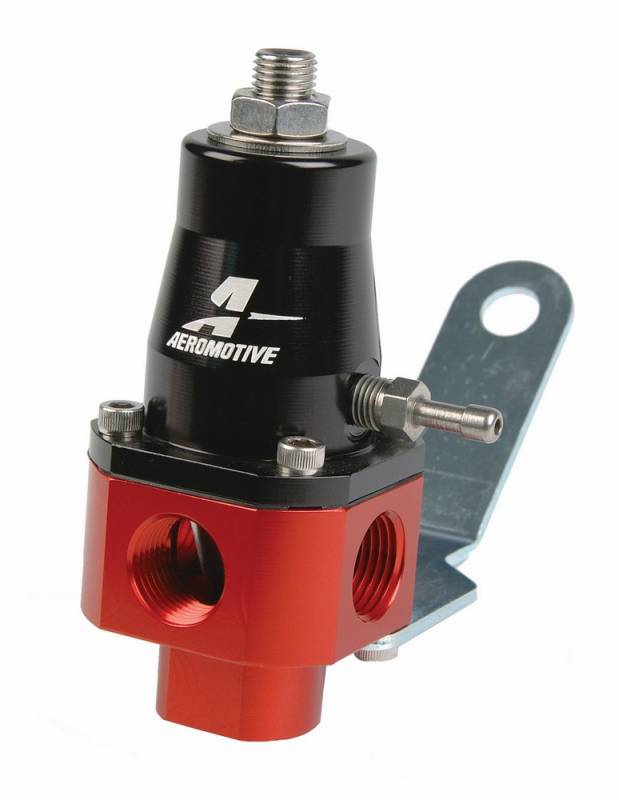

Aeromotive Universal Bypass Regulator - 3-Port 3/8in NPT

Universal Bypass Regulator - 3-Port 3/8? NPT.

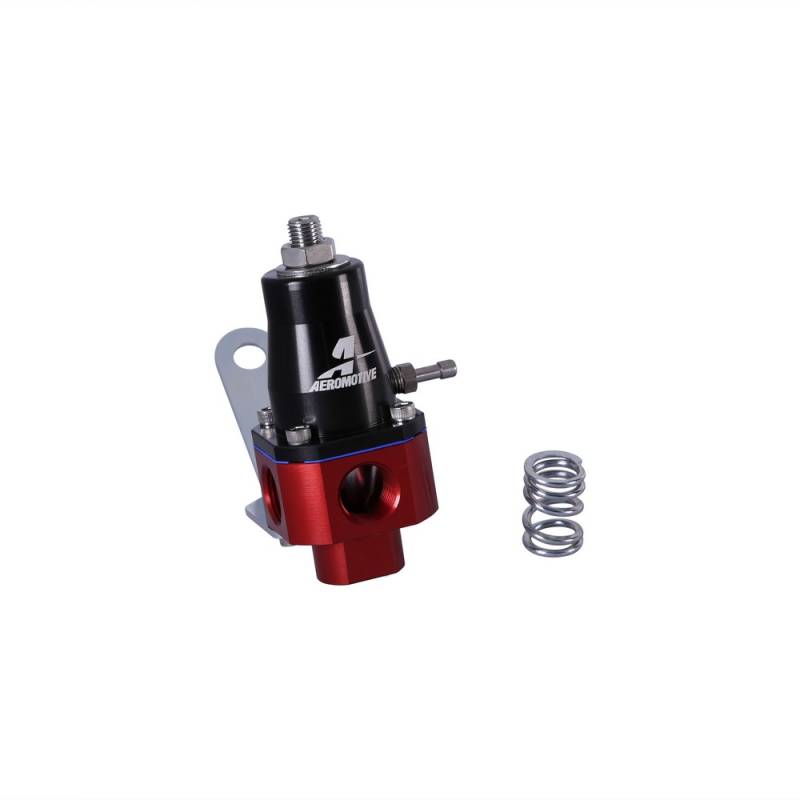

A dual purpose, universal regulator for EFI or Carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive bypass regulator provides. Capable of regulating any fuel pump between 100 and 250 GPH. Fuel pressure rises on a 1:1 ratio when referencing boost. All ports are 3/8' NPT, with one inlet and three outlets on the main body and one return port on the bottom. Bypass design provides the ultimate, dynamic fuel pressure control. Note: Requires a return line to be installed from the bottom of the regulator to the top of the tank.

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Outlet Port Diameter: 0.375 IN
Port Quantity: 5
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Title: Aeromotive Universal Bypass Regulator
Associated Comments: universal bypass regulator; for EFI and carbureted applications; for street and strip applications; adjustable from 3-20 PSI.

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

None
