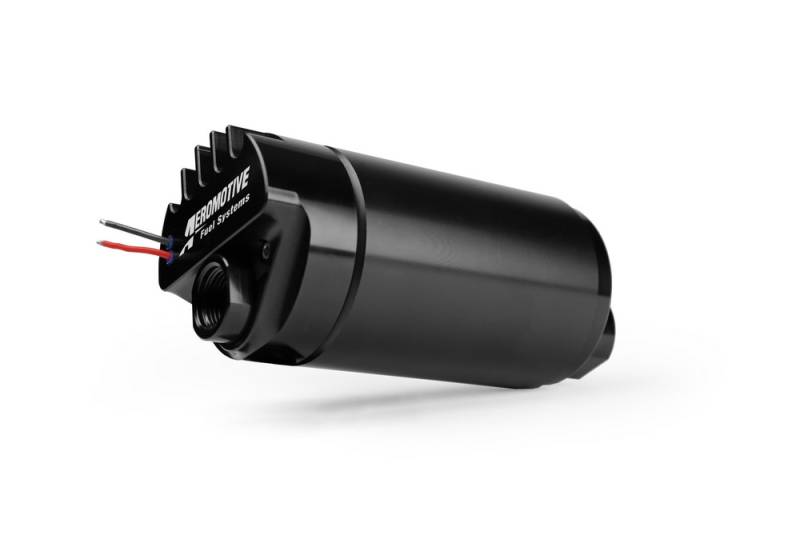

Aeromotive Variable Speed Controlled Fuel Pump - Round - In-line - Brushless Spur 5.0

Variable Speed Controlled Fuel Pump, Round, In-line, Brushless, Spur, 5.0.

Aeromotive is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

Fuel injected engines: GAS up to 3400 FWHP � naturally aspirated up to 2600 FWHP � forced air induction
Carbureted engines: GAS Up to 3600 FWHP � naturally aspirated Up to 2700 FWHP � forced air induction
Fuel injected engines: E85 up to 2380 FWHP � naturally aspirated up to 1820 FWHP � forced air induction
Carbureted engines: E85 Up to 2520 FWHP � naturally aspirated Up to 1890 FWHP � forced air induction
Fuel injected engines: METHANOL up to 1,190 FWHP � naturally aspirated up to 910 FWHP � forced air induction
Carbureted engines: METHANOL Up to 1,260 FWHP � naturally aspirated Up to 945 FWHP � forced air induction
E85 Compatible, reduce max FWHP by 30%
Lighter than the traditional external mount pumps.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
New integral spur-gear pumping mechanism.
90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
ORB-12 inlet and ORB-10 outlet ports.
Requires straight 12-VDC to 16-VDC power supply.
Not compatible with pulse modulated systems or fuel pump speed controllers.

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Carb HP on E85: 2520
Carb HP on Gas: 3600
EFI HP on E85: 2380
EFI HP on Gas: 3400
Inlet Outside Diameter: ORB - 12
Maximum Pressure: 60 PSI
Mounting Type: External
Outlet Outside Diameter: ORB -10
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Regulator Included: No
Title: Aeromotive Brushless In-Line 5.0 Spur Gear Pump with Variable Speed Controller
Associated Comments: VSC Brushless 5.0 In-Line Pump

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

None
