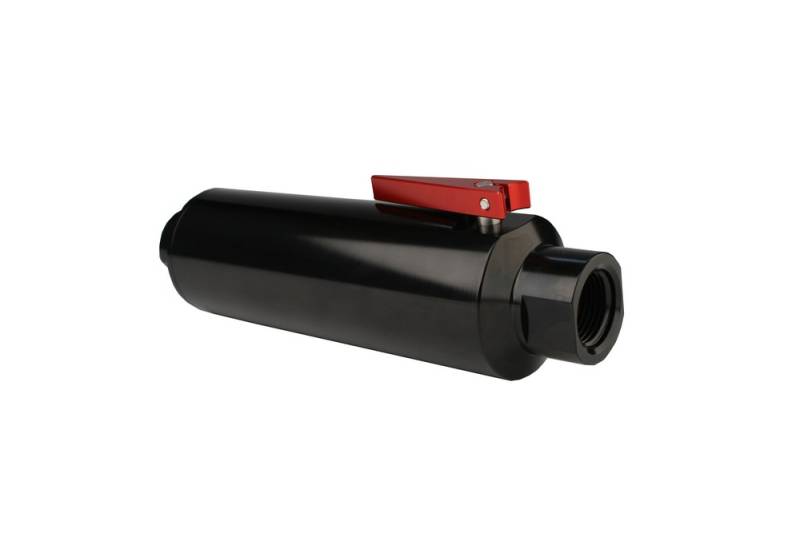

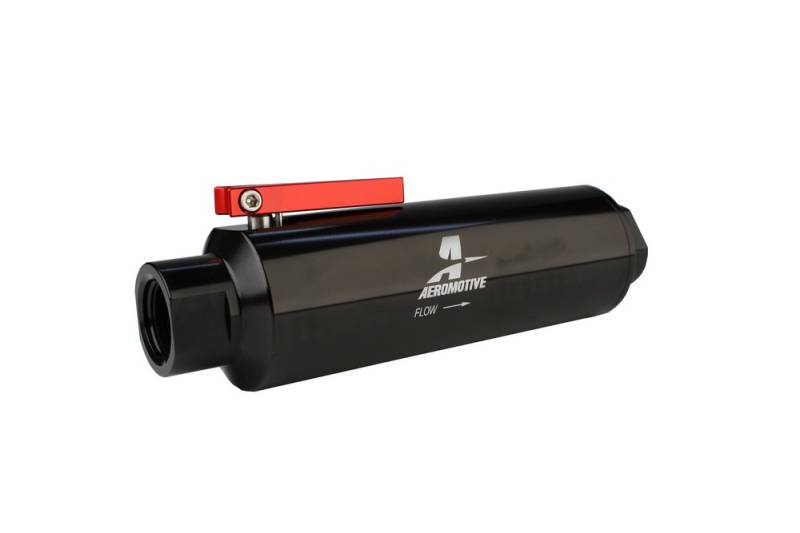

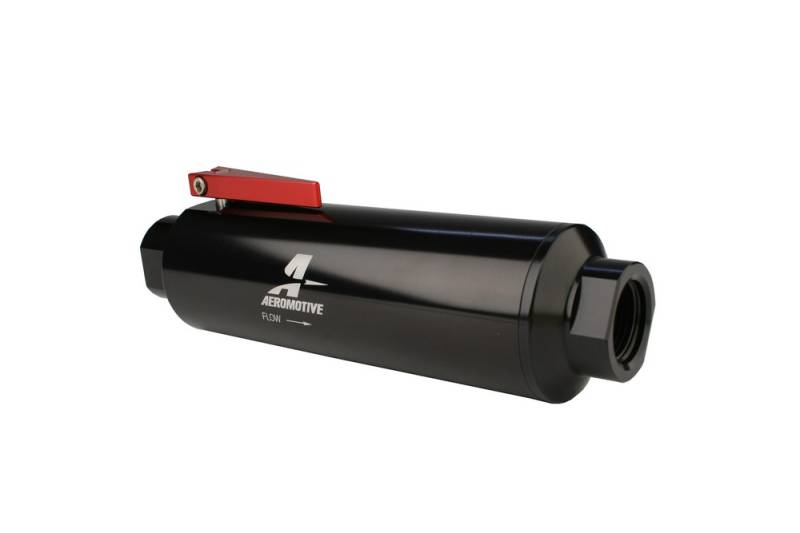

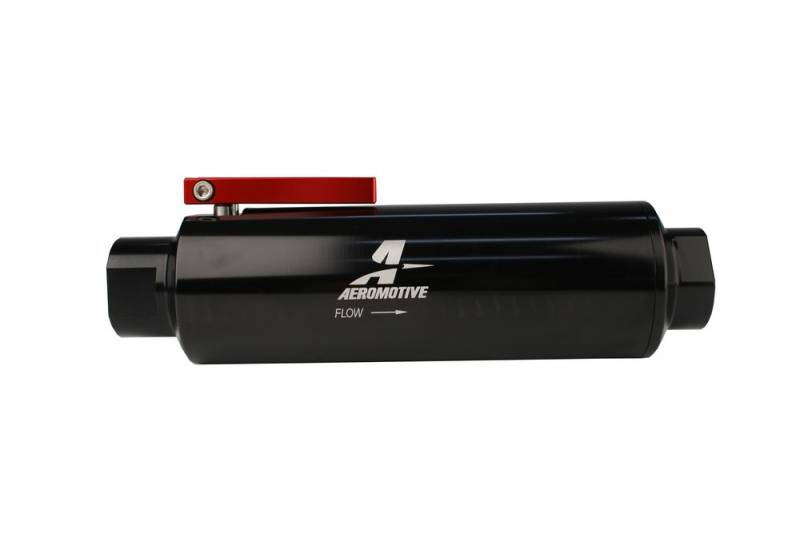

Aeromotive In-Line AN-12 Filter w/Shutoff Valve 100 Micron SS Element - Black Anodize Finish

Filter w/ Shutoff Valve, 100-m Stainless Mesh element, In-Line, ORB-12 Port, Bright-Dip Black, 2-12" OD.

Ever take a fuel bath when changing your filter We have a solution! Cleaning and replacing you filter elements used to mean draining your gas tank. The new Aeromotive Shutoff Valve Fuel Filters allow you to shutoff fuel flow and replace your filter elements with little or no fuel loss. Both feature 100 micron stainless steel elements and are recommended for use between the fuel cell or sumped tank and the fuel pump inlet. ORB-12 ports. 100 micron stainless steel (coarse) cleanable element. Dimensions: 8.82 long x 2.5 diameter. Proprietary stainless steel shutoff valve design. Type II bright dip black anodized assembly and red anodized billet aluminum shutoff valve handle. Perfect for pre-pump filtration.

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Clamps Included: No
Color: Black
End 1 Gender: Female
End 2 Gender: Female
Filter Element Included: Yes
Filter Element Material: Stainless steel mesh
Filter Housing Color: Black
Filter Housing Diameter: 2.0 IN
Filter Housing Finish: Anodized
Filter Housing Length: 5.5 IN
Filter Housing Material: Billet Aluminum
Fitting Type: AN-12
Fittings Included: No
Flow Rate: 2000 4U
Fuel Filter Style: Inline
Fuel Type: All Fuels
Gasket Or Seal Included: Yes
Housing Material: Aluminum
Inlet Attachment: Female Thread
Inlet Outside Diameter: AN-12
Inlet Quantity: 1
Inlet Size: AN-12
Length: 5.5 IN
Maximum Fuel Pressure (psi): 70 PSI
Micron Rating: 100
Mounting Bracket Included: No
Mounting Type: External
Outlet Attachment: Female Thread
Outlet Outside Diameter: AN-12
Outlet Quantity: 1
Outlet Size: AN-12
Outside Diameter: 2.0 IN
Outside Diameter (In): 2.0 IN
Overall Length: 5.5 IN
Overall Length (In): 5.5 IN
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Quantity: Sold individually.
Shape: Straight
Smallest Particle Filtered: 100 microns
Title: Aeromotive ORB-12 Shutoff Valve Fuel Filter
Universal Or Specific Fit: Universal

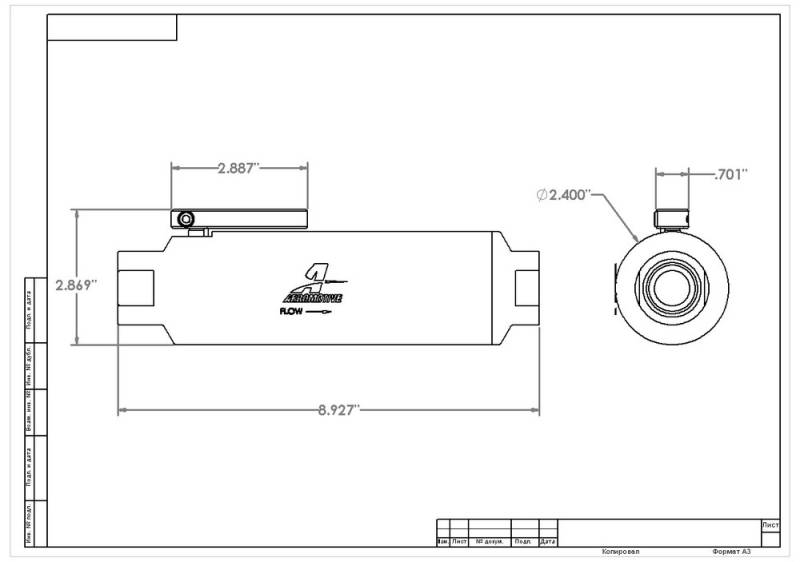

Associated Comments: shutoff valve fuel filter; proprietary stainless steel shutoff valve design; 100-micron stainless steel element; Type II bright dip black anodized assembly and red anodized billet aluminum shutoff valve handle; 8.875" long x 2.5" diameter

FITMENT NOTES

None
