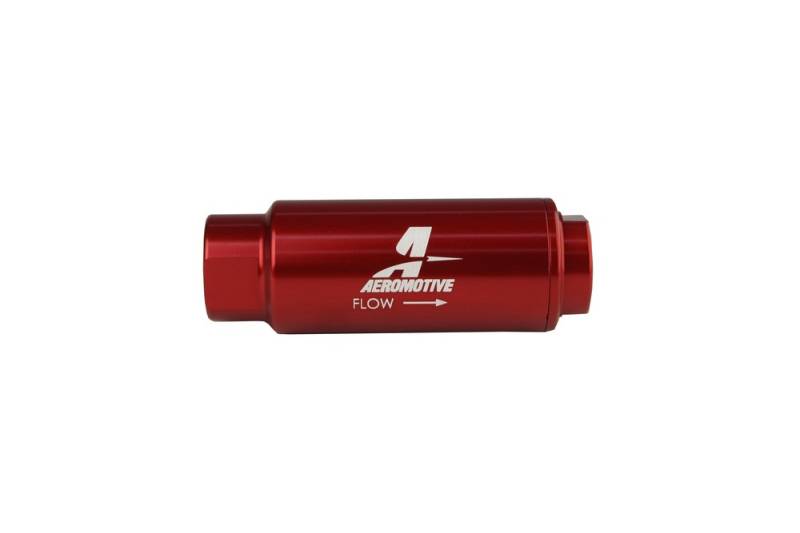

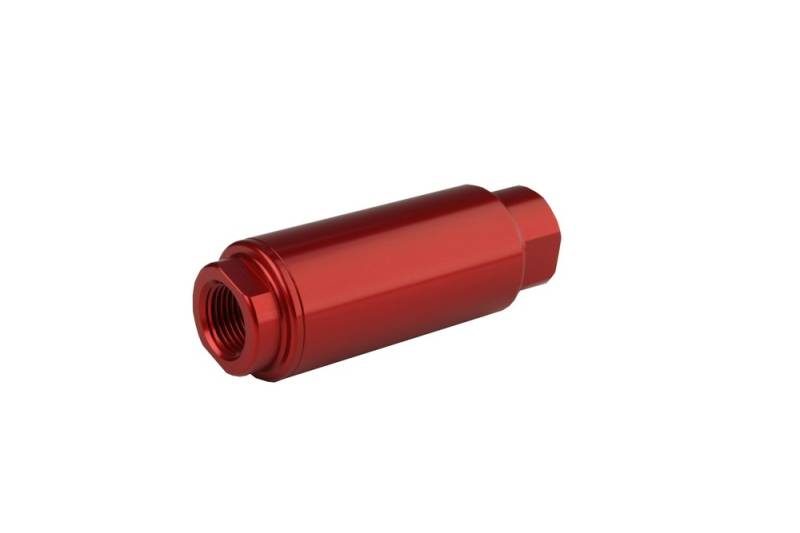

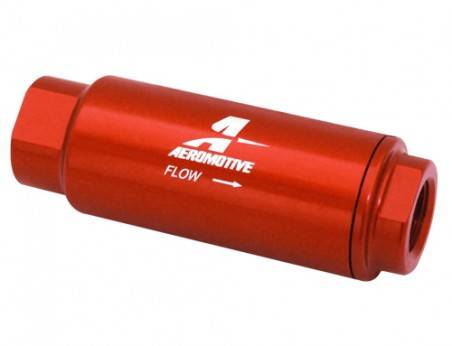

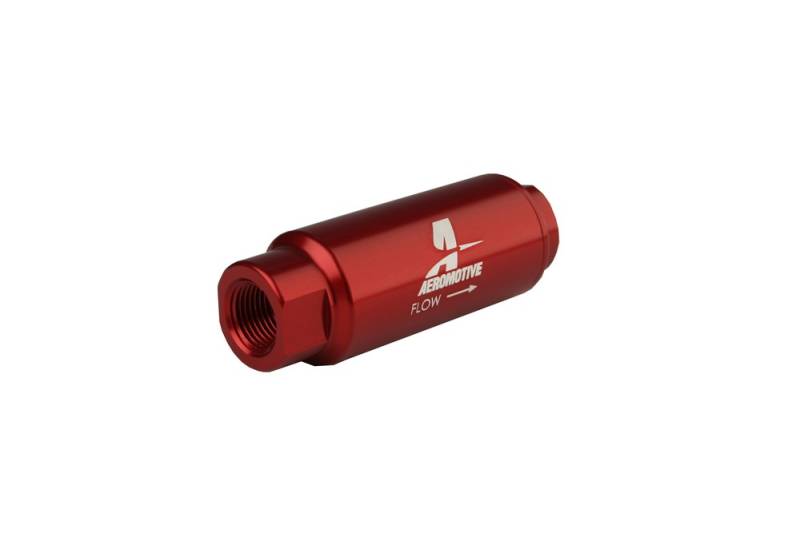

Aeromotive SS Series In-Line Fuel Filter - 3/8in NPT - 40 Micron Fabric Element

Filter, In-Line, 40-m Fabric Element, 3/8 ? NPT Port, Bright-Dip Red, SS Series, 1-1/4" OD.

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components. 40-micron fabric replaceable element. 3/8' NPT ports. Red, type II bright dip anodized finish.

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Clamps Included: No
Color: Red
End 1 Gender: Female
End 2 Gender: Female
Filter Element Included: Yes
Filter Element Material: Cellulose
Filter Housing Color: Red
Filter Housing Diameter: 1.25 IN
Filter Housing Finish: Anodized
Filter Housing Length: 3.5 IN
Filter Housing Material: Billet Aluminum
Fitting Type: 3/8 NPT
Fittings Included: No
Flow Rate: 2000 4U
Fuel Filter Style: Inline
Fuel Type: Gas / Diesel
Gasket Or Seal Included: Yes
Housing Material: Aluminum
Inlet Attachment: Female Thread
Inlet Outside Diameter: 3/8 NPT
Inlet Quantity: 1
Inlet Size: 3/8 NPT
Length: 3.5 IN
Maximum Fuel Pressure (psi): 70 PSI
Micron Rating: 40
Mounting Bracket Included: No
Mounting Type: External
Outlet Attachment: Female Thread
Outlet Outside Diameter: 3/8 NPT
Outlet Quantity: 1
Outlet Size: 3/8 NPT
Outside Diameter: 1.25 IN
Outside Diameter (In): 1.25 IN
Overall Length: 3.5 IN
Overall Length (In): 3.5 IN
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Quantity: Sold individually.
Shape: Straight
Smallest Particle Filtered: 40 microns
Title: Aeromotive SS Series 40-Micron Fuel Filter
Universal Or Specific Fit: Universal

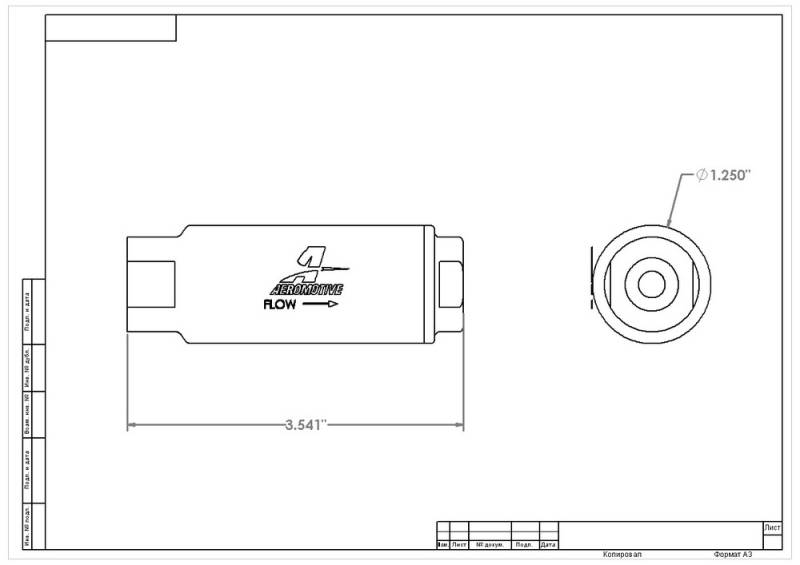

Associated Comments: SS Series fuel filter; red, type II bright dip anodized finish; compact size: 3.5" long x 1.25" diameter; 40-micron fabric element.

FITMENT NOTES

None
