Powerflex Mercedes-Benz A, CLA, & GLA Class Upper Engine Mount Insert (Black Series)

Mercedes-Benz A, CLA, & GLA Class Upper Engine Mount Insert (Black Series)

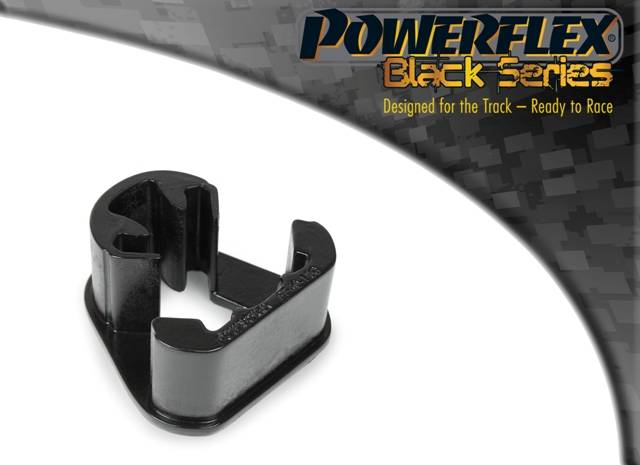

This is an insert to fit into the original mount to limit movement of the engine, providing stability under acceleration. A small increase in noise and vibration is to be expected. This should be considered a performance upgrade.
Upper mount fitments include: A CLASS W176 INC. A45 AMG (2012-2017), CLA CLASS W117 & W156 (2012-2016), GLA CLASS W156 (2012-2017) - see below for lower mount.
This part replaces OEM Part Number: A 246 240 08 09
Fitting Instructions:
Note: It should not be necessary to remove the engine mount from the vehicle.
1. Cut any internal rubber flashing and clean any corrosion from the mount as shown on figure 2.
2.Apply grease on the insert.
3. Fit the polyurethane insert into the engine mount from the top side until it sits in contact with the bracket, as shown in figures 3 and 4.
4. Tension all hardware to manufacturers recommended torque settings.

Why Powerflex?
Because Safety Matters

Powerflex bushings are engineered for each individual application. Our premium bushings improve performance, increase tire life, and enhance safety. Plus, every Powerflex part comes with a Lifetime Warranty, so you never have to worry about replacement parts again. That includes our growing line of jack pad adapters which allow you to safely and securely lift your vehicle for anything from major work to a quick tire rotation.

Our proprietary blended urethanes last longer than run-of-the-mill polyurethane you might find elsewhere. Powerflex polyurethane is formulated specifically for automotive applications that have unique environmental factors like vibration, oil, and varying load-types, yet our Street options display minimal NVH if any at all, even in instances such as these bushings, where our engineers have opted for Black Series bushings as the ideal option for street use.

ADDITIONAL INFORMATION

Type: Black Series
Unit of Measure: Unit

OEM Cross Reference: A 246 240 08 09

FITMENT NOTES

Mercedes-Benz / A Class / W176 Inc. A45 AMG (2012-2017)
Mercedes-Benz / CLA Class W117 & W156 (2012-2016)
Mercedes-Benz / GLA Class inc A45 AMG W156 (2012-2017)
