ACL BMW S54B32 Rod Bearings .001 Extra Oil Clearance 6B1569HX-STD

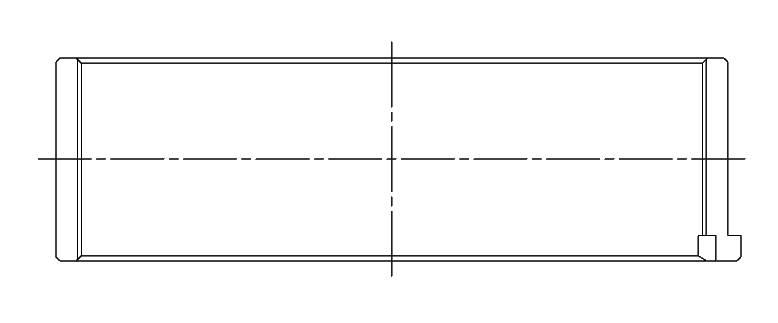

Connecting Rod Bearing Set 6 - Standard Size with extra .025mm (0.001") oil clearance (thinner)

ACL RACE Series performance engine bearings are recognized as a premier brand throughout the motorsports world. RACE Series rod and main bearings are standard components in Race engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides RACE Series performance bearings with the endurance and capability to perform where others cannot. These exceptional bearings are available for a variety of American, Asian and European performance engines

ADDITIONAL INFORMATION

ACL BMW S54B32 Rod Bearings .001 Extra Oil Clearance

Grade Type: Performance
Max Wall: 1.98 MM
Max Wall: 0.078 IN
Outside Diameter: 53.015 MM
Outside Diameter: 2.0872 IN
Outside Diameter: 53 MM
Outside Diameter: 2.0866 IN
Shaft Diameter: 48.991 MM
Shaft Diameter: 1.9288 IN
Shaft Diameter: 48.975 MM
Shaft Diameter: 1.9281 IN
Width: 0.63 IN
Width: 16 MM

FITMENT NOTES

2001-2006 BMW M3 (Aspiration: Naturally Aspirated & Engine Designation: S54 & Cylinder Head: DOHC & Liter: 3.2 & Engine(cc): 3246 & Cylinder: 6 & Block: L & Bore(in): 3.43 & Bore(mm): 87.0 & Stroke(in): 3.58 & Stroke(mm): 91.0 & Fuel: GAS); 2001-2002 BMW Z3 (Aspiration: Naturally Aspirated & Engine Designation: S54 & Cylinder Head: DOHC & Liter: 3.2 & Engine(cc): 3246 & Cylinder: 6 & Block: L & Bore(in): 3.43 & Bore(mm): 87.0 & Stroke(in): 3.58 & Stroke(mm): 91.0 & Fuel: GAS); 2006-2009 BMW Z4 (Aspiration: Naturally Aspirated & Engine Designation: S54 & Cylinder Head: DOHC & Liter: 3.2 & Engine(cc): 3246 & Cylinder: 6 & Block: L & Bore(in): 3.43 & Bore(mm): 87.0 & Stroke(in): 3.58 & Stroke(mm): 91.0 & Fuel: GAS)
