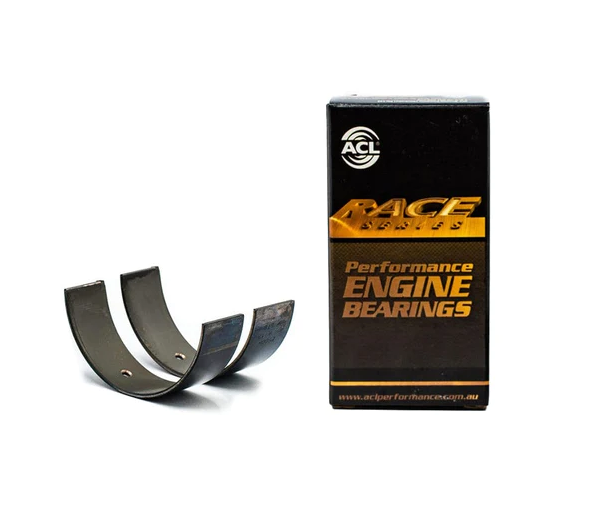

ACL Toyota 4AGE/4AGZE (1.6L) Standard Size High Performance Main Bearing Set 5M1695H-STD

Main Bearing Set 5 - Standard Size

ACL RACE Series performance engine bearings are recognized as a premier brand throughout the motorsports world. RACE Series rod and main bearings are standard components in Race engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides RACE Series performance bearings with the endurance and capability to perform where others cannot. These exceptional bearings are available for a variety of American, Asian and European performance engines

ADDITIONAL INFORMATION

ACL Toyota 4AGE/4AGZE (1.6L) Standard Size High Performance Main Bearing Set

Grade Type: Performance
Max Wall: 2.001 MM
Max Wall: 0.0788 IN
Outside Diameter: 52.05 MM
Outside Diameter: 2.0492 IN
Outside Diameter: 52.02 MM
Outside Diameter: 2.048 IN
Shaft Diameter: 48 MM
Shaft Diameter: 1.8898 IN
Shaft Diameter: 47.985 MM
Shaft Diameter: 1.8892 IN
Width: 19.9 MM
Width: 0.783 IN

FITMENT NOTES

1989-1997 Geo Prizm (Aspiration: Naturally Aspirated & Engine Designation: 4A-FE, 4A-GE & Cylinder Head: DOHC & Liter: 1.6 & Engine(cc): 1588, 1587 & Engine(ci): 98 & Cylinder: 4 & Block: L & Bore(in): 3.18 & Bore(mm): 81.0 & Stroke(in): 3.03 & Stroke(mm): 77.0 & Engine VIN: 6, 5 & Fuel: GAS); 1990-1997 Toyota Celica (Aspiration: Naturally Aspirated & Engine Designation: 4A-FE, 7A-FE & Cylinder Head: DOHC & Liter: 1.6, 1.8 & Engine(cc): 1587, 1762 & Engine(ci): 107 & Cylinder: 4 & Block: L & Bore(in): 3.18 & Bore(mm): 81.0 & Stroke(in): 3.03, 3.37 & Stroke(mm): 77.0, 85.5 & Engine VIN: A, B & Fuel: GAS); 1983-1997 Toyota Corolla (Aspiration: Naturally Aspirated & Engine Designation: 4AC, 4ALC, 4A-GEC, 4A-GELC, 4A-FE, 4A-GE, 4AF, 7A-FE & Cylinder Head: SOHC, DOHC & Liter: 1.6, 1.8 & Engine(cc): 1587, 1762 & Engine(ci): 107 & Cylinder: 4 & Block: L & Bore(in): 3.18 & Bore(mm): 81.0 & Stroke(in): 3.03, 3.37 & Stroke(mm): 77.0, 85.5 & Engine VIN: A, B & Fuel: GAS); 1985-1989 Toyota MR2 (Aspiration: Naturally Aspirated, Supercharged & Engine Designation: 4A-GELC, 4A-GZE & Cylinder Head: DOHC & Liter: 1.6 & Engine(cc): 1587 & Cylinder: 4 & Block: L & Bore(in): 3.18 & Bore(mm): 81.0 & Stroke(in): 3.03 & Stroke(mm): 77.0 & Engine VIN: A & Fuel: GAS); 1981-1988 Toyota Tercel (Aspiration: Naturally Aspirated & Engine Designation: 3AC & Cylinder Head: SOHC & Liter: 1.5 & Engine(cc): 1452 & Cylinder: 4 & Block: L & Bore(in): 3.05 & Bore(mm): 77.5 & Stroke(in): 3.03 & Stroke(mm): 77.0 & Engine VIN: A & Fuel: GAS)
