ACL Honda/Acura 4 B18C1/C5 1797cc (Standard Size) Race Series Rod Bearing Set 4B1925HXD-STD

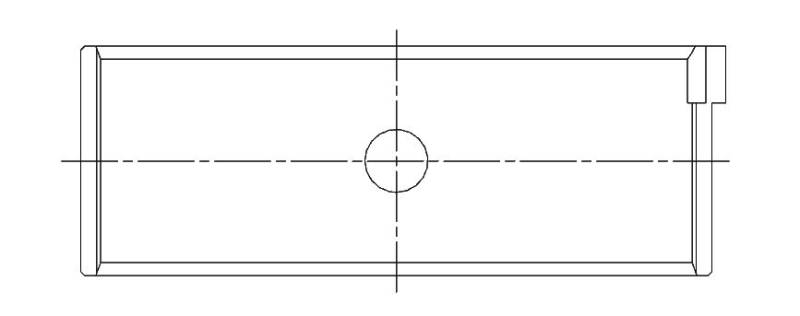

Connecting Rod Bearing Set 4 - Standard Size with extra .025mm (0.001") oil clearance (thinner) w/dowel hole

ACL RACE Series performance engine bearings are recognized as a premier brand throughout the motorsports world. RACE Series rod and main bearings are standard components in Race engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides RACE Series performance bearings with the endurance and capability to perform where others cannot. These exceptional bearings are available for a variety of American, Asian and European performance engines

ADDITIONAL INFORMATION

ACL Honda/Acura 4 B18C1/C5 1797cc (Standard Size) Race Series Rod Bearing Set

Grade Type: Performance
Max Wall: 1.489 MM
Max Wall: 0.0586 IN
Outside Diameter: 48.024 MM
Outside Diameter: 48 MM
Outside Diameter: 1.8898 IN
Outside Diameter: 1.8907 IN
Shaft Diameter: 45 MM
Shaft Diameter: 44.976 MM
Shaft Diameter: 1.7717 IN
Shaft Diameter: 1.7707 IN
Width: 17.5 MM
Width: 0.689 IN

Interchange: Clevite CB-1785H

FITMENT NOTES

1994-2001 Acura Integra (Aspiration: Naturally Aspirated & Engine Designation: B18C1, B18C5 & Cylinder Head: DOHC & Liter: 1.8 & Engine(cc): 1797 & Cylinder: 4 & Block: L & Bore(in): 3.19 & Bore(mm): 81.0 & Stroke(in): 3.43 & Stroke(mm): 87.0 & Fuel: GAS & Engine Version: VTEC)
