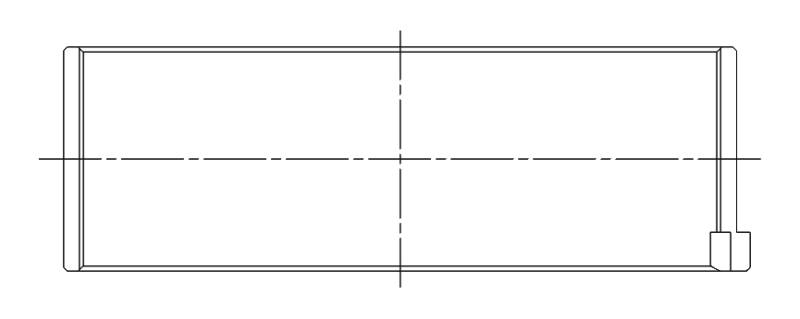

ACL L3-VDT MZR Duratec 2260cc Turbo Standard Size High Performance Rod Bearing Set 4B8172HX-STD

Connecting Rod Bearing Set 4 - Standard Size with extra .025mm (0.001") oil clearance (thinner)

ACL RACE Series performance engine bearings are recognized as a premier brand throughout the motorsports world. RACE Series rod and main bearings are standard components in Race engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides RACE Series performance bearings with the endurance and capability to perform where others cannot. These exceptional bearings are available for a variety of American, Asian and European performance engines

ADDITIONAL INFORMATION

ACL L3-VDT MZR Duratec 2260cc Turbo Standard Size High Performance Rod Bearing Set

Grade Type: Performance
Max Wall: 1.487 MM
Max Wall: 0.0585 IN
Outside Diameter: 55.034 MM
Outside Diameter: 2.1667 IN
Outside Diameter: 55.021 MM
Outside Diameter: 2.1662 IN
Shaft Diameter: 52 MM
Shaft Diameter: 2.0472 IN
Shaft Diameter: 51.98 MM
Shaft Diameter: 2.0465 IN
Width: 0.669 IN
Width: 17 MM

Interchange: Clevite CB-1925HX

FITMENT NOTES

2013-2016 Ford Fusion; 2022-2024 Ford Maverick; 2012-2024 Ford Edge; 2016-2025 Ford Explorer; 2013-2018 Ford Focus; 2015-2025 Ford Mustang; 2019-2025 Ford Ranger; 2019-2023 Lincoln Nautilus
