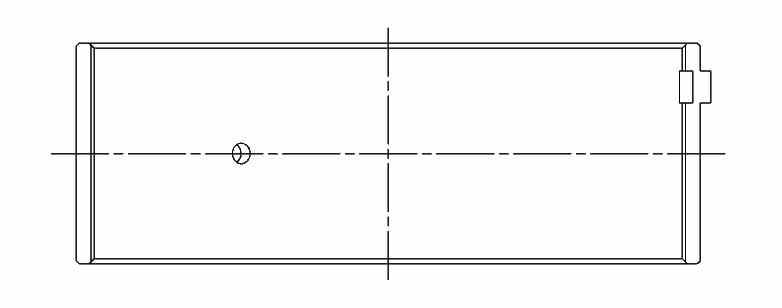

ACL Toyota 1FZ-FE Standard Size High Performance Rod Bearing Set 6B7990H-STD

Connecting Rod Bearing Set 6

ACL RACE Series performance engine bearings are recognized as a premier brand throughout the motorsports world. RACE Series rod and main bearings are standard components in Race engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides RACE Series performance bearings with the endurance and capability to perform where others cannot. These exceptional bearings are available for a variety of American, Asian and European performance engines

ADDITIONAL INFORMATION

ACL Toyota 1FZ-FE Standard Size High Performance Rod Bearing Set

Grade Type: Performance
Max Wall: 1.745 MM
Max Wall: 0.0687 IN
Outside Diameter: 60.54 MM
Outside Diameter: 2.3835 IN
Outside Diameter: 60.52 MM
Outside Diameter: 2.3827 IN
Shaft Diameter: 57 MM
Shaft Diameter: 2.2441 IN
Shaft Diameter: 56.98 MM
Shaft Diameter: 2.2433 IN
Width: 0.843 IN
Width: 21.4 MM

FITMENT NOTES

1996-1997 Lexus LX450 (Aspiration: Naturally Aspirated & Engine Designation: 1FZ-FE & Cylinder Head: DOHC & Liter: 4.5 & Engine(cc): 4477 & Cylinder: 6 & Block: L & Bore(in): 3.94 & Bore(mm): 100.0 & Stroke(in): 3.74 & Stroke(mm): 95.0 & Engine VIN: J & Fuel: GAS); 1993-1997 Toyota Land Cruiser (Aspiration: Naturally Aspirated & Engine Designation: 1FZ-FE & Cylinder Head: DOHC & Liter: 4.5 & Engine(cc): 4477 & Cylinder: 6 & Block: L & Bore(in): 3.94 & Bore(mm): 100.0 & Stroke(in): 3.74 & Stroke(mm): 95.0 & Engine VIN: D, J & Fuel: GAS)
