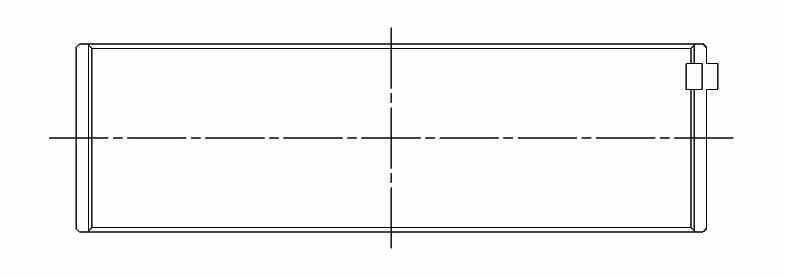

ACL VW/Audi VR6 V6 Standard Size High Performance W/ Extra Oil Clearance Rod Bearing Set 6B5530HX-STD

Connecting Rod Bearing set 6 - Standard Size with extra .025mm (0.001") oil clearance (thinner)

ACL RACE Series performance engine bearings are recognized as a premier brand throughout the motorsports world. RACE Series rod and main bearings are standard components in Race engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides RACE Series performance bearings with the endurance and capability to perform where others cannot. These exceptional bearings are available for a variety of American, Asian and European performance engines

ADDITIONAL INFORMATION

ACL VW/Audi VR6 V6 Standard Size High Performance W/ Extra Oil Clearance Rod Bearing Set

Grade Type: Performance
Max Wall: 1.391 MM
Max Wall: 0.0548 IN
Outside Diameter: 56.819 MM
Outside Diameter: 2.237 IN
Outside Diameter: 56.8 MM
Outside Diameter: 2.2362 IN
Shaft Diameter: 53.978 MM
Shaft Diameter: 2.1251 IN
Shaft Diameter: 53.958 MM
Shaft Diameter: 2.1243 IN
Width: 0.669 IN
Width: 17 MM

FITMENT NOTES

2004-2009 Audi A3 Quattro (Aspiration: Naturally Aspirated & Engine Designation: BUB, CBRA & Cylinder Head: DOHC & Liter: 3.2 & Engine(cc): 3189 & Engine(ci): 195 & Cylinder: 6 & Block: V & Bore(in): 3.31 & Bore(mm): 84.0 & Stroke(in): 3.78 & Stroke(mm): 96.0 & Fuel: GAS); 2004-2009 Audi TT Quattro (Aspiration: Naturally Aspirated & Engine Designation: BHE, BUB, CBRA & Cylinder Head: DOHC & Liter: 3.2 & Engine(cc): 3189 & Engine(ci): 195 & Cylinder: 6 & Block: V & Bore(in): 3.31 & Bore(mm): 84.0 & Stroke(in): 3.78 & Stroke(mm): 96.0 & Fuel: GAS); 2004-2007 Volkswagen Touareg (Aspiration: Naturally Aspirated & Engine Designation: BAA, BMX & Cylinder Head: DOHC & Liter: 3.2 & Engine(cc): 3200, 3189 & Engine(ci): 195 & Cylinder: 6 & Block: V & Bore(in): 3.31 & Bore(mm): 84.0 & Stroke(in): 3.78 & Stroke(mm): 96.0 & Fuel: GAS); 2007-2008 Volkswagen Eos (Aspiration: Naturally Aspirated & Engine Designation: BUB & Cylinder Head: DOHC & Liter: 3.2 & Engine(cc): 3189 & Engine(ci): 195 & Cylinder: 6 & Block: V & Bore(in): 3.31 & Bore(mm): 84.0 & Stroke(in): 3.78 & Stroke(mm): 96.0 & Fuel: GAS); 2003-2008 Volkswagen R32 (Aspiration: Naturally Aspirated & Engine Designation: CBRA & Cylinder Head: DOHC & Liter: 3.2 & Engine(cc): 3189 & Engine(ci): 195 & Cylinder: 6 & Block: V & Bore(in): 3.31 & Bore(mm): 84.0 & Stroke(in): 3.78 & Stroke(mm): 96.0 & Fuel: GAS)
