ACL Nissan CA18/C20 Standard Size High Performance Rod Bearing Set 4B1630H-STD

Connecting Rod Bearing Set 4

ACL RACE Series performance engine bearings are recognized as a premier brand throughout the motorsports world. RACE Series rod and main bearings are standard components in Race engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides RACE Series performance bearings with the endurance and capability to perform where others cannot. These exceptional bearings are available for a variety of American, Asian and European performance engines

ADDITIONAL INFORMATION

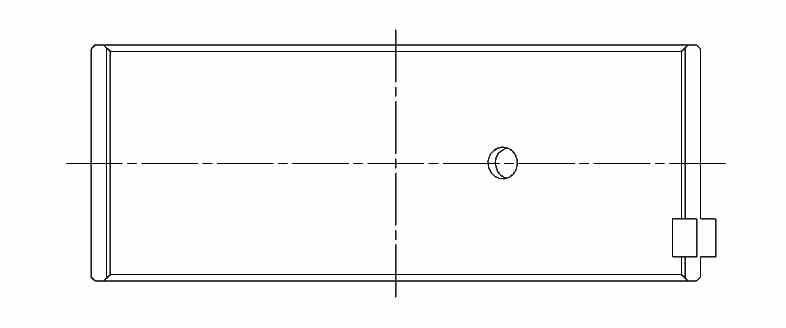

ACL Nissan CA18/C20 Standard Size High Performance Rod Bearing Set

Grade Type: Performance
Max Wall: 1.505 MM
Max Wall: 0.0593 IN
Outside Diameter: 48.013 MM
Outside Diameter: 1.8903 IN
Outside Diameter: 48 MM
Outside Diameter: 1.8898 IN
Shaft Diameter: 44.974 MM
Shaft Diameter: 1.7706 IN
Shaft Diameter: 44.961 MM
Shaft Diameter: 1.7701 IN
Width: 0.732 IN
Width: 18.6 MM

Interchange: KING CR 407XP

FITMENT NOTES

1984-1988 Nissan 200SX (Aspiration: Naturally Aspirated, Turbocharged & Engine Designation: CA20E, CA18ET & Cylinder Head: SOHC & Liter: 2.0, 1.8 & Engine(cc): 1974, 1809 & Cylinder: 4 & Block: L & Bore(in): 3.33, 3.27 & Bore(mm): 84.5, 83.0 & Stroke(in): 3.46, 3.29 & Stroke(mm): 88.0, 83.6 & Engine VIN: P, C, H & Fuel: GAS); 1988-1989 Nissan Pulsar NX (Aspiration: Naturally Aspirated & Engine Designation: CA18DE & Cylinder Head: DOHC & Liter: 1.8 & Engine(cc): 1809 & Cylinder: 4 & Block: L & Bore(in): 3.27 & Bore(mm): 83.0 & Stroke(in): 3.29 & Stroke(mm): 83.6 & Engine VIN: C & Fuel: GAS); 1983-1986 Nissan Sentra (Aspiration: Naturally Aspirated & Engine Designation: CD17 & Cylinder Head: SOHC & Liter: 1.7 & Engine(cc): 1688 & Cylinder: 4 & Block: L & Bore(in): 3.15 & Bore(mm): 80.0 & Stroke(in): 3.29 & Stroke(mm): 83.6 & Engine VIN: S & Fuel: DIESEL); 1982-1989 Nissan Stanza (Aspiration: Naturally Aspirated & Engine Designation: CA20S, CA20E & Cylinder Head: SOHC & Liter: 2.0 & Engine(cc): 1974 & Cylinder: 4 & Block: L & Bore(in): 3.33 & Bore(mm): 84.5 & Stroke(in): 3.46 & Stroke(mm): 88.0 & Engine VIN: H & Fuel: GAS)
