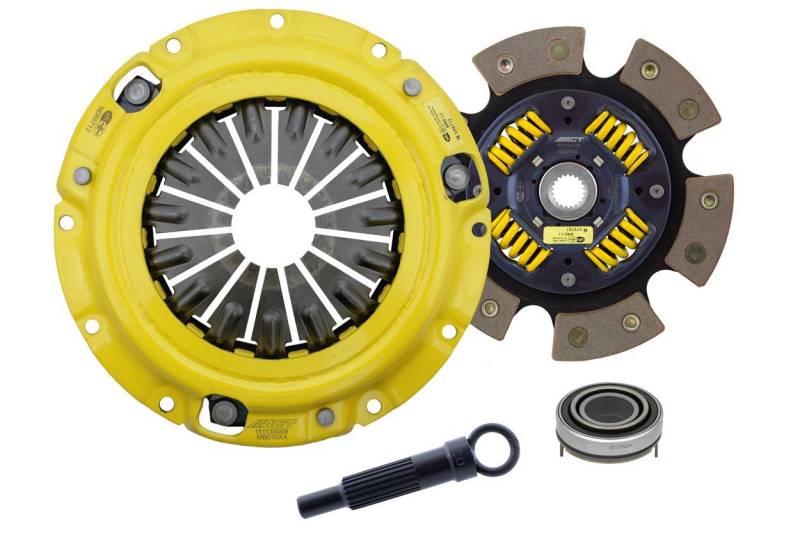

ACT 1990 Eagle Talon MaXX/Race Sprung 6 Pad Clutch Kit

MB1-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

"Excellence in Performance", backed by the best one-year warranty in the industry!

Heavy to very heavy pedal effort, aggressive engagement, quick shifts, mild to moderate gear rattle
Moderate friction life, extended by ACT's exclusive diaphragm design
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommended for high horsepower street or race use
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

ADDITIONAL INFORMATION

ACT 1990 Eagle Talon MaXX/Race Sprung 6 Pad Clutch Kit

Pressure Plate Type: MaXX
Release Bearing Included: Yes
Clutch Disc Diameter: 8.8 IN
Clutch Disc Diameter: 224 MM
Disc Material: Ceramic
Input Spline Quantity: 20
Input Shaft Diameter: 0.875 IN
Alignment Tool Included: Yes
California Proposition 65: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Product Weight (lbs.): 12.6
Title: ACT MaXX/Race Sprung 6 Pad Kit
Torque Capacity (ft/lbs.): 570
Torque Capacity Over OE: 125%

FITMENT NOTES

1990-1994 Plymouth Laser
1990-1998 Eagle Talon
1990-2005 Mitsubishi Eclipse
1991-1996 Dodge Stealth
1991-1999 Mitsubishi 3000GT
1991-1999 Mitsubishi Galant
1992-1994 Plymouth Colt
1992-1995 Mitsubishi Expo
1992-1996 Eagle Summit
2003-2004 Chrysler Sebring
