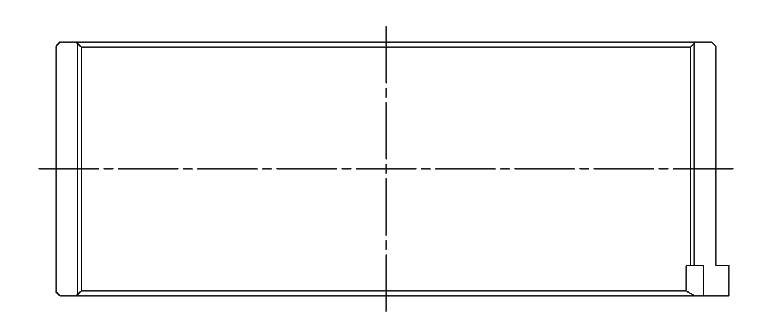

ACL BMW E30 M3 S14B20/23/25 I4 Connecting Rod Bearing Set (Size STD) 4B1568H-STD

Connecting Rod Bearing Set 4

ACL RACE Series performance engine bearings are recognized as a premier brand throughout the motorsports world. RACE Series rod and main bearings are standard components in Race engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides RACE Series performance bearings with the endurance and capability to perform where others cannot. These exceptional bearings are available for a variety of American, Asian and European performance engines

ADDITIONAL INFORMATION

ACL BMW E30 M3 S14B20/23/25 I4 Connecting Rod Bearing Set (Size STD)

Grade Type: Performance
Max Wall: 1.993 MM
Max Wall: 0.0785 IN
Outside Diameter: 52.015 MM
Outside Diameter: 2.0478 IN
Outside Diameter: 52 MM
Outside Diameter: 2.0472 IN
Shaft Diameter: 47.991 MM
Shaft Diameter: 1.8894 IN
Shaft Diameter: 47.975 MM
Shaft Diameter: 1.8888 IN
Width: 0.787 IN
Width: 20 MM

Interchange: KING CR4596XP

FITMENT NOTES

1988-1991 BMW M3 (Aspiration: Naturally Aspirated & Engine Designation: S14 & Cylinder Head: DOHC & Liter: 2.3 & Engine(cc): 2302 & Cylinder: 4 & Block: L & Bore(in): 3.68 & Bore(mm): 93.4 & Stroke(in): 3.31 & Stroke(mm): 84.0 & Fuel: GAS)
