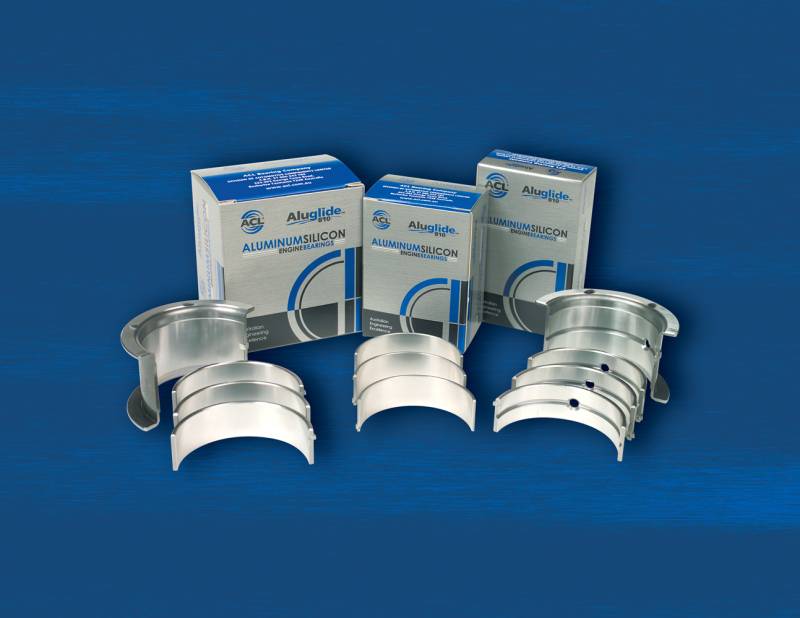

ACL Chev. V8 305-350-400 1967-07 Engine Connecting Rod Bearing Set 8B663AO/S2-10

Connecting Rod Bearing Set 8 - .25mm / 0.010" undersize and .050mm / 0.002" oversize

Both foreign and domestic car manufacturers install bimetal (aluminum) bearings as standard OE components in today�s engines. The OEMs made the switch from lead-content bearings for environmental considerations. Most replacement bearings are of the same metallurgy. But there are differences in their composition and construction. Our aluminum rod and main bearing have some features that provide advantages over ordinary ones. Therefore, we feel they provide the ideal physical and metallurgy advantages required of OEM replacements.

ADDITIONAL INFORMATION

ACL Chev. V8 305-350-400 1967-07 Engine Connecting Rod Bearing Set

Grade Type: ACL OEM Replacement
Max Wall: 0.0619 IN
Max Wall: 1.572 MM
Outside Diameter: 56.457 MM
Outside Diameter: 2.2227 IN
Outside Diameter: 56.470 MM
Outside Diameter: 2.2232 IN
Shaft Diameter: 53.065 MM
Shaft Diameter: 2.09 MM
Shaft Diameter: 2.089 IN
Shaft Diameter: 53.09 IN
Width: 21.25 MM
Width: 0.837 IN

Interchange: Clevite CB-1776A

FITMENT NOTES

2011-2012 Workhorse Custom Chassis W62 (Aspiration: Naturally Aspirated & Engine Designation: LQ4 & Cylinder Head: OHV & Liter: 6.0 & Engine(cc): 5967 & Engine(ci): 364 & Cylinder: 8 & Block: V & Bore(mm): 101.6 & Stroke(in): 3.62 & Stroke(mm): 92.0 & Engine VIN: U & Fuel: GAS & Engine Version: Vortec)
