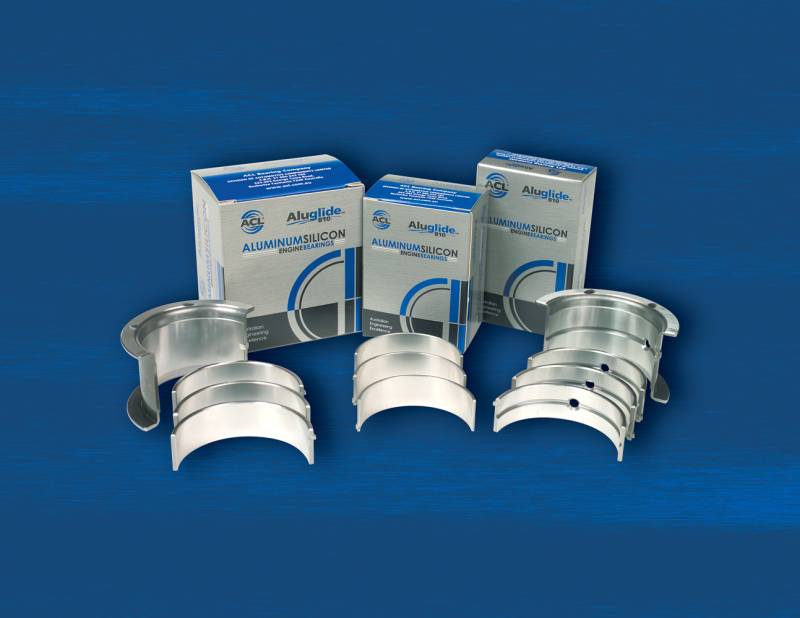

ACL Ford Prod. V8 255-289-302 1962-98 Engine Connecting Rod Bearing Set 8B634A-20

8B634A-20
Not Available
Availability: Item usually ships within 24 hours
Was: $29.74
Sale: $25.60
Save: 14%
Save: $4.14

Description

Connecting Rod Bearing Set 8 - .50mm / 0.020" undersize

Both foreign and domestic car manufacturers install bimetal (aluminum) bearings as standard OE components in today๏ฟฝs engines. The OEMs made the switch from lead-content bearings for environmental considerations. Most replacement bearings are of the same metallurgy. But there are differences in their composition and construction. Our aluminum rod and main bearing have some features that provide advantages over ordinary ones. Therefore, we feel they provide the ideal physical and metallurgy advantages required of OEM replacements.

ADDITIONAL INFORMATION

ACL Ford Prod. V8 255-289-302 1962-98 Engine Connecting Rod Bearing Set

Grade Type: ACL OEM Replacement
Max Wall: 1.46 MM
Max Wall: 0.0575 IN
Outside Diameter: 56.891 MM
Outside Diameter: 56.871 MM
Outside Diameter: 2.2398 IN
Outside Diameter: 2.239 IN
Shaft Diameter: 53.439 MM
Shaft Diameter: 2.1036 IN
Shaft Diameter: 2.1028 IN
Shaft Diameter: 53.419 MM
Width: 18.44 MM
Width: 0.726 IN

Interchange: Clevite CB634A

FITMENT NOTES

1962-1963 Ford Country Sedan (Aspiration: Naturally Aspirated & Cylinder Head: OHV & Liter: 3.6 & Engine(cc): 3622 & Engine(ci): 221 & Cylinder: 8 & Block: V & Bore(in): 3.50 & Bore(mm): 88.9 & Stroke(in): 2.88 & Stroke(mm): 73.0 & Valves: 16 & Fuel: GAS); 1963 Ford 300 (Aspiration: Naturally Aspirated & Cylinder Head: OHV & Liter: 4.3, 4.7 & Engine(cc): 4261, 4727 & Engine(ci): 260, 289 & Cylinder: 8 & Block: V & Bore(in): 3.80, 4.00 & Bore(mm): 96.4, 101.6 & Stroke(in): 2.88 & Stroke(mm): 73.0 & Valves: 16 & Fuel: GAS); 1975-1996 Ford F-150 (Aspiration: Naturally Aspirated & Cylinder Head: OHV & Liter: 5.0 & Engine(ci): 302 & Cylinder: 8 & Block: V & Bore(in): 4.00 & Bore(mm): 101.6 & Stroke(in): 3.00 & Stroke(mm): 76.2 & Valves: 16 & Fuel: GAS); 1980-1982 Ford Fairmont (Aspiration: Naturally Aspirated & Cylinder Head: OHV & Liter: 4.2 & Engine(ci): 255 & Cylinder: 8 & Block: V & Bore(in): 3.68 & Bore(mm): 93.5 & Stroke(in): 3.00 & Stroke(mm): 76.2 & Valves: 16 & Fuel: GAS); 1964-1995 Ford Mustang (Aspiration: Naturally Aspirated & Cylinder Head: OHV & Liter: 4.7, 5.0 & Engine(cc): 4727 & Engine(ci): 289, 302 & Cylinder: 8 & Block: V & Bore(in): 4.00 & Bore(mm): 101.6 & Stroke(in): 2.88, 3.00 & Stroke(mm): 73.0, 76.2 & Valves: 16 & Fuel: GAS)

Compatible Vehicles

Details

Shipping Information

  • Item Requires Shipping
  • 0.3 lbs.
  • W2.9500” x H1.7700” x L4.9200”
  • Free Shipping!
