ACL 69-96 Toyota 20R/22RR Standard Size Aluminum Rod Bearing Set 4B1701A-STD

Connecting Rod Bearing Set 4 - Standard

Both foreign and domestic car manufacturers install bimetal (aluminum) bearings as standard OE components in today�s engines. The OEMs made the switch from lead-content bearings for environmental considerations. Most replacement bearings are of the same metallurgy. But there are differences in their composition and construction. Our aluminum rod and main bearing have some features that provide advantages over ordinary ones. Therefore, we feel they provide the ideal physical and metallurgy advantages required of OEM replacements.

ADDITIONAL INFORMATION

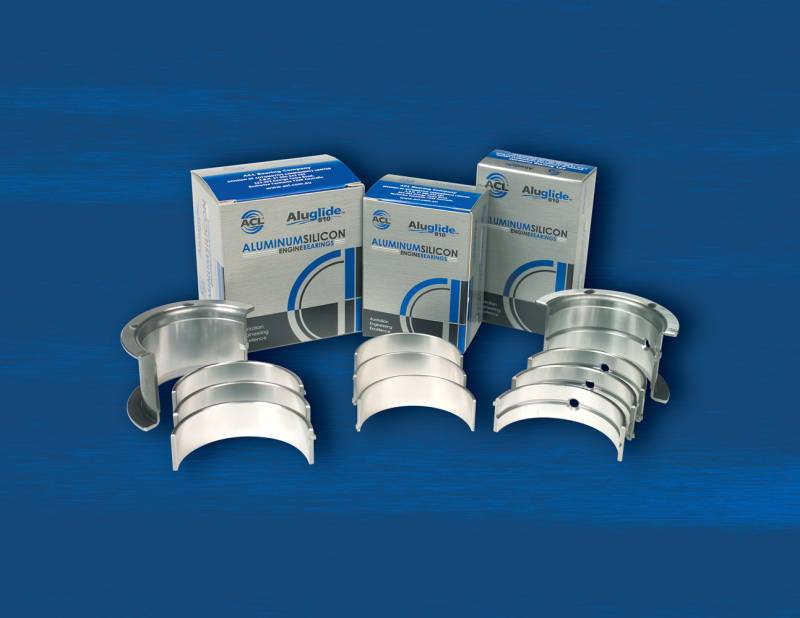

ACL 69-96 Toyota 20R/22RR Standard Size Aluminum Rod Bearing Set

Grade Type: ACL OEM Replacement
Max Wall: 0.0588 IN
Max Wall: 1.494 MM
Outside Diameter: 2.2047 IN
Outside Diameter: 56.000 MM
Outside Diameter: 2.2056 IN
Outside Diameter: 56.022 MM
Shaft Diameter: 2.0857 IN
Shaft Diameter: 52.977 MM
Shaft Diameter: 53.000 MM
Shaft Diameter: 2.0866 IN
Width: 0.866 IN
Width: 22.00 MM

Interchange: KING CR4129AM

FITMENT NOTES

1975-1980 Toyota Celica (Aspiration: Naturally Aspirated & Engine Designation: 20R & Cylinder Head: SOHC & Liter: 2.2 & Engine(cc): 2189 & Cylinder: 4 & Block: L & Bore(in): 3.48 & Bore(mm): 88.5 & Stroke(in): 3.50 & Stroke(mm): 89.0 & Engine VIN: R & Valves: 8 & Fuel: GAS); 1969-1971 Toyota Corona (Aspiration: Naturally Aspirated & Engine Designation: 8RC, 8R & Cylinder Head: SOHC & Liter: 1.9 & Engine(cc): 1858 & Engine(ci): 113 & Cylinder: 4 & Block: L & Bore(in): 3.39 & Bore(mm): 86.0 & Stroke(in): 3.15 & Stroke(mm): 80.0 & Valves: 8 & Fuel: GAS); 1981-1990 Toyota Pickup (Aspiration: Naturally Aspirated & Engine Designation: 22R, 22REC & Cylinder Head: SOHC & Liter: 2.4 & Engine(cc): 2366 & Cylinder: 4 & Block: L & Bore(in): 3.62 & Bore(mm): 92.0 & Stroke(in): 3.50 & Stroke(mm): 89.0 & Engine VIN: R & Valves: 8 & Fuel: GAS)
