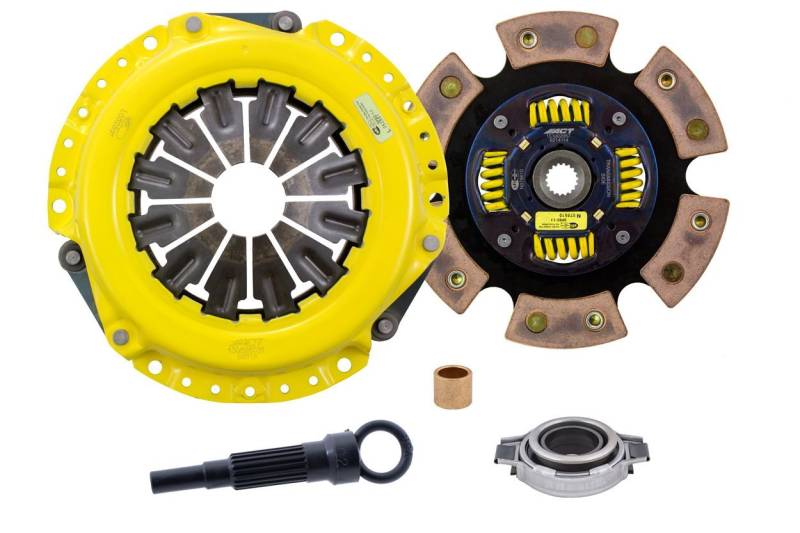

ACT 1996 Nissan 200SX XT/Race Sprung 6 Pad Clutch Kit

NX9-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

"Excellence in Performance", backed by the best one-year warranty in the industry!

Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
Moderate friction life, extended by ACT's exclusive diaphragm design
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommended for high horsepower street or race use
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

ADDITIONAL INFORMATION

ACT 1996 Nissan 200SX XT/Race Sprung 6 Pad Clutch Kit

Pilot Bushing Included: Yes
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 8.4 IN
Clutch Disc Diameter: 214 MM
Disc Material: Ceramic
Input Spline Quantity: 18
Input Shaft Diameter: 0.8125 IN
Alignment Tool Included: Yes
California Proposition 65: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Product Weight (lbs.): 11.4
Title: ACT XT/Race Sprung 6 Pad Kit
Torque Capacity (ft/lbs.): 410
Torque Capacity Over OE: 136%

FITMENT NOTES

1991-1993 Nissan NX
1991-2002 INFINITI G20
1991-2006 Nissan Sentra
1995-1998 Nissan 200SX
