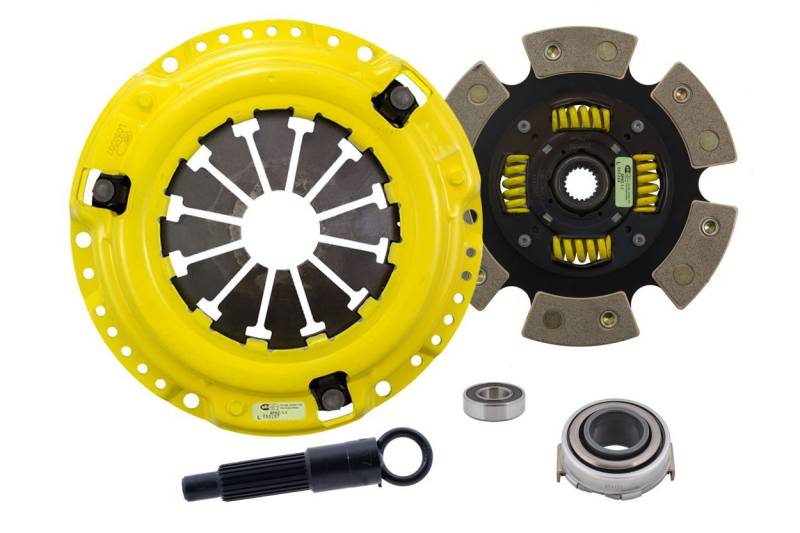

ACT 1992 Honda Civic MaXX/Race Sprung 6 Pad Clutch Kit

HC5-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

"Excellence in Performance", backed by the best one-year warranty in the industry!

Heavy to very heavy pedal effort, aggressive engagement, quick shifts, mild to moderate gear rattle
Moderate friction life, extended by ACT's exclusive diaphragm design
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommended for high horsepower street or race use
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

ADDITIONAL INFORMATION

ACT 1992 Honda Civic MaXX/Race Sprung 6 Pad Clutch Kit

Pilot Bushing Included: Yes
Pressure Plate Type: MaXX
Release Bearing Included: Yes
Clutch Disc Diameter: 8.3 IN
Clutch Disc Diameter: 212 MM
Disc Material: Ceramic
Input Spline Quantity: 20
Input Shaft Diameter: 0.875 IN
Alignment Tool Included: Yes
California Proposition 65: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Product Weight (lbs.): 11.2
Title: ACT MaXX/Race Sprung 6 Pad Kit
Torque Capacity (ft/lbs.): 420
Torque Capacity Over OE: 156%

FITMENT NOTES

1992-2005 Honda Civic
1993-1997 Honda Civic del Sol
1997-2005 Acura EL
