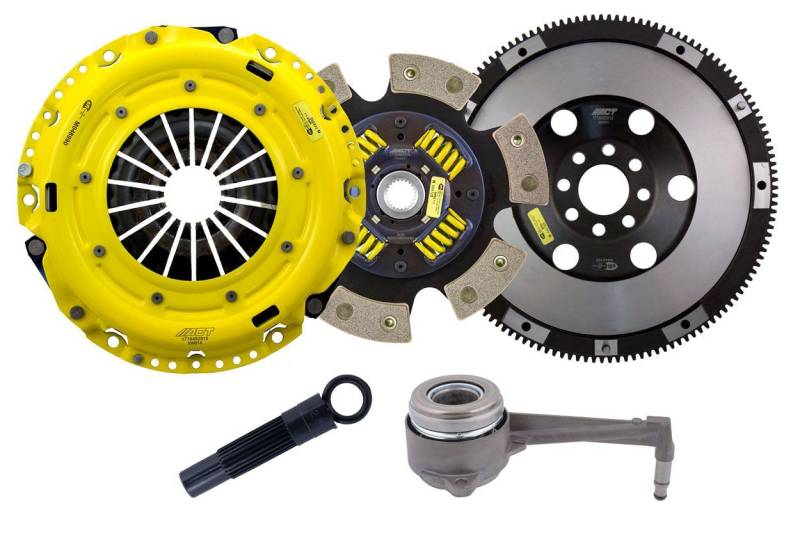

ACT 2008 Audi A3 HD/Race Sprung 6 Pad Clutch Kit

VW8-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

"Excellence in Performance", backed by the best one-year warranty in the industry!

Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
Moderate friction life, extended by ACT's exclusive diaphragm design
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommended for high horsepower street or race use
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

ADDITIONAL INFORMATION

ACT 2008 Audi A3 HD/Race Sprung 6 Pad Clutch Kit

Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 9.4 IN
Clutch Disc Diameter: 240 MM
Disc Material: Ceramic
Input Spline Quantity: 23
Input Shaft Diameter: 0.9375 IN
Alignment Tool Included: Yes
California Proposition 65: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Part Fitment Requirement: Must use ACT flywheel (included in kit).
Product Weight (lbs.): 29.9
Title: ACT HD/Race Sprung 6 Pad Kit
Torque Capacity (ft/lbs.): 505
Torque Capacity Over OE: 66%

FITMENT NOTES

2008-2013 Audi A3
2008-2014 Volkswagen GTI
2008-2018 Volkswagen Jetta
2009-2010 Volkswagen Passat CC
2009-2011 Volkswagen Eos
2009-2016 Volkswagen CC
2012-2016 Volkswagen Beetle
2013-2013 Volkswagen Golf
