TEIN FLEX Z Coilovers 2005-2007 SAAB 9-2X GGA AERO 2000 4WD

FLEX Z inherits all the features and quality of STREET FLEX but the adoption of new platform allows its price to be set at amazingly low range.

After careful consideration, we came to the conclusion that we need to establish new manufacturing system and to develop new product platform, in order to achieve low prices the customers demand. Until now, all TEIN dampers can be disassembled for overhaul; however, we introduce new "Sealed Structure" to FLEX Z.

Full-Length Ride Height Adjustment Feature
Twin-Tube Structure
Damping Force Adjustment System
Complete Kit with Upper Mount
1-Full-Car-Kit
Ride Height Adjustment with Little or No Change in Ride Quality
For Low Resiliency & Securing Sufficient Stroke
16-level Linear Damping Force Adjustment System
Exclusively Designed Upper Mounts are Included (Except Some Models)
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs

ADDITIONAL INFORMATION

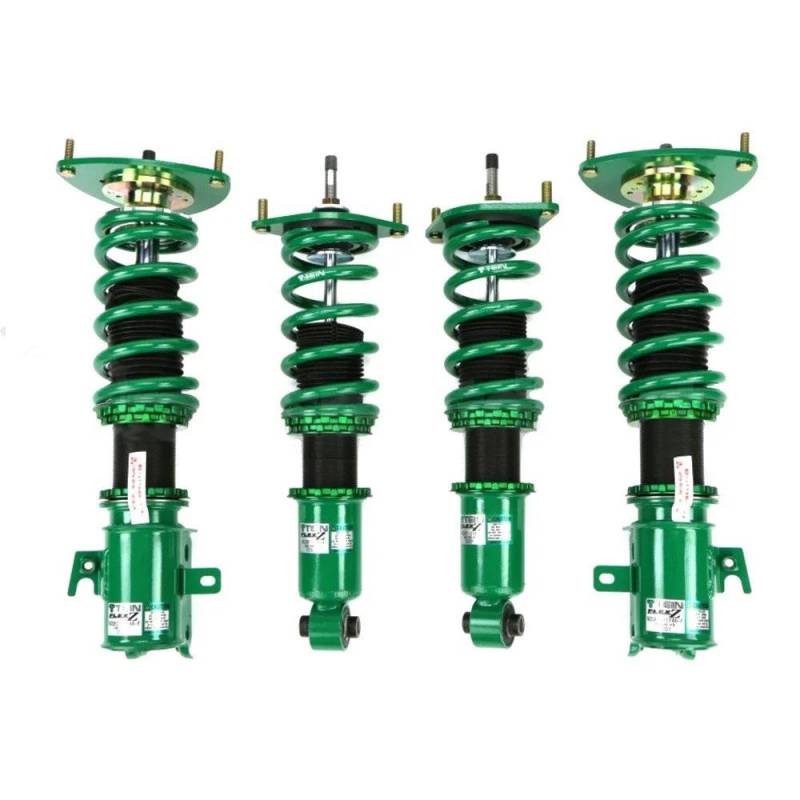

Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.

PRODUCT: FLEX Z
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: Y
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
FRONT UPPER MOUNT: CAMBER ADJ
FRONT RECOMMENDED RIDE HEIGHT (mm): -45
FRONT RECOMMENDED RIDE HEIGHT (inch): -1.8
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -116
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -4.6
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -18
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -0.7
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -55
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2.2
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -35
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.4
FRONT SPRING RATE (kgf/mm): 6
FRONT SPRING RATE (lbs/in): 336
FRONT SPRING SP PART#: SB060-13200S-C
FRONT SPRING FREE LENGTH (mm): 200
FRONT SPRING I.D. (mm): ID70
REAR DAMPING FORCE ADJUSTMENT: Y
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
REAR UPPER MOUNT: R/U
REAR RECOMMENDED RIDE HEIGHT (mm): -40
REAR RECOMMENDED RIDE HEIGHT (inch): -1.6
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -80
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.1
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 15
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0.6
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -50
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -30
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.2
REAR SPRING RATE (kgf/mm): 5
REAR SPRING RATE (lbs/in): 280
REAR SPRING SP PART#: SY050-13225-C
REAR SPRING FREE LENGTH (mm): 225
REAR SPRING I.D. (mm): ID70
EDFC COMPATIBILITY: COMPATIBLE
EDFC FITTING DETAIL:
EDFC MOTOR KIT 1: EDK05-12140
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT: EDK06-K4474
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: 5DR/4CYL./WHEEL P.C.D 100MM MODEL ONLY. RR: REINFORCED RUBBER MOUNT. PAY EXTRA ATTENTION TO THE ABS HARNESS TENSION AT THE FULL-BUMP, WHEN ADJUSTING THE RR CASE LENGTH. AVOID SETTING RR SPRING SEAT BELOW 160MM, TO PREVENT INTERFERENCE WITH TIRE.

FITMENT NOTES

MAKE: SAAB
MODEL: 9-2X
YEAR: 2005-2007
CHASSIS: GGA
TRIM: AERO
MOTOR SIZE: 2000
DRIVETRAIN: 4WD
