TEIN STREET BASIS Z Coilovers 2018+ HONDA ACCORD CV2 W/O TOURING 2000 FF

Basic Models for Street Use. Superior Quality Made Affordable!

Thread-Type Adjustable
Twin-Tube
Uses OE Mounts
Durable & Reliable

ADDITIONAL INFORMATION

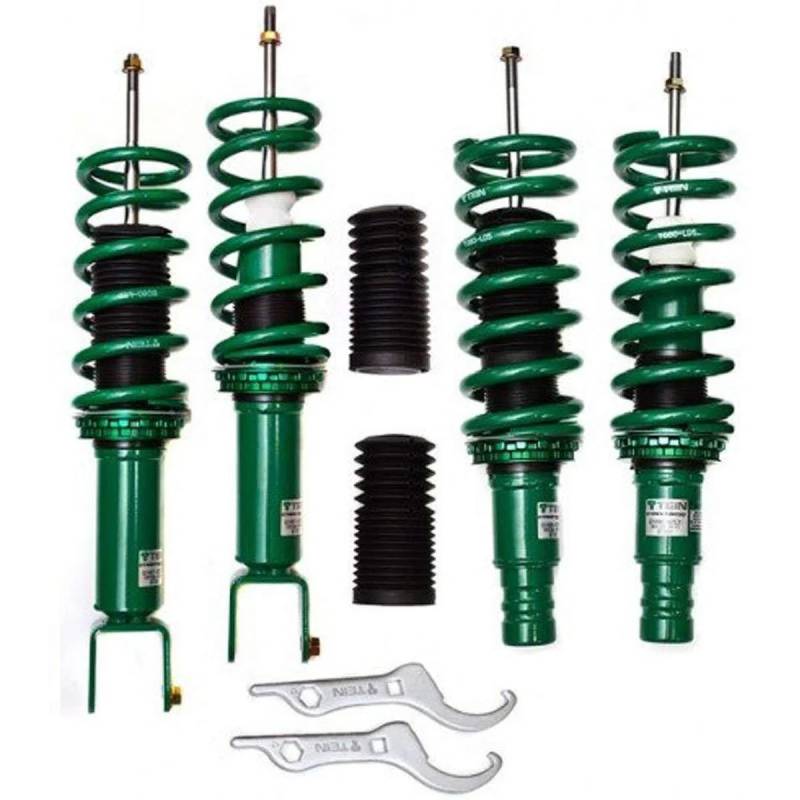

Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.

PRODUCT: STREET BASIS Z
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: N
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: N
FRONT UPPER MOUNT: OEM
FRONT RECOMMENDED RIDE HEIGHT (mm): -45
FRONT RECOMMENDED RIDE HEIGHT (inch): -1.8
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -95
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.7
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -40
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -1.6
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -55
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2.2
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -40
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.6
FRONT SPRING RATE (kgf/mm): 5
FRONT SPRING RATE (lbs/in): 280
FRONT SPRING SP PART#: S8HL0-13050-L-C
FRONT SPRING FREE LENGTH (mm): 215
FRONT SPRING I.D. (mm):
REAR DAMPING FORCE ADJUSTMENT: N
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: N
REAR UPPER MOUNT: OEM
REAR RECOMMENDED RIDE HEIGHT (mm): -40
REAR RECOMMENDED RIDE HEIGHT (inch): -1.6
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -80
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.1
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -30
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -1.2
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -50
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -30
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.2
REAR SPRING RATE (kgf/mm): 5
REAR SPRING RATE (lbs/in): 280
REAR SPRING SP PART#: S5HH7-13050-C
REAR SPRING FREE LENGTH (mm): 210
REAR SPRING I.D. (mm):
EDFC COMPATIBILITY:
EDFC FITTING DETAIL:
EDFC MOTOR KIT 1:
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT:
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: FOR TOURING MODEL, COILOVERS NOT COMPATIBLE WITH OEM ADAPTIVE DAMPER SYSTEM. WARNING ON DASH (!) WILL APPEAR, BUT DOES NOT AFFECT VEHICLE OPERATION.

FITMENT NOTES

MAKE: HONDA
MODEL: ACCORD
YEAR: 2018+
CHASSIS: CV2
TRIM: W/O TOURING
MOTOR SIZE: 2000
DRIVETRAIN: FF
