TEIN STREET BASIS Z Coilovers 2013-2017 HONDA ACCORD COUPE CT2 2DR/6CYL 3500 FF

Basic Models for Street Use. Superior Quality Made Affordable!

Thread-Type Adjustable
Twin-Tube
Uses OE Mounts
Durable & Reliable

ADDITIONAL INFORMATION

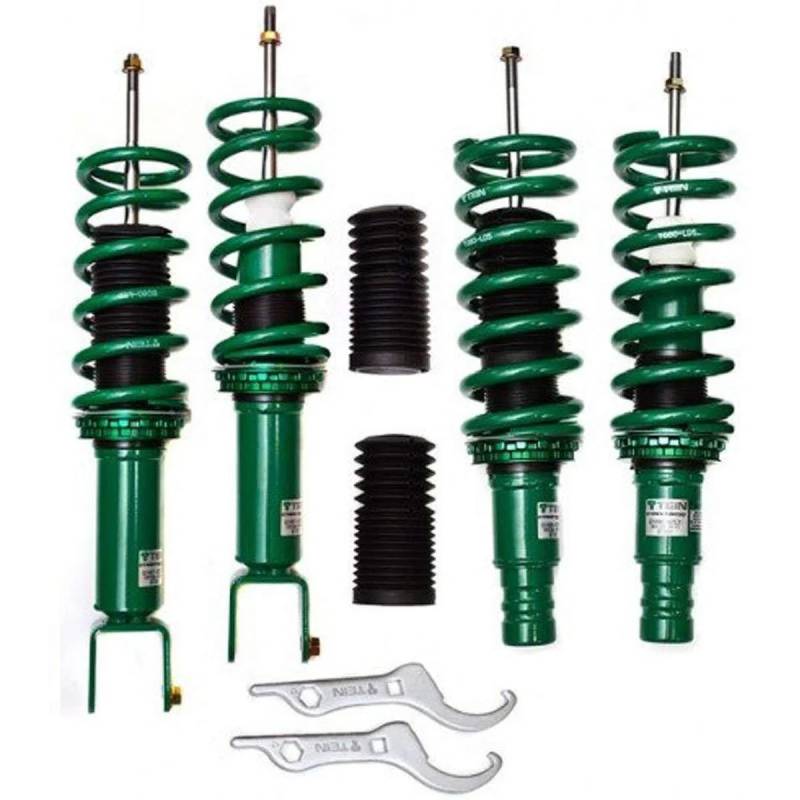

Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.

PRODUCT: STREET BASIS Z
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: N
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: N
FRONT UPPER MOUNT: OEM
FRONT RECOMMENDED RIDE HEIGHT (mm): -35
FRONT RECOMMENDED RIDE HEIGHT (inch): -1.4
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -74
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -2.9
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -30
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -1.2
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -45
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.8
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -30
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.2
FRONT SPRING RATE (kgf/mm): 6
FRONT SPRING RATE (lbs/in): 336
FRONT SPRING SP PART#: S8HD6-13060
FRONT SPRING FREE LENGTH (mm): 235
FRONT SPRING I.D. (mm):
REAR DAMPING FORCE ADJUSTMENT: N
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: N
REAR UPPER MOUNT: OEM
REAR RECOMMENDED RIDE HEIGHT (mm): -40
REAR RECOMMENDED RIDE HEIGHT (inch): -1.6
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -72
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -2.8
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -6
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -0.2
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -50
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -30
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.2
REAR SPRING RATE (kgf/mm): 4
REAR SPRING RATE (lbs/in): 224
REAR SPRING SP PART#: SG040-13250
REAR SPRING FREE LENGTH (mm): 250
REAR SPRING I.D. (mm): ID70 - ID90
EDFC COMPATIBILITY:
EDFC FITTING DETAIL:
EDFC MOTOR KIT 1:
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT:
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE:

FITMENT NOTES

MAKE: HONDA
MODEL: ACCORD COUPE
YEAR: 2013-2017
CHASSIS: CT2
TRIM: 2DR/6CYL
MOTOR SIZE: 3500
DRIVETRAIN: FF
